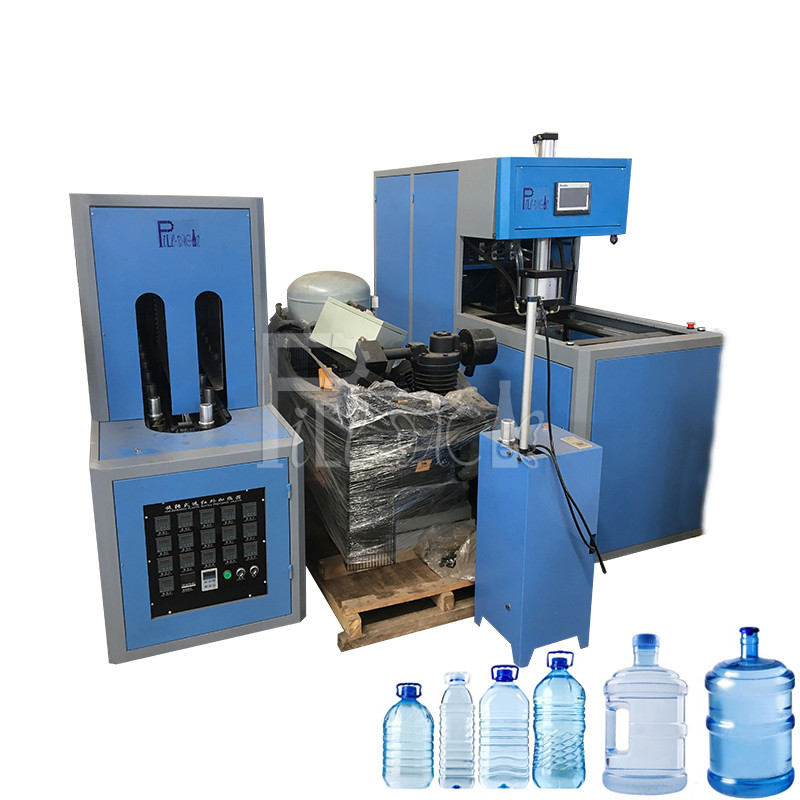

Semi Automatic Gallon Bottle Blow Molding Machine PET Plastic 20 Liter 1 Cavity

Minimum Order Quantity : 1 set Price : 10020USD
Packaging Details : Wooden case Delivery Time : 25-30 Working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20Sets per month
Place of Origin: Zhangjiagang, China Brand Name: Fillpack
Certification: CE/ISO9001 Model Number: FP-120

Detail Information

Volume: 10L-20L(3-5Gallon) Output: 150PCS/H
Max Bottle Length: 430mm Max Bottle Diameter: 300mm
Stretching Stroke: 450mm Clamping Force: 6000kg
Mould Opening Stroke: 360mm Main Machine: 2350*750*1900mm
Main Machine Weight: 1500Kg Power: 10KW
High Light:

Gallon Bottle Blow Molding Machine

,

PET 120 BPH Gallon Filling Line

,

20L 120 BPH Gallon Filling Line

Product Description

Semi-Automatic PET Plastic 5 Gallon 20 Liter 1 Cavity Pure Water Gallon Bottle Blow Molding Machine / Equipment / Device

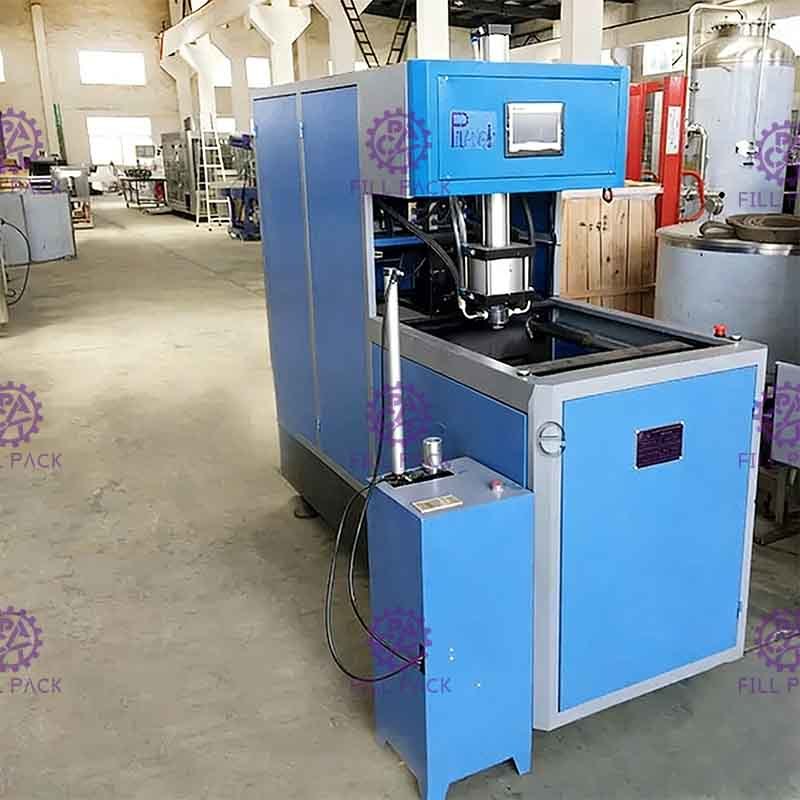

FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.
●Perfect function with economic investment.
●Small size and compact construction with no space waste.
●Easy to operate and maintain ,operation by one person .
●Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
●We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.



Settings:
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system, the operaton is easy controled .
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.


Features:
1. Conveying preforms automatically with conveyor.
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
3. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
4. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
5. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
6. Strong clamping force with high pressure and double crank links to lock the mold.
7. Two ways of operating: Automatic and manual.
8. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
9. Contamination is avoided for the bottle body.



Main parameter:



Model FP-120

Container

Product material PET
  Volume 10L-20L(3-5Gallon)
  Output 150PCS/H
  Max bottle length 430mm
  Max bottle diameter 300mm

Moulding

Stretching stroke 450mm
  Clamping force 6000kg
  Mould opening stroke 360mm

Machine size and weight

Main machine (L x W x H) 2350*750*1900mm
  Main machine weight 1500Kg

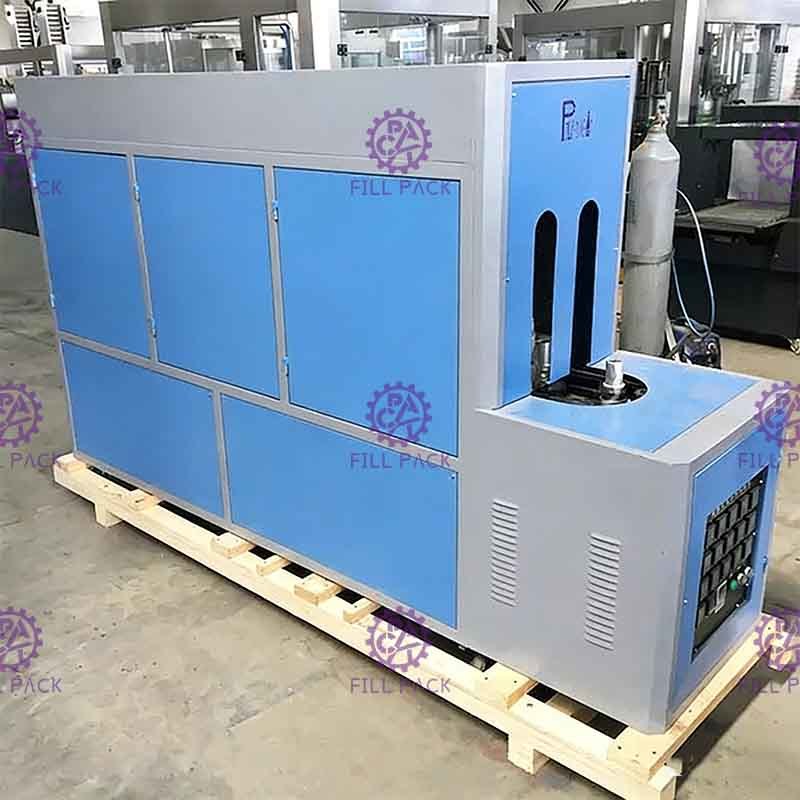

  Heater (L x W x H) 2670*680*1650mm
  Heater weight 380Kg
  Power 10kw



Spare part:

Items
Components
Model
1
Blow Moulding Machine
DY-120
2
Preform Unscramble
DY-120
3

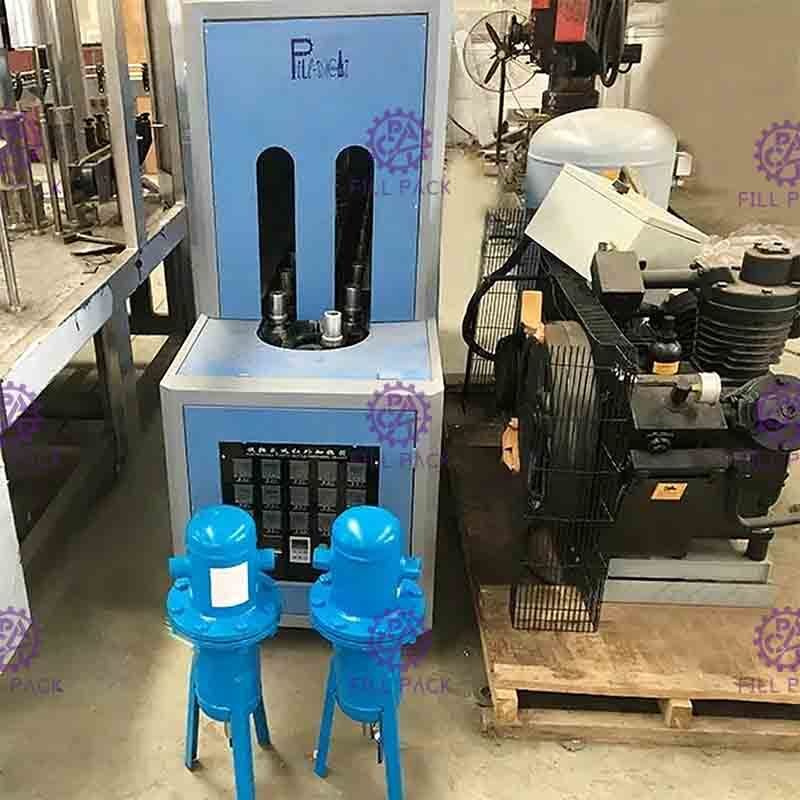

HP Air Compressor
3.6M3/min 30kg
4
LP Air Compressor
1.6M3/min 10kg
5
Air Dryer
2.0M3/min 30kg
6
Air Filters
2.0M3/min 30kg
7
Air Tank
0.6M3/min 30kg
8
Mould Chiller
5HP
9

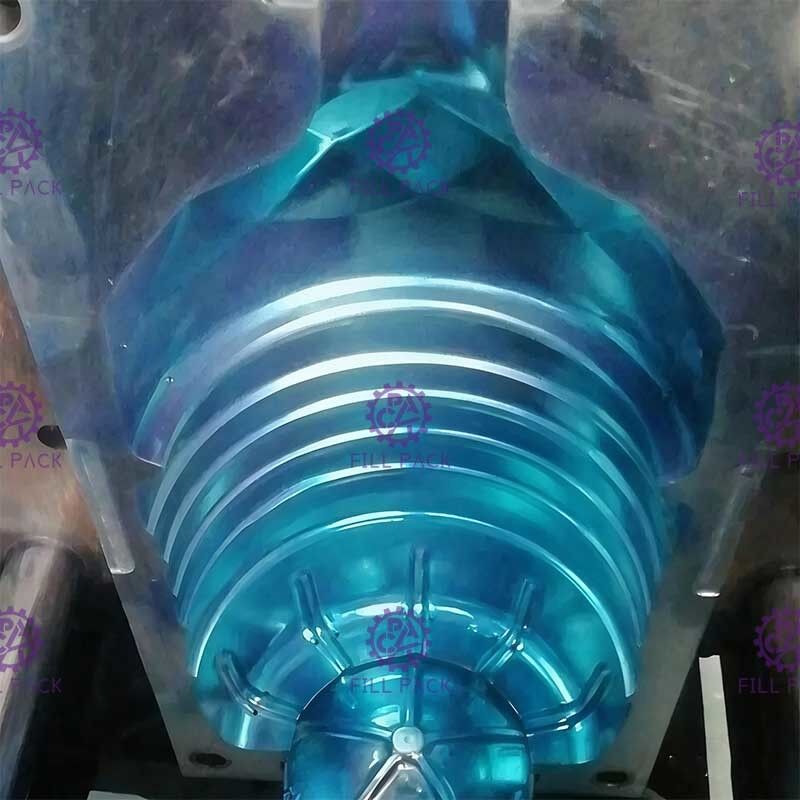

Blow Mould
20L
10
PLC
Delta / Taiwan
