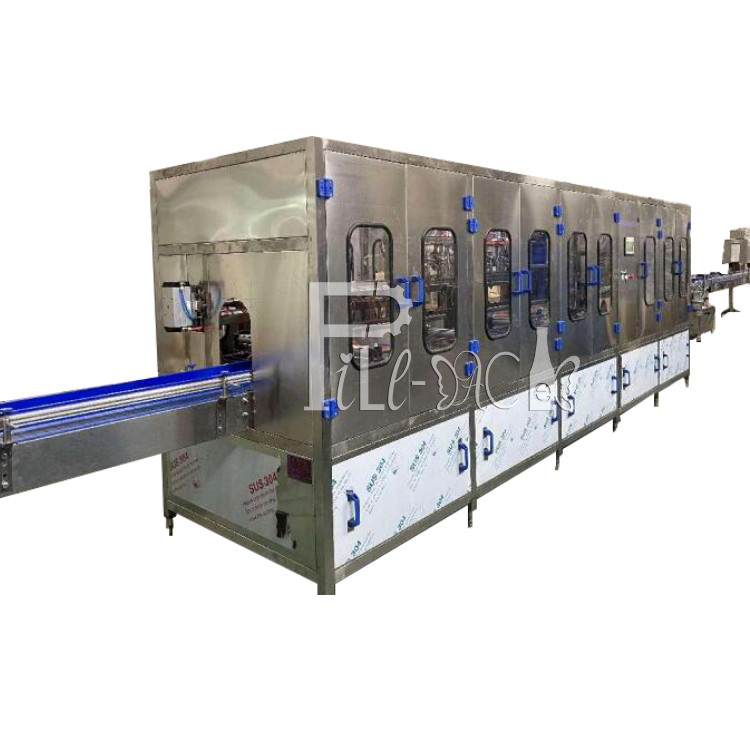

3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle

Minimum Order Quantity : 1 set Price : 14500USD
Packaging Details : Wooden case Delivery Time : 25-30 Working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20Sets per month
Place of Origin: Zhangjiagang, China Brand Name: Fillpack
Certification: CE/ISO9001 Model Number: CGF8-8-1

Detail Information

Bottle Volume: 3-10L Machinery Capacity: 0-900BPH
Rinsing Water Consumption: 400L Washing Pressure: 0.15Mpa
Filling Material: Pure Water Machine Correctness: 99.5%
Function: Full-automatic Rinsing-filling-capping Packaging Type: Plastic/PET Bottle
Dimension(L*W*H): 5800*750*2200mm Weight: 2500KG
High Light:

Rinsing Filling Capping Machine

,

900BPH Rinsing Filling Capping Machine

,

10L Rinsing Filling Capping Machine

Product Description

3 in 1 Monoblock A-Z 900BPH 3-10L Plastic Bottle Mineral Water Production Line Rinsing Filling Capping Machine Equipment

Working process:
The whole process is combined with 3 machines of different functions in one frame. General control of PLC, several photo electricity and several cylinders; Capacity: 800-900 bottles per hour-5L
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 0

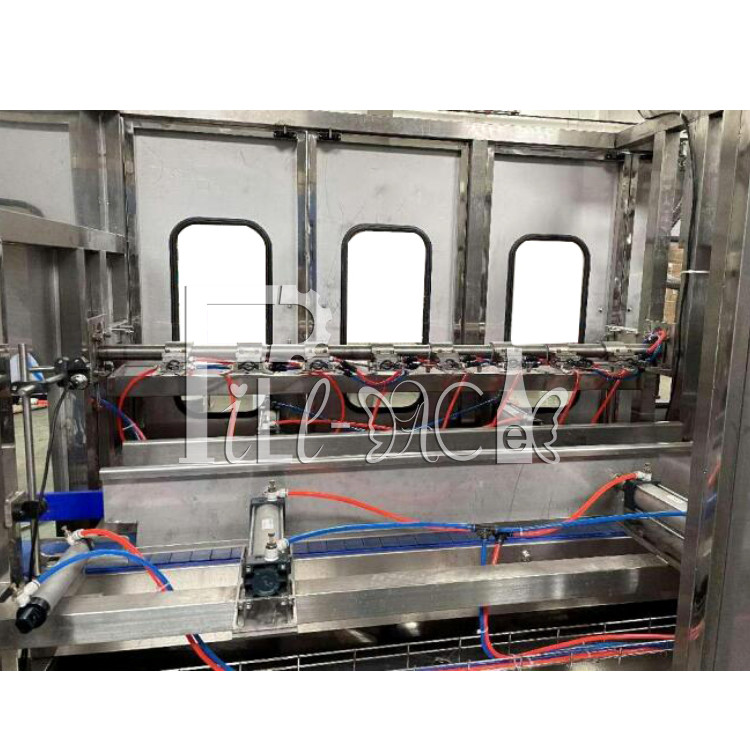

Washing Part

The empty bottles will be sent to washer through belt conveyor, 8 bottles per shift, each 8 bottles will be calculated and stopped by sensor-cylinder, and 8 bottles will be clamped by clamps at holding neck positions; The bottles will be reversed for bottle rinsing; Rinsing time and rinsing water capacity is adjustable; The washed bottles will be sent to filler by conveyor, Block cylinder block 8 bottles in filler conveyor; push cylinder will push bottles under filler, lift cylinder will take bottles to filler heads, open filling value, filling start. The filling is gravity filling; it is easy to control precision. After this process, the bottles will be returned back to conveyor by reverse repeat.
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 1

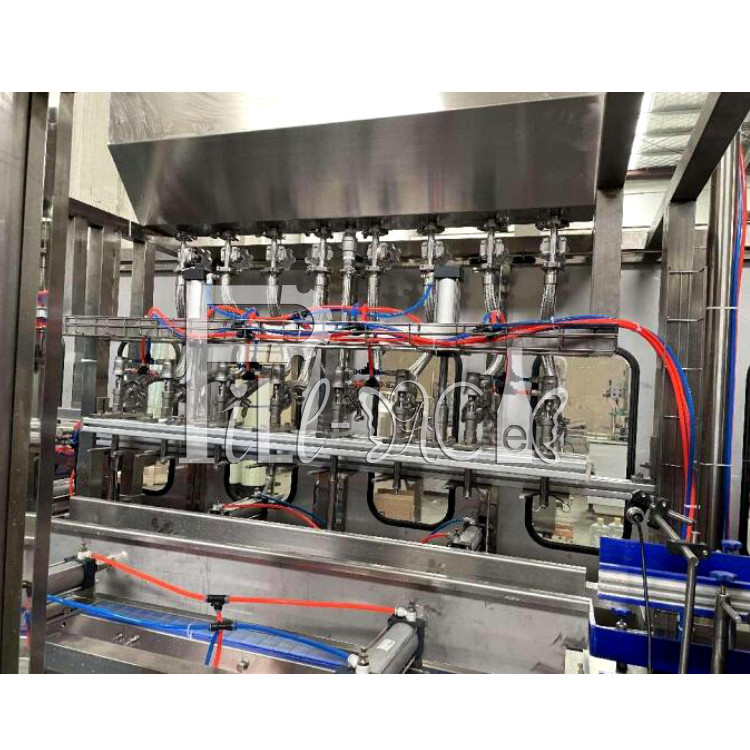

Filling Part

This machine is suitable for all kinds of easy flow liquid. Approach switch control plunger process to make sure filling correctness.
Applying with linear bottle in style, it is suitable for different bottle shape and size including alien shape bottles.
Principle of work is: Pump will take liquids to the machine, then will be devided into 8 parts connection to 8 nozzles, each nozzle with one pneumatic valve to control filling time and volume;

A, Advanced design
1, Easy for changing bottles within minutes;
2,Pneumatic valve on and off to control filling time and capacity, easy to adjust filling volume in touch screen
3, Strong point of the machine is the machine can fill liquid and also semi-liquid.
4, Capacity is selective;
B, Special filling method:
1, The filling volume is controlled by lever, is quite precise
2, When the liquid is easy foam type, the filling method can be customized, the filling head can go into bottle bottom to fill;
3, The machine is set with automatic absorbing system, the extra liquid will be absorbed into filling head, no liquid will be outside of bottle and in filing machine;
C, Precise control:
3.1, Precision:: ±0.3%
3.2, No bottle , no filling

3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 2

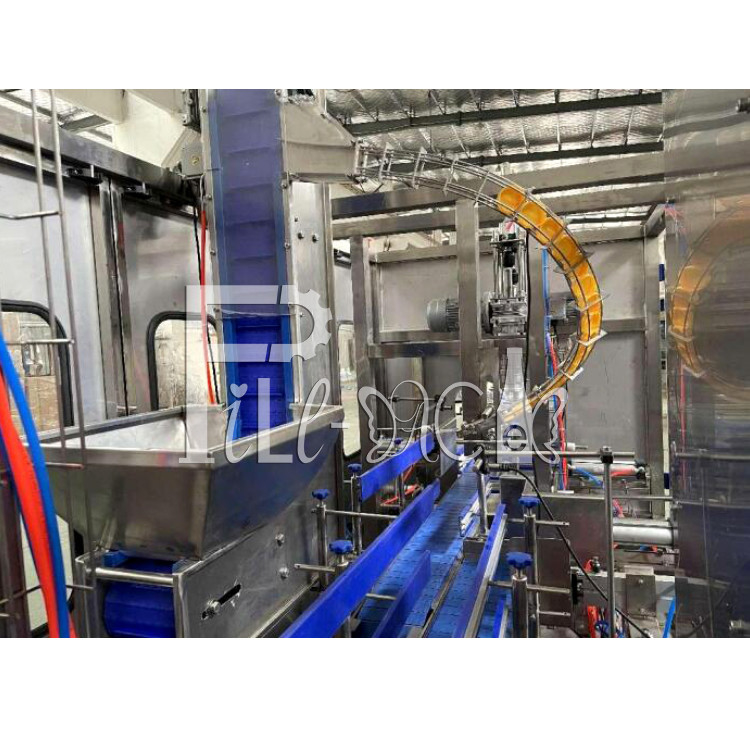

Capping part
Principle:
The machine is used for capping for plastic screw caps, it includes auto cap loading system and capping system 2 parts. Workers put bulk qty caps into cap lifter hopper, the cap lifter will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 5000pcs of caps each time, it will be convenient for adding caps often. The cap loading system is with cap anti-reverse device, the cap will be returned back to cap loader again when there is reverse cap.
When the bottle go through cap rail, the cap will be loaded onto bottle top, then capping head will go down to bottle mouth and finish capping.
The capping head is by Italian magnetic technique, it will protect caps not to be destroyed. The capping correctness will be 99%. The opposite caps will be deleted automatically. The capping head is an separate part. Change cap is only need to change capping head, easy for change and operation. The whole machine is made from SUS304, long shelf time.

Model
CGF8-8-1
Capacity (B/H)
800-900BPH(5L)
Filling range
3-10L
Bottle size
Diameter φ130-φ250mm,
Height 150-270mm
Washing Pressure
0.15mpa
Rinsing water consumption
400L
Machine correctness
99.5%
Air pressure
0.6-0.8MPa
Air consumption
0.3m3/min
Power(kw)
4KW
Weight(kg)
2500KG
Dimension(L*W*H)
5800*750*2200mm



Auxiliary:
6000L Water treatment system
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 3

Technical descriptions: The water treatment system is divided into 4 parts: Pre-treatment, RO unit, sterilization parts and matching parts. RO is the core of the system. Pre-treatment:
Raw water pump, Quartz sand filter, Active carbon filter, Sodium ion exchanger, Cartridge filter

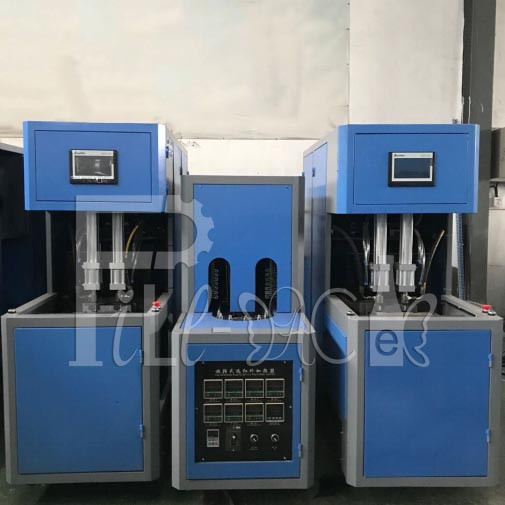

FP-300A-2 3-10L Bottle blow molding machine
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 4
Trait: FP-300A-2 blow molding machine is especially used to produce 5L - 10L bottles and is widely used to produce any shape of plastic from PET.
●Perfect function with economic investment.
●Small size and compact construction with no space waste.
●Easy to operate and maintain ,operation by one person .
●Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
●We can provide performs and various bottle& cap molds for 5L and 10L bottles to meet customer’s requirements.

Big Round bottle Single side adhesive labeling machine
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 5
The big bottle labeling machine is used for applying self-adhesive labels onto various round or square bottle. It can be pasted with a full -circumference label and a semi - circumferential label. The machine is made of 304 stainless steel and aluminum alloy, controlled by PLC program, equipped with photoelectric detection.It can be connected with the filling production line, greatly improve production efficiency.

Code printer
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 6
The code printer mainly codes the date.We have all kinds of code printing machine, like Hand-held ink jet printers,High resolution ink jet printers and laser code printers etc.
★How to choose the code printer? You need to tell us what kind of bottle you need to code on and how fast the printer you need, the speed is how many meters per minute.

Film shrinking packing machine
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 7
★The film shrink packing is used to pack scattered bottles into a whole group.We have Manual wrapping Shrink Packing Machine, Semi-Automatic PE Film Heat Shrink Packing Machine, L Type Automatic PE Film Heat Shrink Wrapping Machine,Linear type High Speed Automatic Shrink Packing and Color film orientation shrink packing machine.

Application:
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 8
3 In 1 Monoblock Mineral Water Rinsing Filling Capping Machine 900BPH 10L Plastic Bottle 9
