Automatic Plastic Bottle 3 Gallon 5 Gallon 20 Liter Bottled Water Capping Machine equipment For Gallon Filling Machine

Minimum Order Quantity : 1 set Price : 360USD
Packaging Details : Wooden case Delivery Time : 7-15 working
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20Sets per month
Place of Origin: Zhangjiagang, China Brand Name: Fillpack
Certification: CE/ISO9001 Model Number: YG-1

Detail Information

Machinery Capacity: 0-2000BPH Bottle Type: Gallon Bottle
Bottle Diameter: 50-450mm Adjustable Processing Type: Plastic Screw Cap Capping Machine
Voltage: 220V/380V 50Hz Dimension(L*W*H): 450x430x1460mm
Weight: 30KG Material: SUS304

Product Description

Automatic Plastic Bottle 3 Gallon 5 Gallon 20 Liter Bottled Water Capping Machine Equipment For Gallon Filling Machine



Principle:

The machine is used for capping for plastic screw caps, it includes auto cap loader and capping system 2 parts. Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping. The sealing head is by Italian magnetic technique, it will protect caps not to be destroyed. The sealing correctness will be 99%. The opposite caps will be deleted automatically. The sealing head is an separate part. Change cap is only need to change sealing head, easy for change and operation. The whole machine is made from SUS304, long shelf time.


Quick Detail :
Control manner: PLC control
Bottle type: Plastic bottle
Cap type: Plastic screw cap
Screw bottle inlet

- Automatic PLC control manner;
- Stainless steel and glass door outside to prevent dust;
- Screw bottle inlet to make sure the stability;



Specifications:

Model
YG-1
Production capacity
About 500-2000 bottles / hour
Applicable bottle height
50-450mm adjustable
Bottle diameter
10-70mm
Boundary dimension
450 × 430 × 1460mm
Net weight
30



Details:

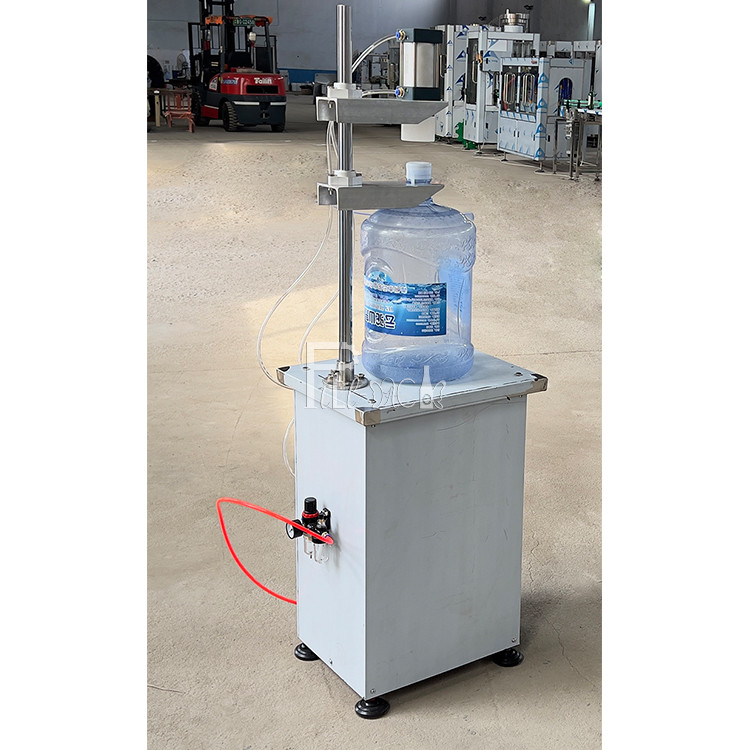

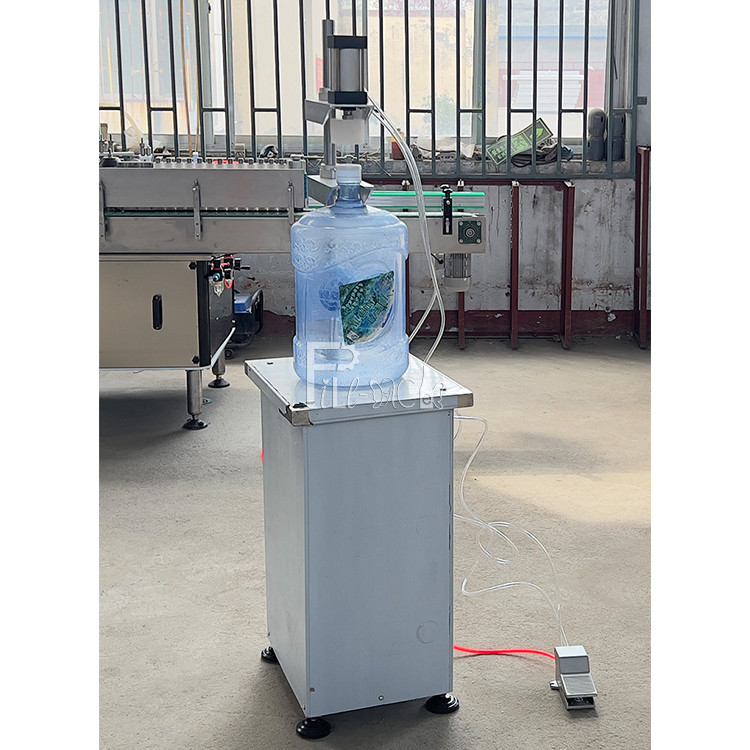

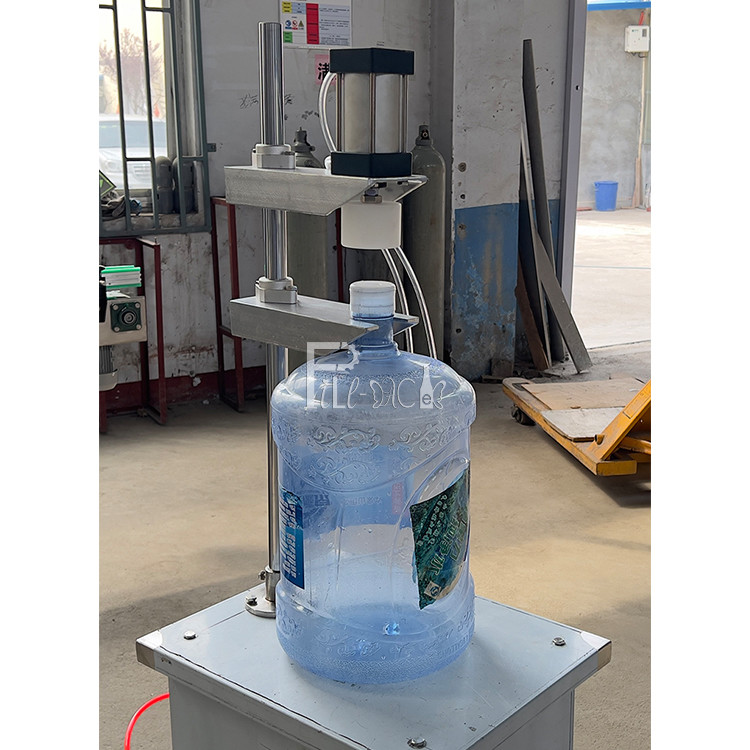

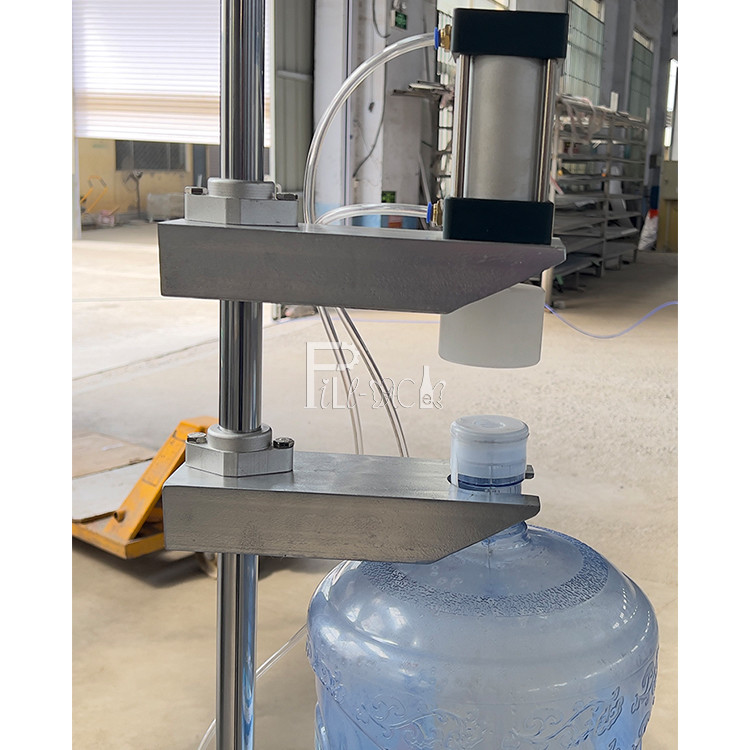

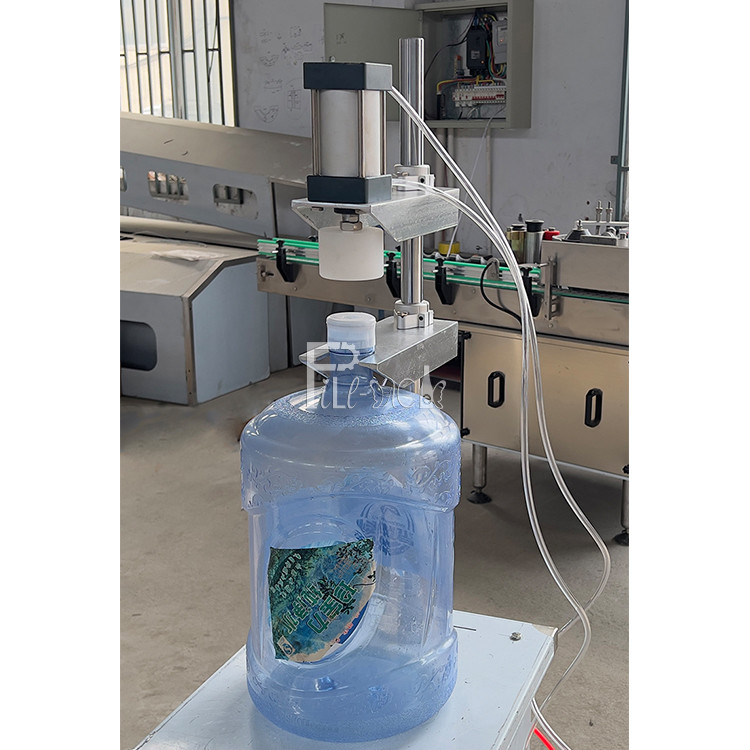

Automatic Plastic Bottle 3 Gallon 5 Gallon 20 Liter Bottled Water Capping Machine equipment For Gallon Filling Machine 0

Automatic Plastic Bottle 3 Gallon 5 Gallon 20 Liter Bottled Water Capping Machine equipment For Gallon Filling Machine 1
