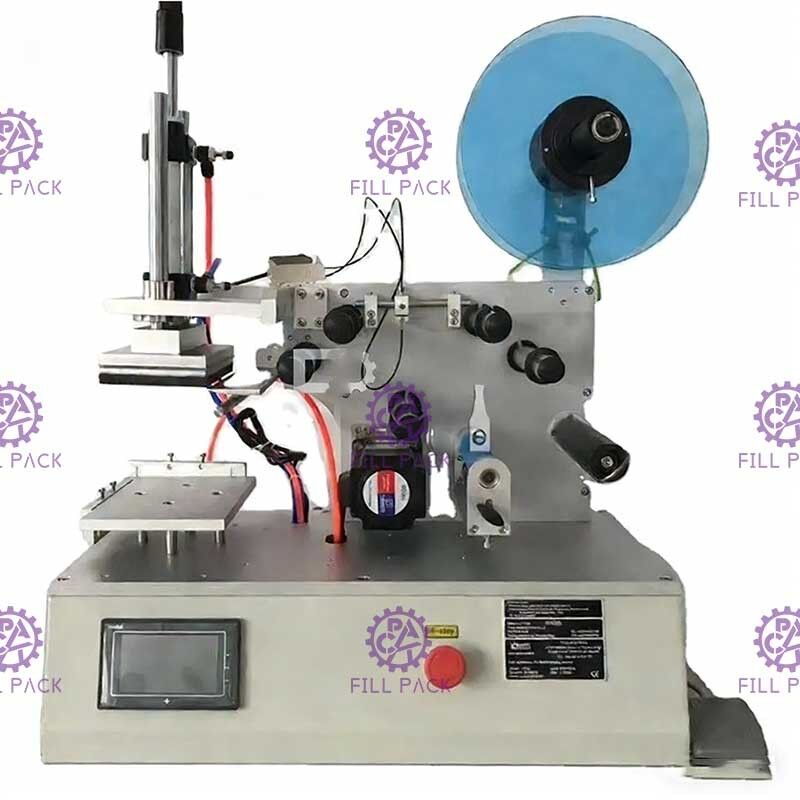

Semi-Automatic Square Flat Bottle Labeller Jars Single Side or Double Sides Adhesive Sticker Labeling Machine Equipment

Minimum Order Quantity : 1 set Price : 500USD
Packaging Details : Wooden case Delivery Time : 7-15 working
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20Sets per month
Place of Origin: Zhangjiagang, China Brand Name: Fillpack
Model Number: BZTB-S

Detail Information

Max Label Roll Out Diameter: ≤D250mm Label Roll Inner Diameter: ≥D75mm
Label Speed: 25-50Pcs/min Max Label Size: W110xL160mm
Applicable Items: Width:10mm-120mm Power: 120W
Machine Size: 650*450*700mm Machine Packing Size: 730*420*880mm
Machine Weight: 30KG Machine Packing Weight: 50KG

Product Description

Semi-Automatic Square Flat Bottle Jars Labeller Single Side or Double Sides Adhesive Sticker Labeling Machine Equipment



Working principle:

First put the product in place, then step on the foot switch, the motor pulls the label to the position of the vacuum suction cup, the suction cup sucks the label, and then the cylinder presses down the suction cup, and then the label is attached to the product.The flat labeling machine can complete the single side or front and back double side labeling, which is suitable for food, daily chemical, pharmaceutical and other light industry.



Features:

1. High labeling accuracy, accurate label peeling; motor-driven curved surface movement;

2. Wide range of application. Multi-standard flat bottles and labels can be adjusted freely. It is easy to switch products attach a label;

3. Single-sided labeling and double-sided labeling are available;

4. The operation is simple, the cylinder is used to push the labeling platform to move up and down, and the cylinder is automatically positioned. The process only requires the operator to help place the product;

5. High stability, using stepping motor and sensor, accurate product positioning, and can run continuously for a long time;



Parameters
Applicable bottle type
Square bottle
Label roll inner diameter
>φ75mm
Max label roll out diameter
≤φ250mm
Label speed
25-50Pcs/min
Max label size
W110xL160mm
Applicable Items
Width:10mm-120mm
Power
120W
Machine size
650*450*700mm
Machine packing size
730*420*880mm
Machine weight
30KG
Machine packing weight
50KG



Details:

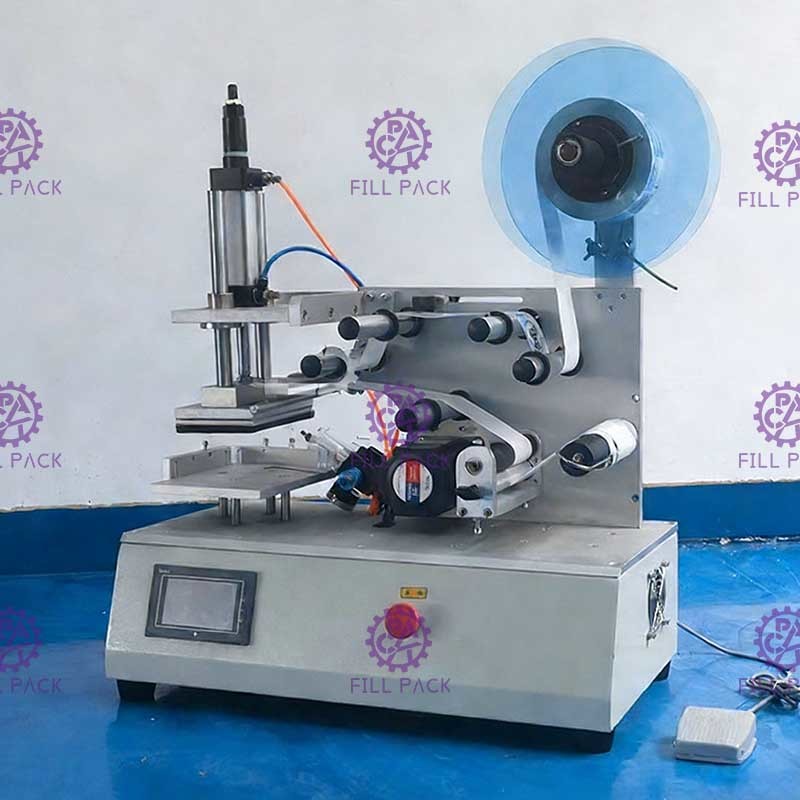

Semi-Automatic Square Flat Bottle Labeller Jars Single Side or Double Sides Adhesive Sticker Labeling Machine Equipment 0

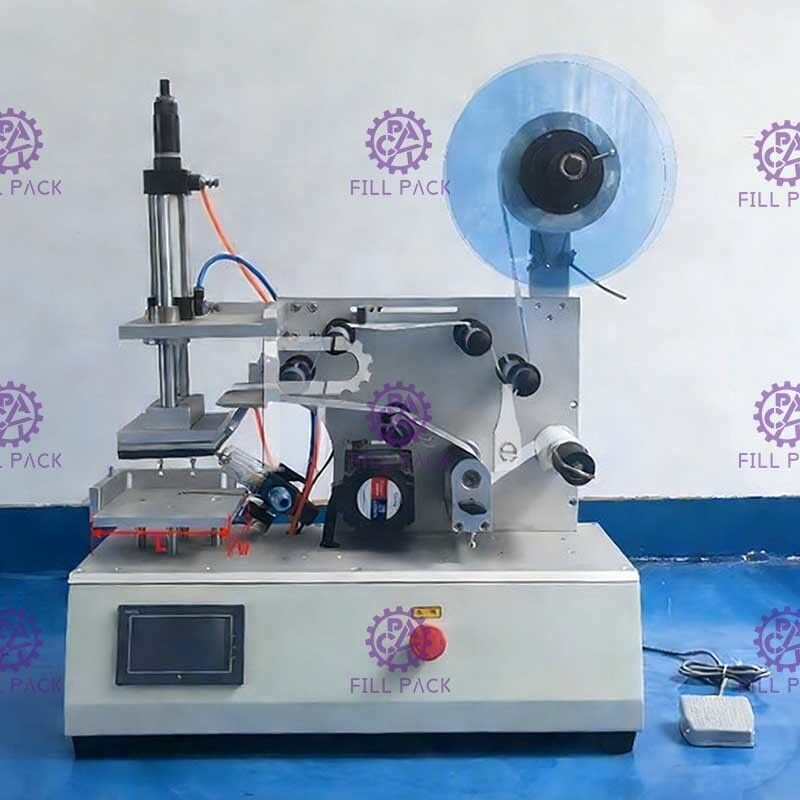

Semi-Automatic Square Flat Bottle Labeller Jars Single Side or Double Sides Adhesive Sticker Labeling Machine Equipment 1

Application:

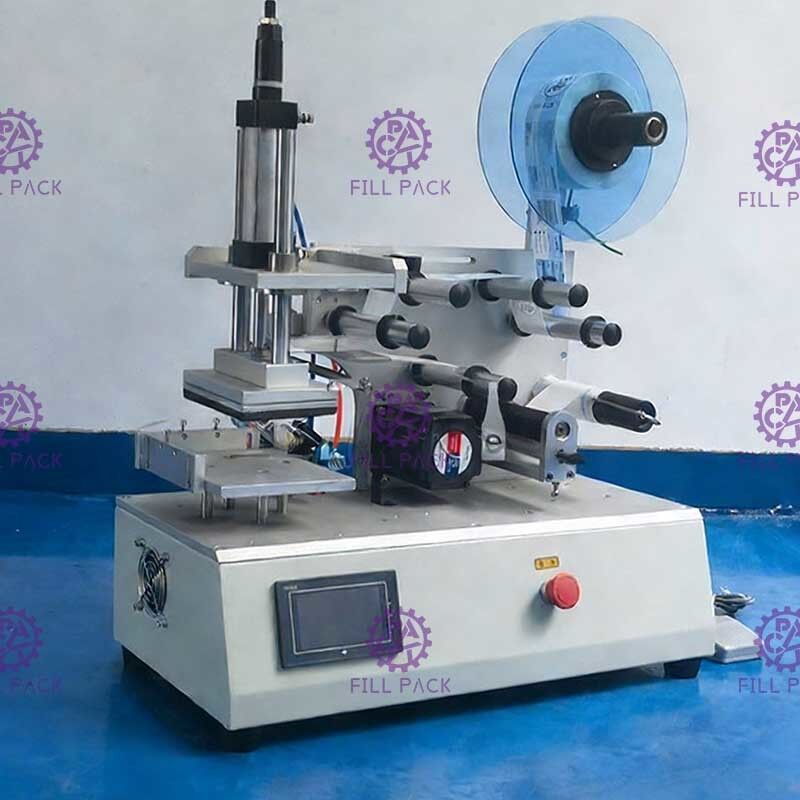

Semi-Automatic Square Flat Bottle Labeller Jars Single Side or Double Sides Adhesive Sticker Labeling Machine Equipment 2Semi-Automatic Square Flat Bottle Labeller Jars Single Side or Double Sides Adhesive Sticker Labeling Machine Equipment 3

Semi-Automatic Square Flat Bottle Labeller Jars Single Side or Double Sides Adhesive Sticker Labeling Machine Equipment 4Semi-Automatic Square Flat Bottle Labeller Jars Single Side or Double Sides Adhesive Sticker Labeling Machine Equipment 5
