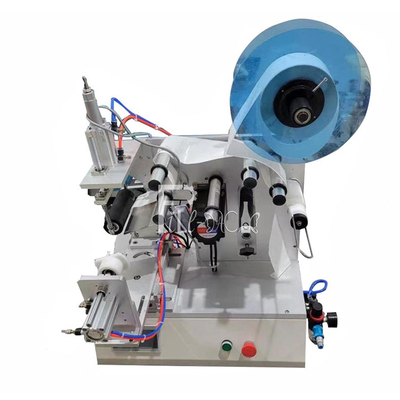

Semi-automatic Adhesive Sticker Labeling Machine Equipment Labeler for Square Bottle 3 sides or Round bottle circle

Minimum Order Quantity : 1 set Price : 2100USD
Packaging Details : Wooden case Delivery Time : 7-15 working
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20Sets per month
Place of Origin: Zhangjiagang, China Brand Name: Fillpack
Certification: CE/ISO9001 Model Number: BZTB-S3

Detail Information

Applicable Bottle Type: Round Or Square Bottle Label Width Range: 20-150mm
Label Length Range: 20-350mm Labeled Product Size Range: Minimum 30*20*20mm;Maximum 200*150*120mm
Production Capacity: 1200-1800BPH Power: 1.5KW
Machine Size: 780*420*600mm Machine Packing Size: 850*450*700cm

Product Description

Semi-automatic Adhesive Sticker Labeling Machine Equipment Labeler for Square Bottle 3 sides or Round bottle circle



Working principle:

The motor pulls the label, another motor drives the bottle to rotate, there is a cylinder with a roller on the machine, the cylinder is pressed down, and then the roller presses the label, the bottle rotates, drives the label, and completes the labeling.



Features:

1. It can be used for labeling square bottles, hexagonal bottles, and round bottles;

2. High stability, using PLC+ subdivision stepping motor to drive the label delivery, the label delivery is accurate, and the label tape bypasses the deviation correction mechanism to prevent the label from shifting left and right;

3. Label synchronous positioning system, ensure that tag location accuracy to 1 mm high positive and negative.

4. Equipped with adjustable height, labeling products with different heights, no need to replace accessories repeatedly.

5. The equipment occupies a small area and can be used in conjunction with the production line.



Parameters
Applicable bottle type
Round or square bottle
label width range
20-150mm
Label length range
20-350mm
Labeled product size range
Minimum 30*20*20mm;Maximum 200*150*120mm
Production capacity
1200-1800BPH
Power
1.5KW
Machine size
780*420*600mm
Machine packing size
850*450*700cm
Weight
50KG



Details:

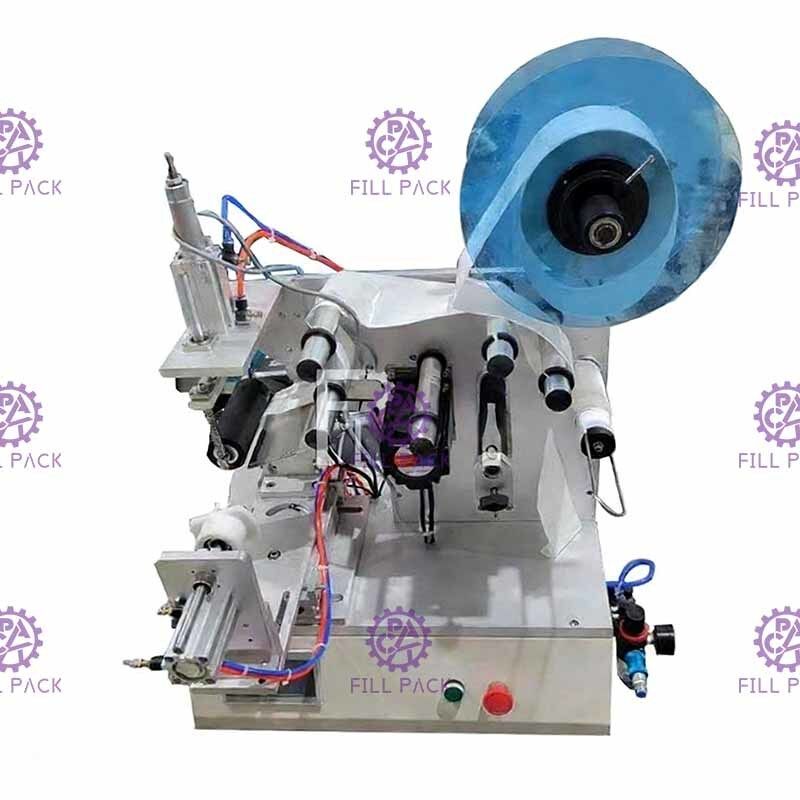

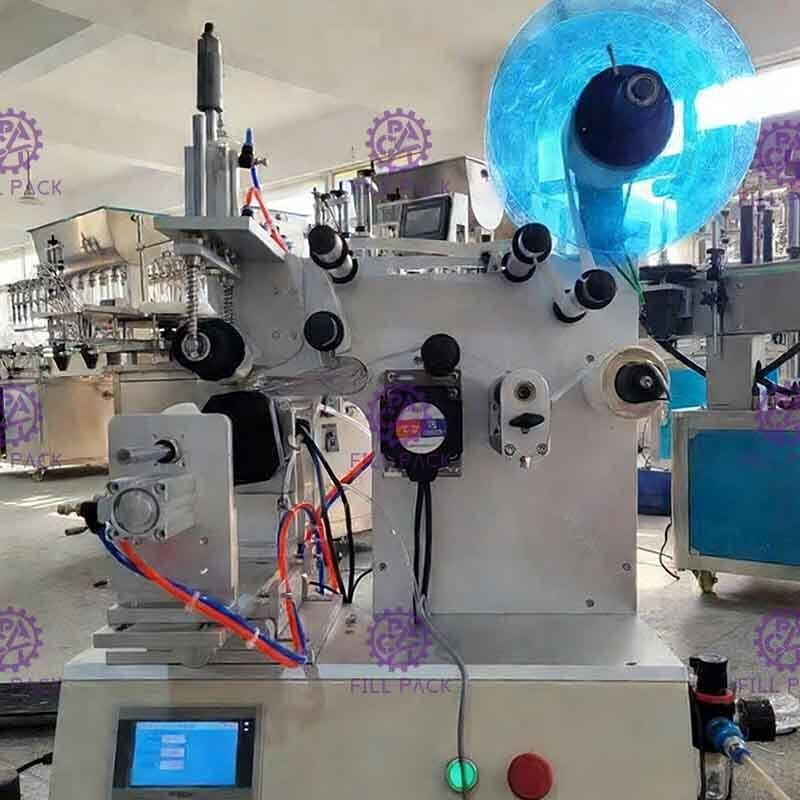

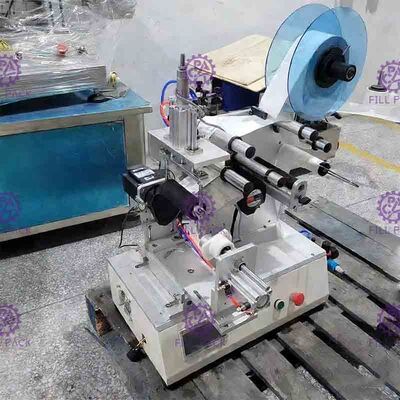

Semi-automatic Adhesive Sticker Labeling Machine Equipment Labeler for Square Bottle 3 sides or Round bottle circle 0

Semi-automatic Adhesive Sticker Labeling Machine Equipment Labeler for Square Bottle 3 sides or Round bottle circle 1



Applications:

Semi-automatic Adhesive Sticker Labeling Machine Equipment Labeler for Square Bottle 3 sides or Round bottle circle 2Semi-automatic Adhesive Sticker Labeling Machine Equipment Labeler for Square Bottle 3 sides or Round bottle circle 3

Semi-automatic Adhesive Sticker Labeling Machine Equipment Labeler for Square Bottle 3 sides or Round bottle circle 4Semi-automatic Adhesive Sticker Labeling Machine Equipment Labeler for Square Bottle 3 sides or Round bottle circle 5
