Product Details:
|
|
| Place of Origin: | ZhangJiaGang JiangSu China |
|---|---|
| Brand Name: | FILL PACK |
| Certification: | CE, ISO9001 |
| Model Number: | QGF-450 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | USD $6000-$8000/set |
| Packaging Details: | wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Bottle Volume: | 3 Gallon-5 Gallon | Capacity: | 450bottles Per Hour |
|---|---|---|---|
| Type: | Filling Machine | After-sales Service Provided: | Overseas Service Center Available |
| Dimension(L*W*H): | 3600*2000*1800mm | Processing Types: | Normal Pressure Filling |
| Condition: | New | Warranty: | 1 Year |
| Highlight: | 3 in 1 450BPH Gallon Filling Line,450BPH mineral water making machine,450BPH auto water filling machine |
||
Product Description

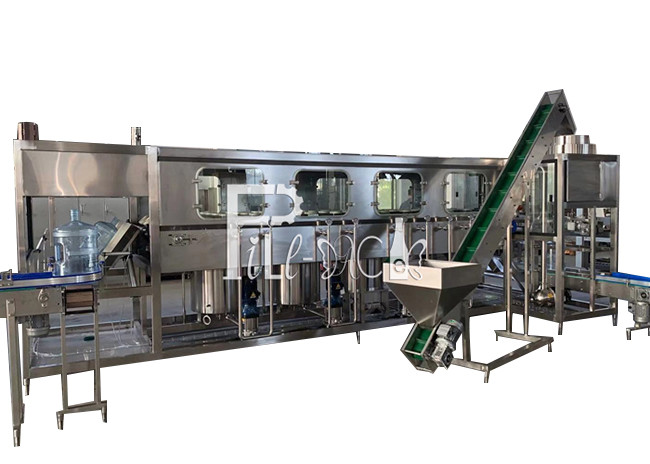

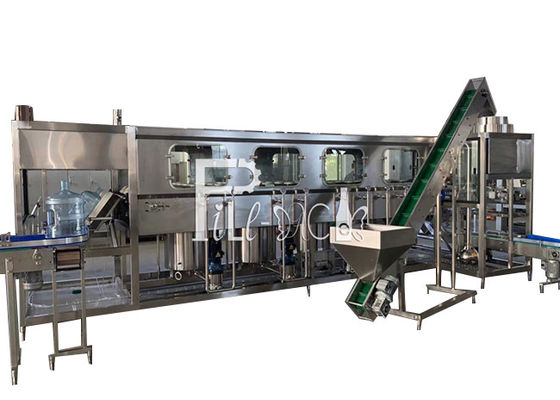

Description of Automatic 3 in 1 type 5 Gallon bottle filling line for Mineral Water
1. Full-automatic PLC control, full-automatic working, filling level, filling time adjustable.
2. Food Class 304 or 316L stainless steel contact parts.
3. All 304 stainless steel construction.
4. Food Class PVC, 304S. S. Or 316L S. S. Pipeline, depends on the models.
5. Full-automatic PLC control, filling level, filling time adjustable.
6. 2 to 12 internal bottles or external bottle washing stops with circular hot. Alkali, detergent, ozone, tap, pure water, depends on the models.
7. Linear cylinder-pushed filling style, supper high precision, ( when the capacity up to 800BPH, adopt the rotary filling system ).
8. Automatic cylinder-pushed capper system.
9. Automatic cylinder-pushed empty bottles loading system to load the empty to the Washer Filler Capper full-automatically.

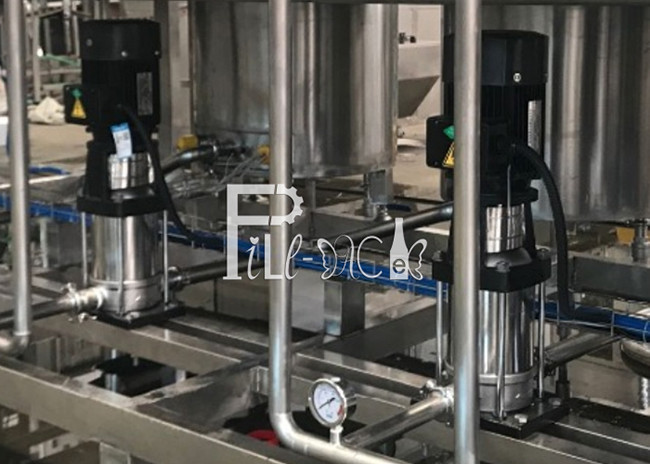

10. Food Class stainless steel washing pumps and filling pumps.
11. Food Class Fiber Glass clear windows.
12. No bottle no washing, no bottles no filling, no bottle no capping.
Equipment list of 5 Gallon bottle filling line:
| 1.1 | Automatic De-capper | BG-1 | 600*600*2000 | 1set |
| 1.2 | Rotary external washer | RXT-3 | 1800*1550*1750 | 1set |
| 1.3 | L type Washer/Filler/Capper with auto bottle loading | WFC-450H | 4600*2000*1800 | 1set |
| 1.4 | Heat Shrinking Machine | / | 800*600*1200 | 1set |
| 1.5 | Checking Light | CL-1 | 1000*100*450 | 1pc |
| 1.6 | Conveyor Belt with Motor | / | 10m+2 motors | 1set |
| 1.7 | Code printer | OH-338 | / | 1set |

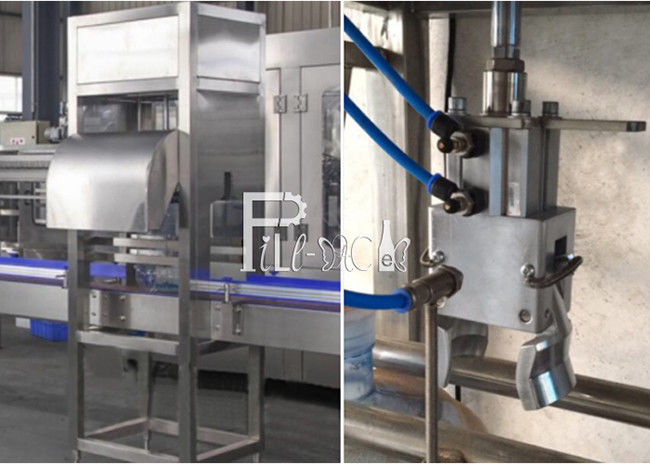

1, Automatic De-capper:
With two de-capping heads
2, Rotary external washer

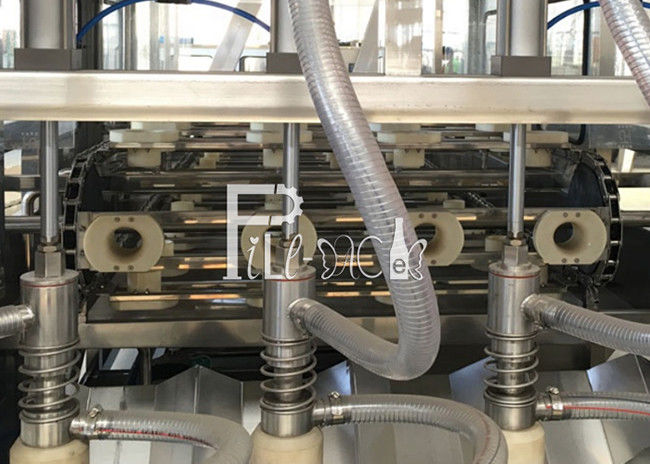

3, Monoblock gallon rinser-filler-capper
Parameters of 5 Gallon bottle filling line:
Material: SUS304
Power: 5KW
Dimension: 3600*2000*1800mm
Weight: 800kg
4, Steam shrink Machine
5, Ink jet code printer
Featrues of 5 Gallon bottle filling line
1) It has indicator light for Photoelectric sensor, synchronizer and inkjet printing to show whether they are working normally.
2) Flash spray. Nozzle will not be blocked even standby for a long time.
3) Tt can be entered graphic of arbitrary length, instead of fixed graphic .
4) The machine can be directly edited printing information without computer. It has humanized design and fool type operation.
5) It has USB ports, which allows to access designed trademark from computer.
6) The two circuits for feeding ink are merged, which saves installation space of the equipment.
