3400*780*1950mm SUS304 Gallon Filling Machine

Minimum Order Quantity : 1 set Price : USD $4850/set
Packaging Details : wooden case Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-200

Detail Information

Bottle Size: 3~5 Gallon Bottle Capacity: 200BPH
Control: PLC Material: Stainless Steel 304
Dimension(L*W*H): 3400*780*1950 Automatic Grade: Automatic
Label Shrink Tunnel: 600*600*1000 Solid Ink Roll Coding Machine: 440*345*300
High Light:

SUS304 3 Gallon Filling Machine


200BPH 5 gallon filling machine

Product Description

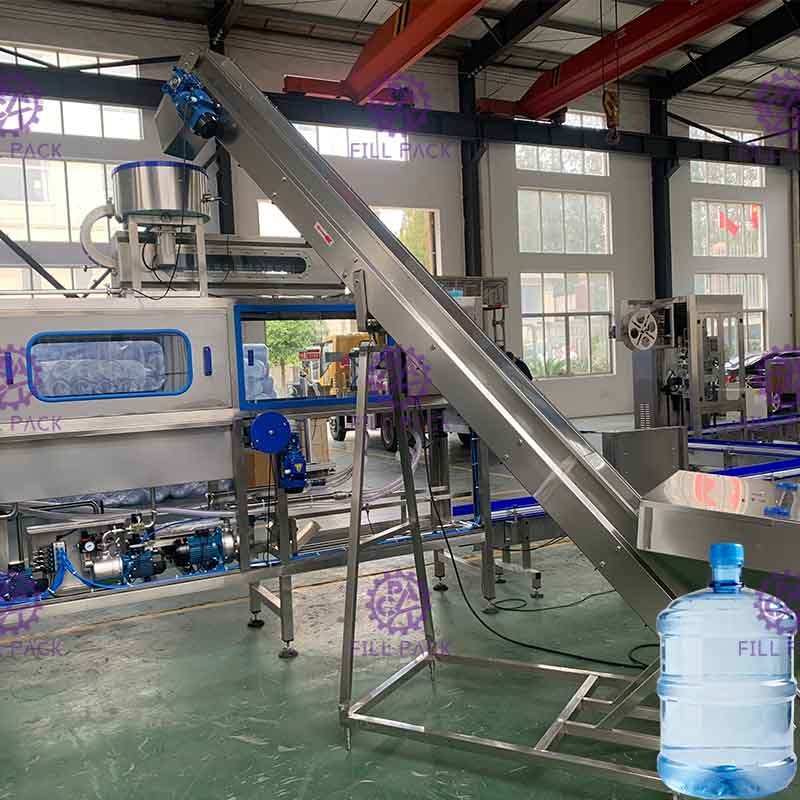

200BPH Bucket Water Filling Line For 3 / 5 Gallon Bottle / Barrel


Equipment list of Bucket Water filling line:


Semi-auto de-capper and washer




Monoblock rinser-filler-capper with full SUS304



1.3 Roller conveyor / 2M 1set
1.4 Checking Light CL-1 1000*100*450 1pc

Label shrink tunnel

/ 600*600*1000 1set

Solid Ink Roll Coding Machine



The whole line of Bucket Water filling line:

The whole line includes Semi-auto de-capper and washer, Monoblock rinser-filler-capper,Roller conveyor, Label shrink tunnel, Checking Light,Solid Ink Roll Coding Machine


1, Semi-auto de-capper and washer

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client’s needing.


Power: 1.12KW without heating, 2.12KW with heating

Plate thickness: 1MM

Machine cube size: 25*25MM

Cube thickness: 1.5CM

3400*780*1950mm SUS304 Gallon Filling Machine 0

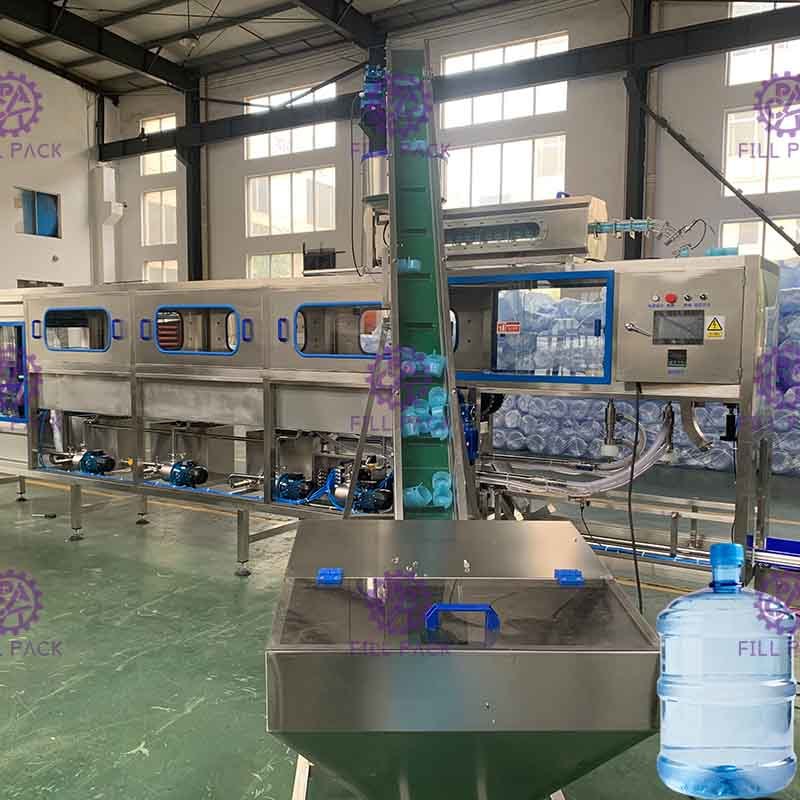

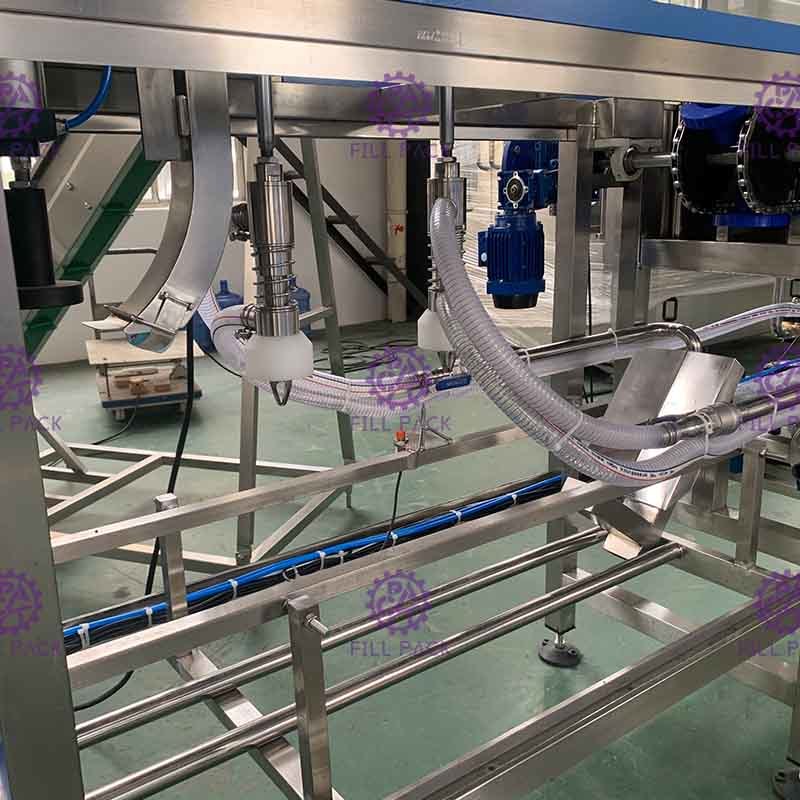

2, Monoblock rinser-filler-capper with full SUS304


The machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.

The machine set up do not need plug floor screw,after case taking off,set the machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power , air power.



Cylinder: Air tech-Taiwan

Magnetic valve: Air tech-Taiwan

Rising pump-filling pump: Nanfang

Motor: TWT Taiwan

PLC: Mitsubishi Japanse

Power: 5.3KW

Dimension: 3300*780*1740mm

Weight: 320kg

3, Roller conveyor

4, Checking light

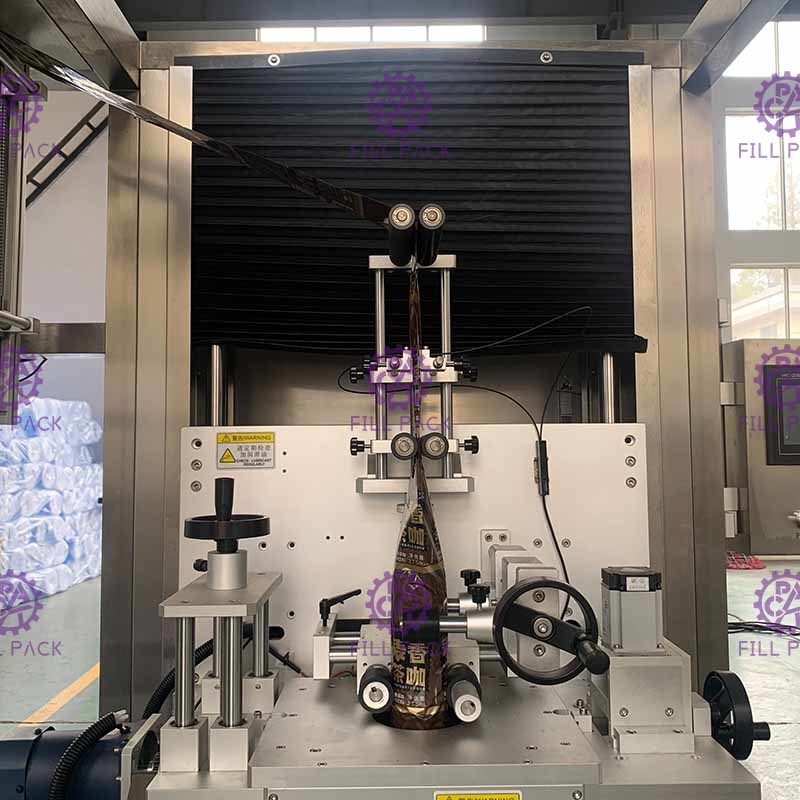

5, Label shrink tunnel

3400*780*1950mm SUS304 Gallon Filling Machine 1

1.6, Solid Ink Roll Coding Machine


The use of photoelectric integration technology, advanced solid ink wheel, has the excellent performance of instant printing and instant dry, which is not easy to erase. The machine is advanced in design, precise in manufacturing, stable in operation, longitudinally controlled in position by electronic control, arbitrarily adjustable, photoelectrically controlled printing actions and counts, and the number of printable sheets can be set.

Applicable to the surface indentation or color printing production date, product batch number, expiration date, inspection qualification, etc. of paper boxes, labels, tags, certifications, etc., with automatic sorting, automatic counting, random positioning, preset printing times, Indentation is clear, color is optional, printing speed is fast, instantaneous printing instant dry, loss and other advantages.
