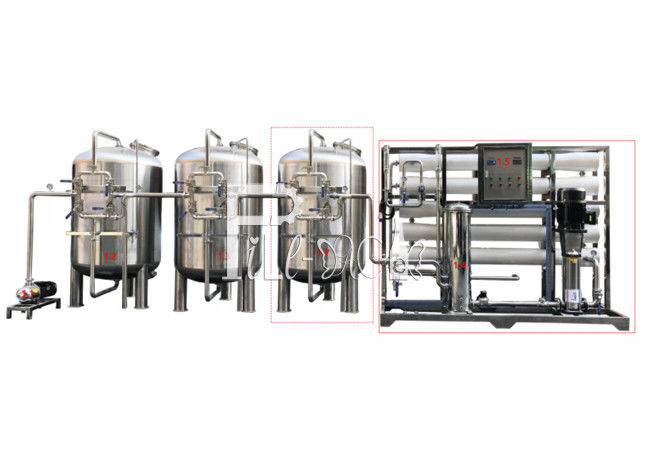

Dow Membrane Stainless Steel 304 10000 LPH RO Plant

Minimum Order Quantity : 1 set/pcs Price : USD$18,650.00-USD$22,000.00
Packaging Details : Wooden case pacakge Delivery Time : 20-25 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: RO-10000

Detail Information

Framework Material: Stainless Steel 304 Capacity: 10000LPH
Application: Drinking Water Control: PLC Control
Desalination Rate: ≥97% Product Name: Reverse Osmosis Water Treatment Machine
Condition: New
High Light:

10TPH RO Water Treatment System

,

10TPH ro treatment plant

,

10000 lph ro plant

Product Description

10TPH RO Water Filtration System For Pure Drinking Water With Dow Membrane



Product Description of 10TPH RO Water Filtration System:

RO device is raw water after fine granular activated carbon filter, activated carbon filter filter, compression, again through the pump pressure can use aperture for 1/10,000 mu m (equivalent to escherichia coli size 1/6000, virus 1/3) reverse osmosis membrane (RO film), the relatively high concentrations of water into water, and will be low concentration of industrial pollutants, heavy metal, bacteria, viruses such as large intermingled with water impurities all segregation, achieve drinking provisions physiochemical index and hygiene standards, output to qing dynasty to pure water, it is human body moisture of seasonable compensatory quality of best choice. Because RO reverse osmosis technology production water is dramatically is currently humans master all the water making technology, cleanliness the tallest of almost 100%, so people say the water production machines for reverse osmosis pure water.



Features of 10TPH RO Water Filtration System:

1. We can design and produce the water treatment system according to customer’s raw water quality report or customer requirement with World health organization living instant-drinking water standard.
2. All the valves, pipeline will be with stainless steel SUS304 , with compact structure.
3. All the machine will be PLC controlled, can be operated automatically, and also have installed with conductivity meter monitor, pressure gauge and flow meter. All the parameter in the machine can be monitored easily.



Process of 10TPH RO Water Filtration System:

S/N
Items
Function
Remark
1
Raw water tank
Store water, buffering pressure, overcome instability of supplying water by pipe
Customer provide for themselves
2
Raw water pump
Provide needed pressure for every pretreatment filter
CNP pumps or Grundfos pumps
3
Mechanical filter /quartz sand filter / sand filter
get rid of turbidity, suspended mater, organic matter, colloid ect.
fiber glass /stainless steel vessel
4
Activated carbon filter
remove color, free chloride, organic matter, harmful matter and so on.
fiber glass /stainless steel vessel
5
Security filter/ pp filter/ PP sediment filter
prevent large particles, bacteria, viruses into RO membrane

6
High pressure pump
provide high pressure to RO membrane(at least 2.0Mpa)
CNP pumps or Grundfos pumps
7
RO(reverse osmosis) system
remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
USA Filmtec Dow
8
UV sterilizer
kill bacteria in pure water
Optional



Specifications of 10TPH RO Water Filtration System:

Model RO-10000L
Production capacity 10000L/Hr(can be customized)
6Power 6.0Kw
Power supply 3P 380V 50Hz
Reverse osmosis (RO)membrane USA DOW/VONTRON
Membrane  8040
Raw water pump CNP
Security filter 5um PP filter
High pressure pump CNP



PLC Control Panel Image:

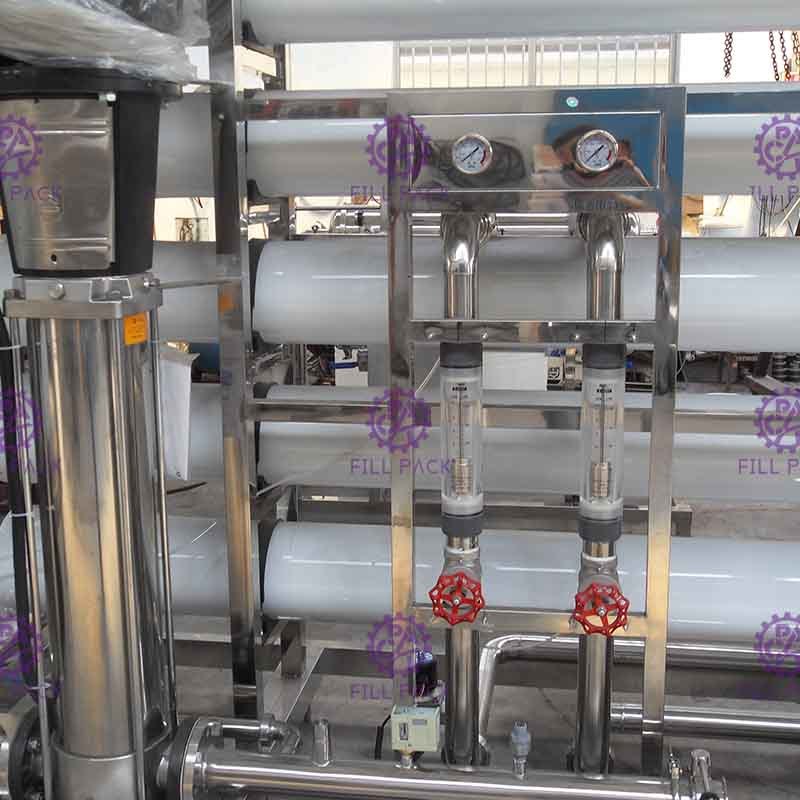

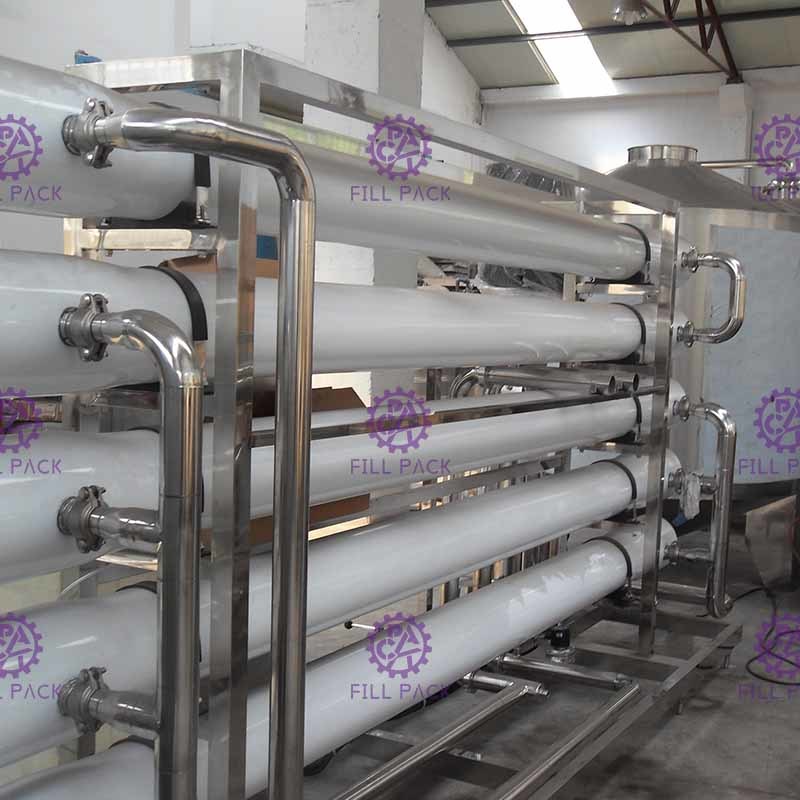

Dow Membrane Stainless Steel 304 10000 LPH RO Plant 0

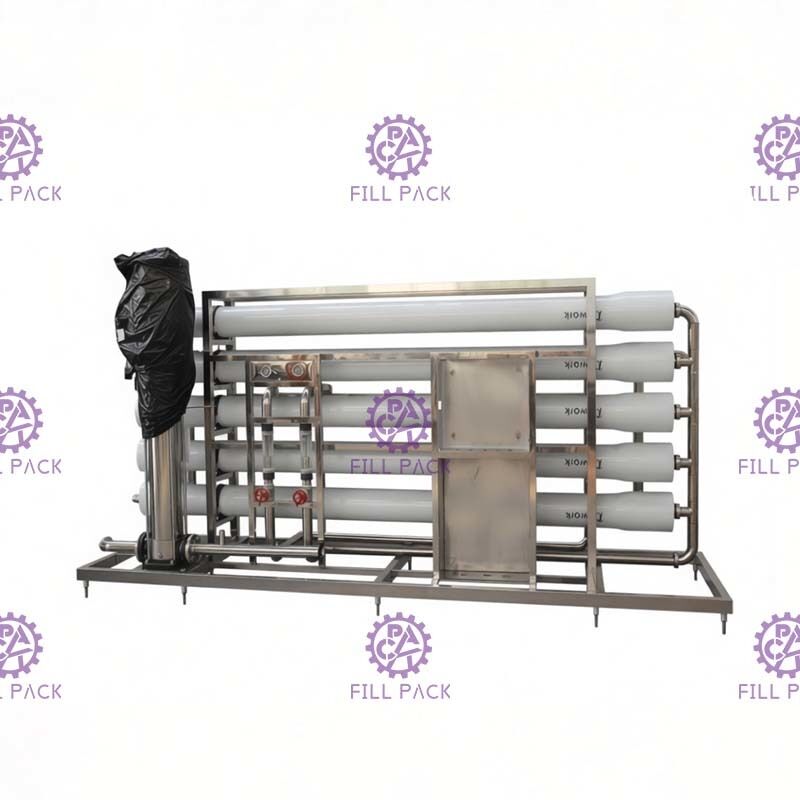

Dow Membrane Stainless Steel 304 10000 LPH RO Plant 1
