18.9 Liter Jar Filling Machine

Product Details:
Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE, ISO9001
Model Number: QGF600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD $18,000-$20,000/set
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month

Detail Information

Bottle Size: 3~5 Gallon PET Bottle Capacity: 600BPH
Function: Washing,Filling,Capping Voltage: 380V 50/60HZ
Dimension(L*W*H): 5000*2300*1800mm Material: Stanless Steel 304/316
Condition: New Warranty: 1 Year
High Light:

18.9 liter jar filling machine


18.9 liter 600 BPH Gallon Filling Line

Product Description

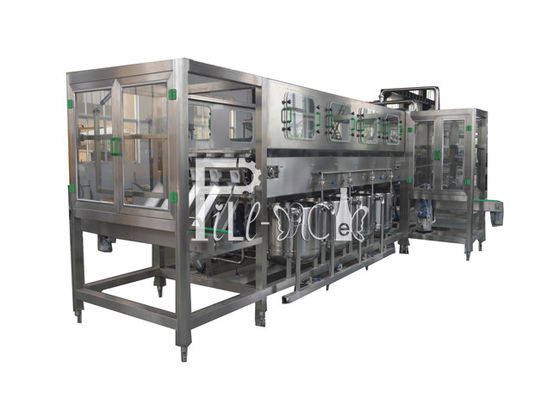

Description of 600BPH Jar / Barrel filling equipment for 18.9 liters bottle


The Barrel filling equipment is compactly conformed to small occupation of land and high efficiency and reliable and stable quality and high automaiton. Only two operators are needed for the whole line,which is completely controlled by electrical devices.

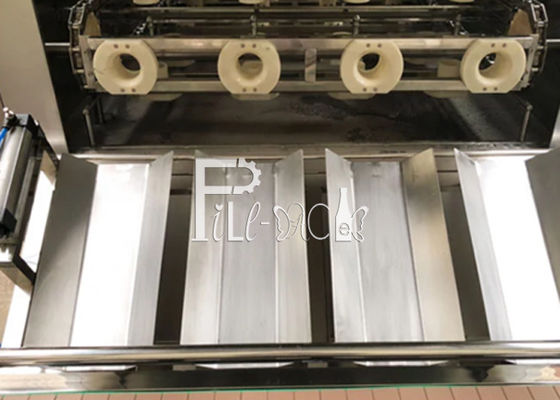

The rinsing part:
The rinsing part has eight 8 processes: the first washing steps is hot water washing,the second washing step is drop off water, the third washing step is sterile water, fourth washing step is drop off water ,fifth washing step is disinfection solution washing; sixth washing step is drop off water, the last two steps are pure water washing. After rinsing, it will have ten seconds to drop away water.


Except the model 600BPH Barrel filling equipment, we aslo have other capacities.

Model QGF-100 QGF-200 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
Filling heads 1 2 2 3 4 6 12
Volume 3&5 Gallon
Barrel size Φ270*490mm
Capacity(b/h) 60-100 100-240 250-300 400-450 600-800 800-900 1000-1200
Air pressure(MPa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Air consumption(m³/min) 0.37 0.37 0.6 0.8 1 1.5 1.8
Motor power(kw) 1.38 1.75 3.8 3.8 7.5 9.75 13.5
Rated power(kw) 1.38 1.75 3.8 3.8 7.5 9.75 13.5


Our Barrel filling equipment can treat many kinds of 3-5 gallon bottles.
18.9 Liter Jar Filling Machine 0

Our Service
1.Sample service
We can send you a working video of the machine.
You are very welcome to visit our company and inspect the operation of the machine on site. We will send people to the airport to pick you up.

2. Customized service
We can customize the machine according to all the customers(such as material, power, filling type, bottle size, and so on), at the same time, our engineers will also give professional advice to help customers better establish the ideal factory.
