200BPH 5 Gallon Filling Machine With De-Capper Washer

Minimum Order Quantity : 1 set/pcs Price : USD$4,850.00-USD$6,000.00
Packaging Details : Wooden case pacakge Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: QGF-200

Detail Information

Capacity: 200 BPH Voltage: 380V/50HZ
Automatic Grade: Semi-Automatic Driven Type: Electric
Water Treatment Plant: RO / Ultrafiltration After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,Field Maintenance And Repair Service,Online Support
Label Shrink Tunnel: 600*600*1000 Solid Ink Roll Coding Machine: 440*345*300
High Light:

200BPH drinking water filling machine


200BPH 5 gallon filling machine

Product Description

200B / H 3 / 5 Gallon Barrel Filling Equipment With De-Capper And Washer


Brief of Barrel Filling Equipment​:

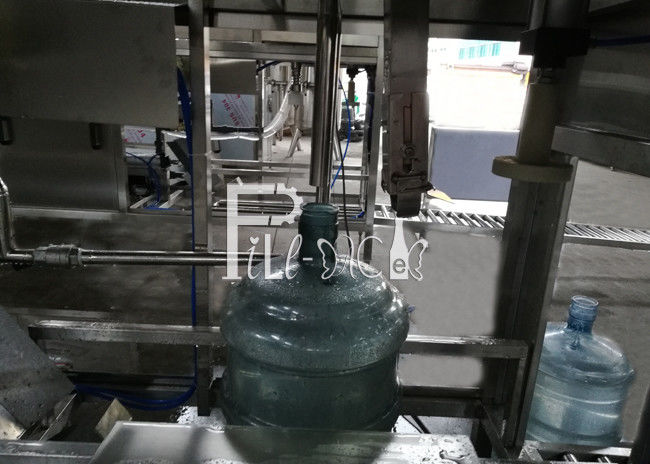

The water filling line is consisted of Semi-auto de-capper and brush washer, ringsing-filling-caping machine, Label shrink tunnel and Solid Ink Roll Coding Machine all together. CGF-200 water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.

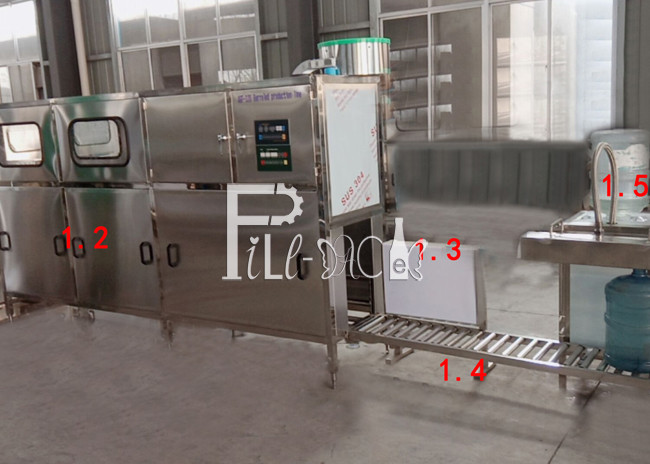

1.1 Semi-auto de-capper and brush washer with full SUS304 BS-1 900*900*1250 1set

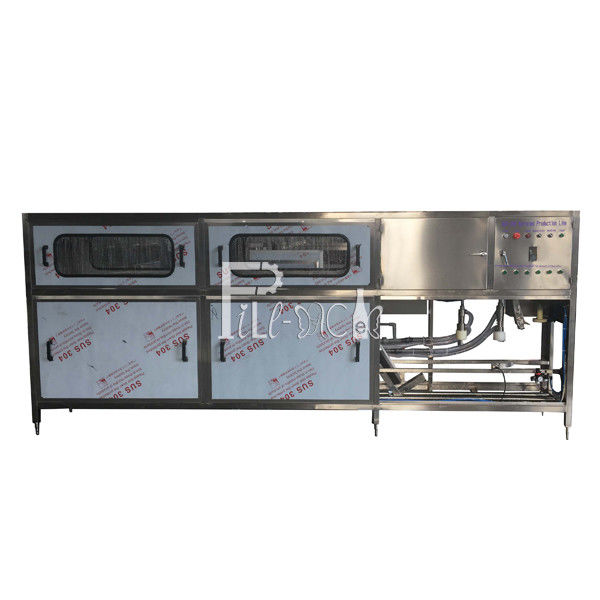

1.2 Monoblock rinser-filler-capper with full SUS304 QGF-200 3400*780*1950 1set
1.3 Light checker / / 1pc
1.4 Roller conveyor / / 2m
1.5 Label shrink tunnel / 600*600*1000 1set
1.6 Solid Ink Roll Coding Machine FP-380F 440*345*300 1set


Features of Barrel Filling Equipment​:

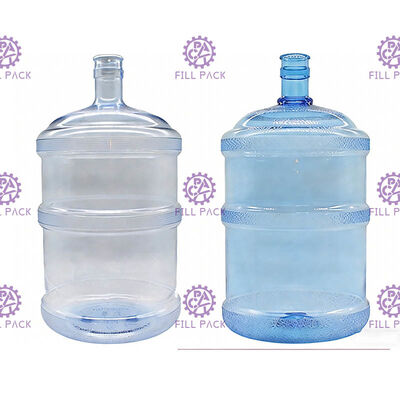

1. Filling the pure water or the mineral water in 3 or 5 gallon;

2. The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;
3. Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically;
4. In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage.


Gallon Bottle De-Capper And Washer​:

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client’s needing.


Power: 1.12KW without heating, 2.12KW with heating
Plate thickness: 1MM
Machine cube size: 25*25MM
Cube thickness: 1.5CM


200BPH 5 Gallon Filling Machine With De-Capper Washer 0
