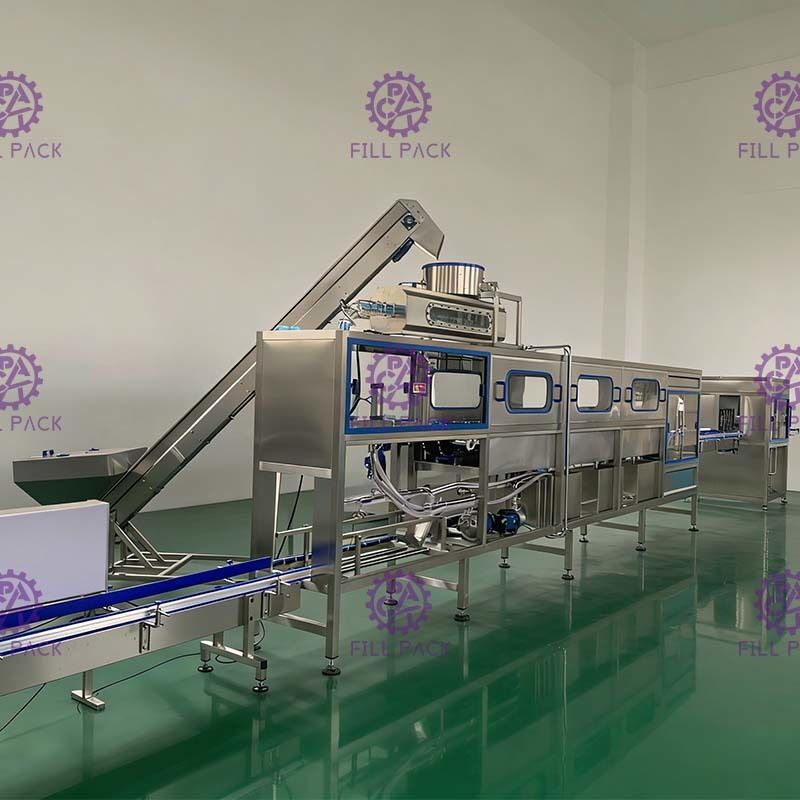

270×490mm Gallon Filling Machine With Label Shrink Tunnel

Minimum Order Quantity : 1 set/pcs Price : USD$4,850.00-USD$6,000.00
Packaging Details : Wooden case pacakge Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: QGF-200

Detail Information

Weight: 800KG Voltage: 380V 50HZ 3P Or Customized
Filling Material: Flowing Liquid,water Function: Bottle Washing Filling Capping
Drive Type: Electric And Pneumatic Configuration: Imported Electrical Parts And Cylinders
Filling Volume: 3 - 5 Gallon Size Of Barrel: ф270×490mm
High Light:

800KG pure water filling machine


ISO Gallon Filling Machine


200 BPH Gallon Filling Line

Product Description

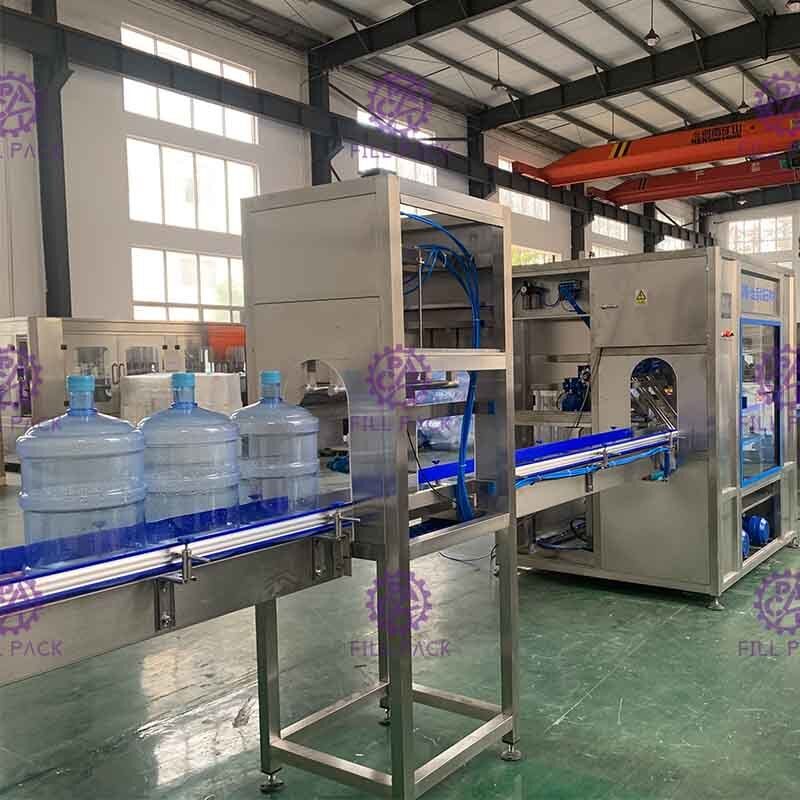

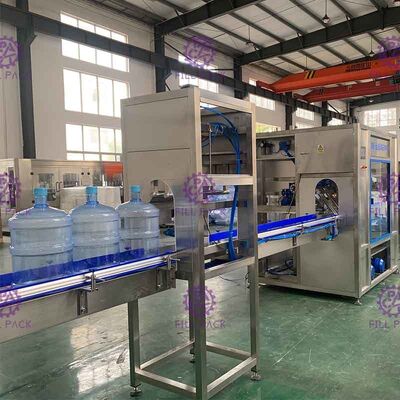

Automatic Barrel Water Filling Equipment With Shrink Sleeve Tunnel


The big barrel water filling machine integrates bottle washer, filler and sealer into one unit, in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer, WashinLabel shrink tunneon can boused circularly.


The equipement list of the whole line:

1.1 Semi-auto de-capper and washer BS-1 900*900*1250 1set
1.2 Monoblock rinser-filler-capper with full SUS304 QCF-200 3400*780*1950 1set
1.3 Roller conveyor / 2M 1set
1.4 Checking Light CL-1 1000*100*450 1pc
1.5 Label shrink tunnel / 600*600*1000 1set
1.6 Solid Ink Roll Coding Machine FP-380F 440*345*300 1set


Features of Barrel Water Filling Equipment​:

1. Our barreled water producing line is specially designed for 3-5 gallon drinking water;
2. The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;

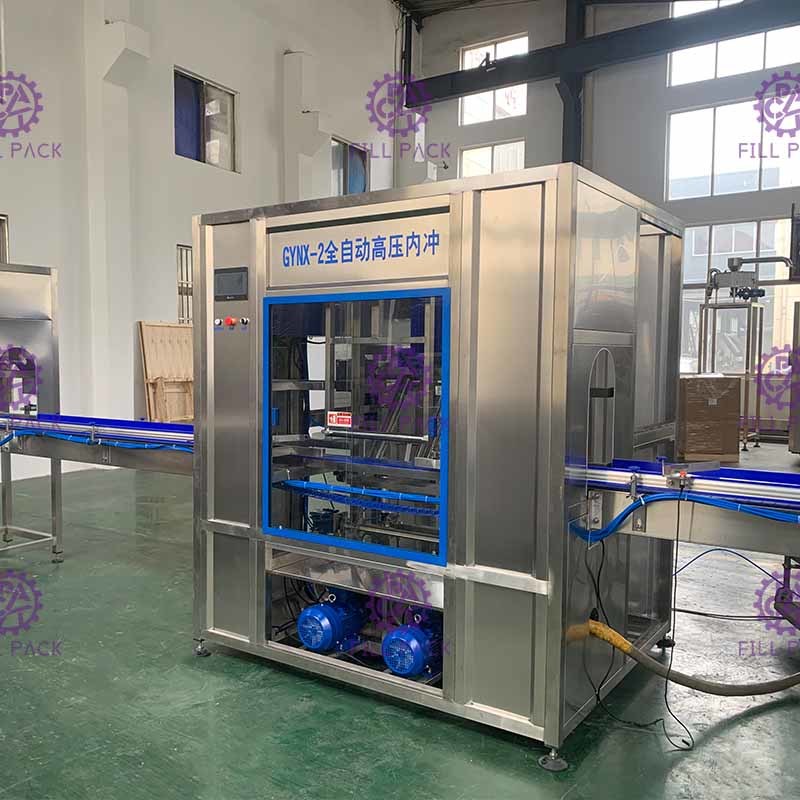

3. Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically
4. In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;
5. Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging


Containers and Specifications of Barrel Water Filling Equipment​:
Material Shape Filling volume Filling Type Conveyor Mode
PC / PET Round or Square 3 - 5 Gallon Gravity filling Conveyor belt
Normal temperature
Adjustable Specifications Of Bottle Type Size of Barrel : ф270×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification Voltage:380V±5%, 3phase; Frequency:50HZ±1%


Label shrink labeler of Barrel Water Filling Equipment​:

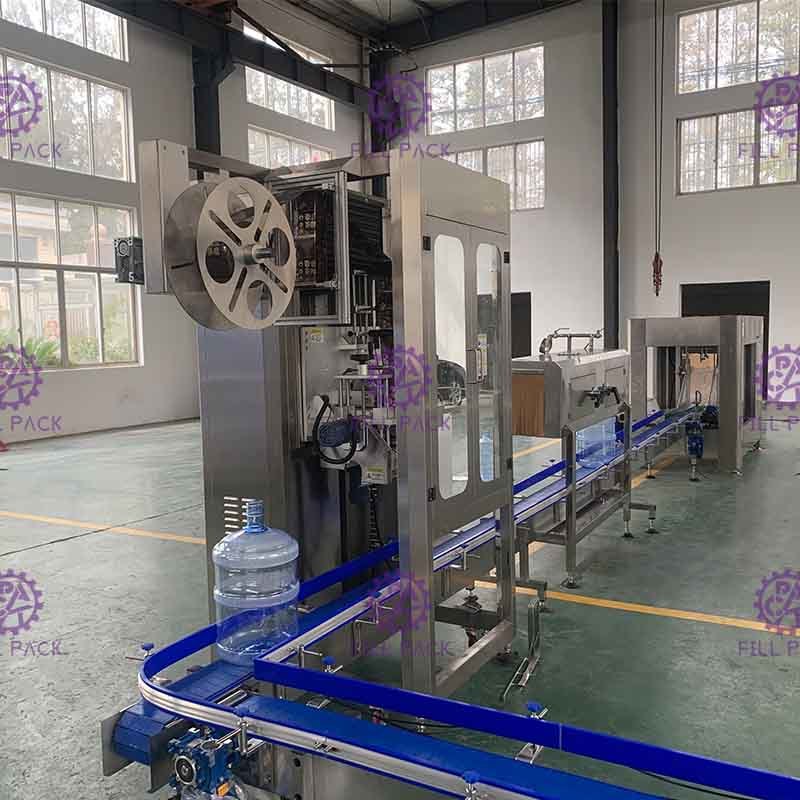

Gallon Barrel Mouth/Neck Shrink Machine was used for shrinking the gallon barrel neck or mouth label or film by steam. People sleeve the barrel label or film into the barrel neck, later the barrel goes to shrink machine through conveyer belt to shrink it.

The barrel mouth shrink machine is simple and stable.

270×490mm Gallon Filling Machine With Label Shrink Tunnel 0

270×490mm Gallon Filling Machine With Label Shrink Tunnel 1
