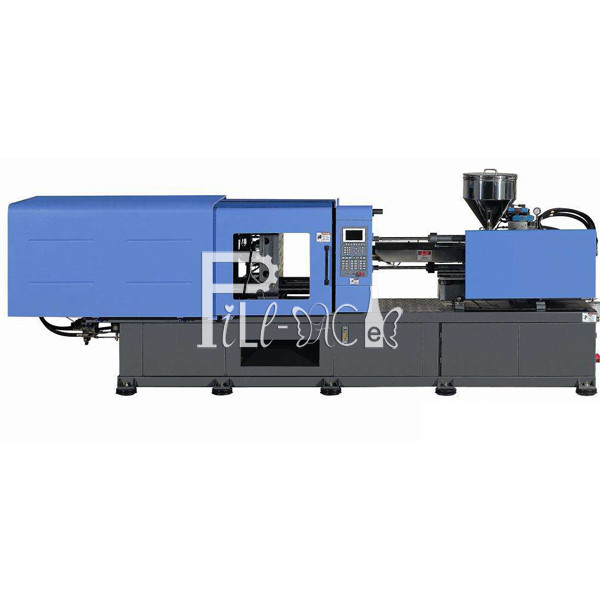

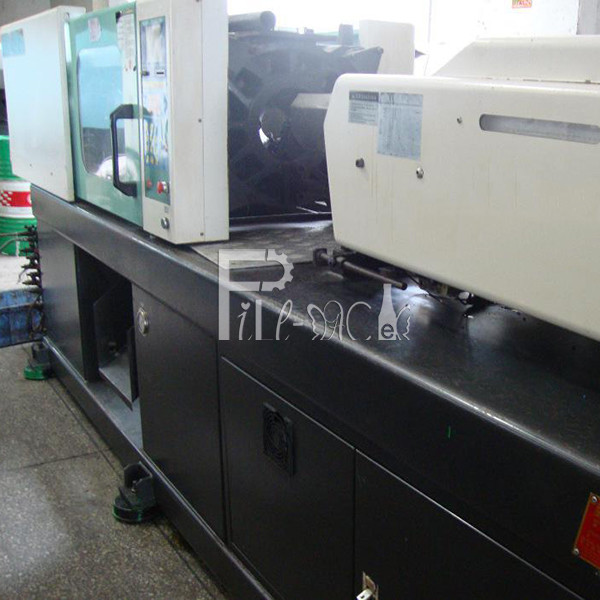

PET 5 gallon preform Injection Moulding Machine

Product Description

Gallon preform injection molding machine / equipment / device / system / plant with 65 Screw diameter

      Features:

      CLAMPING UNIT

• New type 5-point toggle device with the advantage of stable movement curve and gentle shock
• High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
• Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
• Wear-resistant guide for moving platen for Gallon preform injection molding machine
• Transducer control clamping stroke for Gallon preform injection molding machine
• Many step control for speed and pressure of clamping and opening
• Ejection device offer dwell, single, more, vibration function
• Differential high speed clamping for Gallon preform injection molding machine
• Low pressure mold protection function for Gallon preform injection molding machine
• Hydraulic mold height adjustment drived by gear with rough and fine operation
• Mechanical and electrical dual safety interlock for Gallon preform injection molding machine
• Automatic centralized lubrication system with far pressure detector

Inject unit unloading deatils for reference:

Parameter:



Recommended different preform moulds specifications based on standard gram
Moulds manterial	Cavity(Pcs)	Gram weight(g)	Capacity(pcs/hour)
Option1:P20 outside, Main accessories S136   Option2: SUS 316	1	800	45
		750
		730
		700
		680	50
		650
		620
		600
		580	55
		560
		530
	2	480	120
		430
		400
		350
		320





Spare parts list for host inject machine part:



Item	Free spare parts	Price for additional spare parts/USD
1, Heating band for barrel	1pcs	$35
2, Heating band for nozzle	1pcs	$26
3, Sealing rings	1sets	$25
4, Solid-state relay	1pcs	$15
5, Proximity switch	2pcs	$12
6, thermocouple	1pcs	$12
7, socket head wrench	1sets	$16
8, Mold clip	8pcs	$180
9, Level pad	1pcs	$130
10, Socket & plug	2pcs	$17



---

The matching for recommended auxiliaries devices:

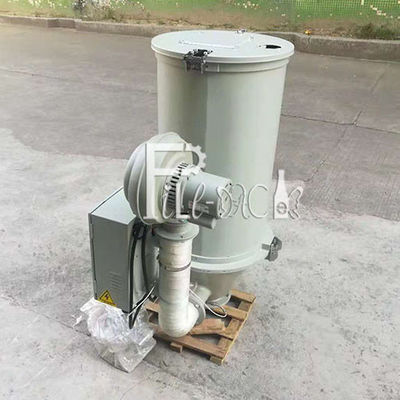

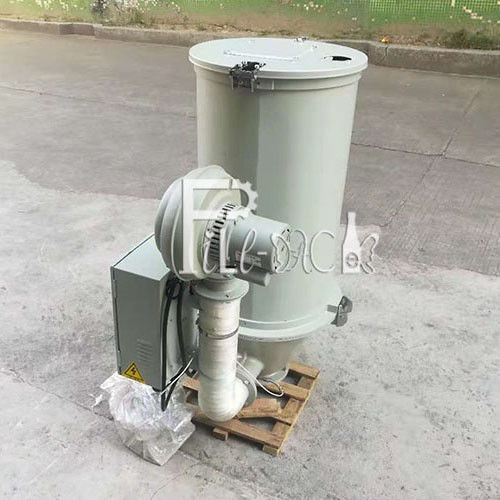

Hopper Dryer		Photo
Capacity	100KG
Power for electrical heating	6.5KW

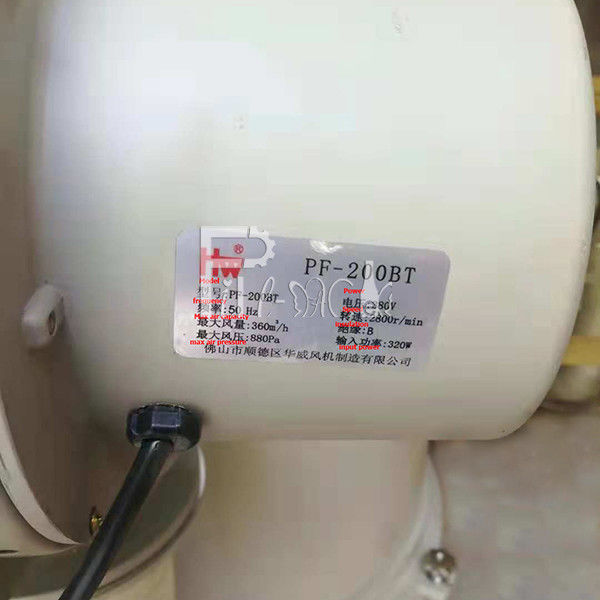

Fan power	215W
Fan flange	150mm
Packing size	1020*630*1080mm
Base installation size	180*180*φ80mm
weight	59KG



Hopper Dryer		Photo
Capacity	300KG
Power for electrical heating	15KW
Fan power	320W
Fan flange	190mm
Packing size	1200*880*1770mm
Base installation size	230*230*φ110mm
weight	120KG
