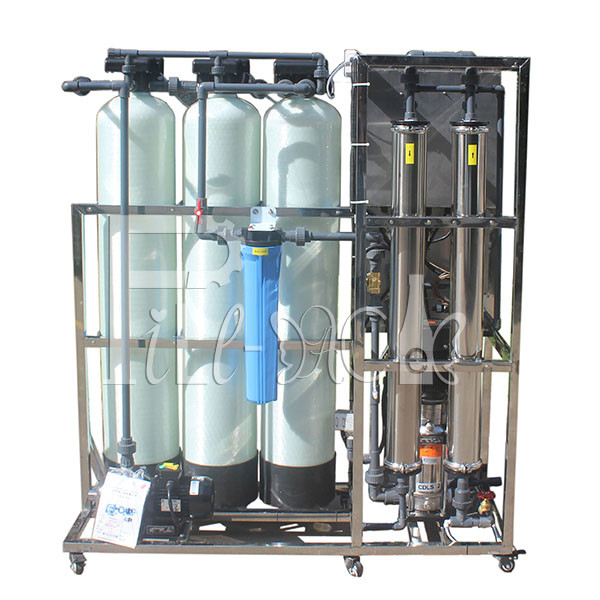

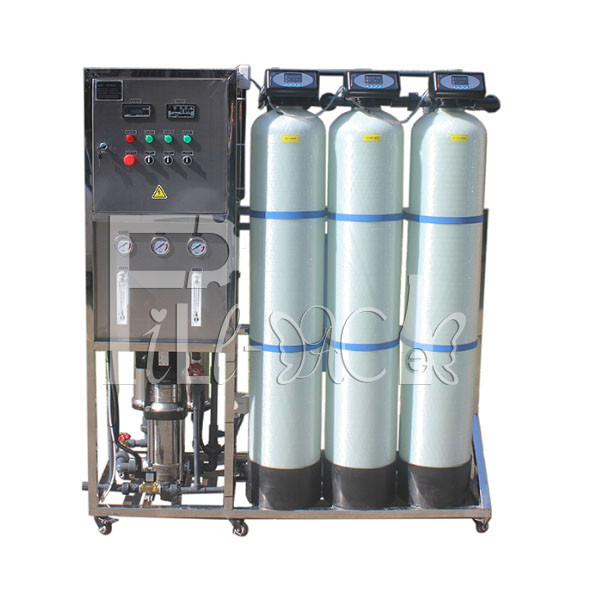

500LPH RO Water Treatment Filter Machine With 4040 Membrane

Minimum Order Quantity : 1 set/pcs Price : USD$1735
Packaging Details : Wooden case Delivery Time : 15 days
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: RO-500

Detail Information

Application:: Pure Water Treatment Plant Material: FRP
Capacity: 500LPH Desalination Rate:: 98%
Raw Water Conductivity:: <200us/cm Filter Media:: Sand+carbon+resin(all Included)
RO Membrane:: VONTRON
High Light:

500LPH ro filter machine

,

4040 membrane ro filter machine

,

500LPH ro water purifier machine

Product Description

500LPH Drinking water RO water treatment plant with 4040 membrane for water factory

Process flow:
Raw water → Raw water tank → Sand filter → Activated carbon filter → Water softener → Precision filter → RO menbrane → UV sterilizer → Pure water tank

Raw water pump
provide the pressure to quartz sand filter/active carbon filter/ water softener
Sand filter
Get rid of turbidity, suspended matter
Active Carbon filter
Remove the color, free chloride, organic matter, harmful matter, ect.
Softener
Exchange "ions" of calcium and magnesium with the most common and easiest method.
Precision filter
Prevent large particles into RO membrane, accuracy is 5um
High pressure pump
Provide the high pressure to RO membrane
RO system
Main part of the plant. The RO membrane's desalting rate can reach 97% and above, removing over 99% ions.



Main Technical Parameters
Model
Capacity (LPH)
Membrane Quantity
Size(L*W*H) (mm)
Weight (Kg)
RO250
250LPH
4040*1
1400*600*1600
100
RO500
500LPH
4040*2
1400*600*1600
150
RO1000
1000LPH
4040*4
1600*800*1800
200
RO1500
1500LPH
4040*6
2700*800*1600
250
RO2000
2000LPH
4040*8
2700*800*1600
300

What's the information you need to know before order?


A:What's your raw water?It is better to have a water quality report,
B:What's your daily water consumption?
C:What's the application of purifier water?
D:What is the power supply?(Such as 380V/50HZ,220V/50HZ etc;)





500LPH RO Water Treatment Filter Machine With 4040 Membrane 0500LPH RO Water Treatment Filter Machine With 4040 Membrane 1
