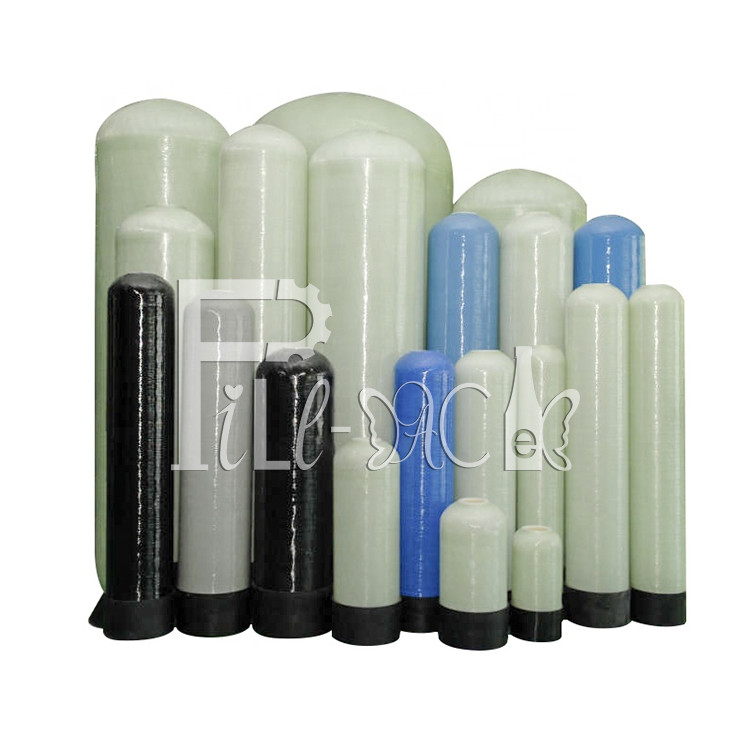

Fiberglass Water Treatment Machine Pressure Vessel Sand Filter FRP Tank

Product Description

China manufacturer fiberglass water treatment Machine pressure vessel sand filter FRP tank

Descriptions:
FRP Tank is a kind of nonmetallic composite which is made by resin and fiber glass. It has the advantages of
corrosion resistance, high strength, long service life, flexible design, and strong processability. FRP tanks
are widely used for RO system and water softeners.


Product features:
For multi-media filter and softerner

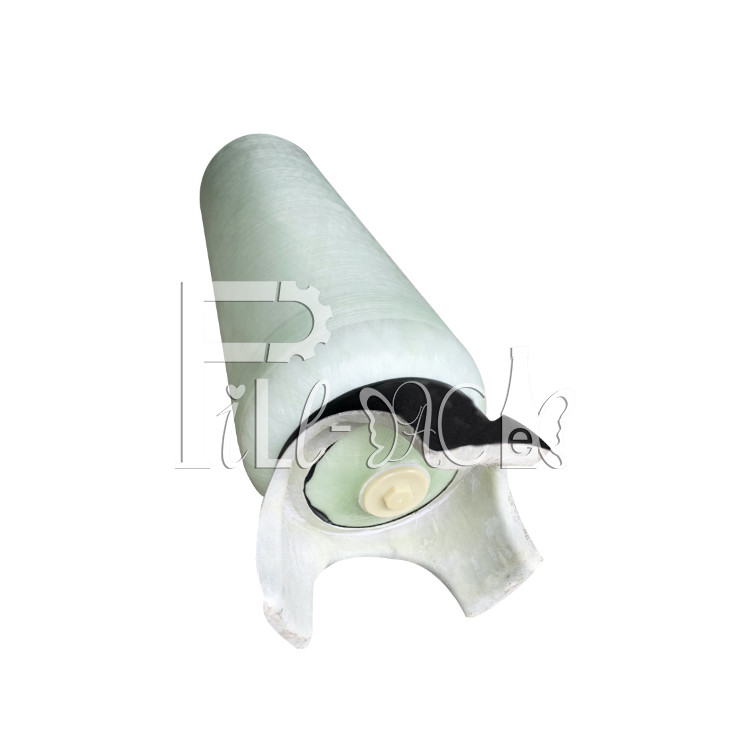

1).PE liner with FRP filament winding,high quality but competitive cost:
2).2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;

Parameters

Items	Model	Nominal dimension (mm)	Opening	Volume (L)	Recommended flow(T/H)	Base
1.1	1035	∮250*890	2.5’’	39.4	0.5~1.0	standard
1.2	1054	∮250*1373	2.5’’	63.5	0.6~1.5	standard
1.3	1252	∮300*1320	2.5’’	85.9	1.6~2.2	standard
1.4	1344	∮330*1117	2.5’’	83.1	1.5~2.0	standard
1.5	1465	∮350*1650	2.5’’	147	2.2~3.0	standard
1.6	1665	∮400*1650	2.5’’	191.3	3.0~4.0	standard
1.7	1865	∮450*1650	4”	242.3	3.5~4.5	round
1.8	2069	∮500*1752	4”	310.4	4.0~5.5	round
1.9	2162	∮550*1575	4”	312.7	4.0~6.0	round
1.10	2472	∮600*1830	4”	477.5	6.2~8.2	round



Notice:
1. The tank models from 0517 to 8079, if your prefer model not included in above list, pls check with our sales directly, they will offer you suitable models.
2. Color customization:
If order quantity more than 100pcs with same model, then no color customization fee.
If less than this quantity then can not colour customization.



Detalis:
