25t/H Reverse Osmosis Dialysis Machine Plc Control Full Automatic

Minimum Order Quantity : 1 set/pcs Price : USD$70000 per set
Packaging Details : Wooden case Delivery Time : 20-25 days
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram Supply Ability : 10 sets/month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: RO-25000

Detail Information

Product Name: Water Treatment System Processing Reverse Osmosis Plant Material: FRP Or SUS304
Capacity: 25000LPH Warranty: 1 Year
Type: RO RO Membrane's Desalting Rate: 99%
Voltage: 380V 3PH 50HZ Condition: New
High Light:

25t/h reverse osmosis dialysis machine

,

plc reverse osmosis dialysis machine

,

plc commercial reverse osmosis machine

Product Description

25T/H RO Water purification system / plant / machine PLC control full automatic



Brief introduction of Water purification plant
The Water purification plant is suitable for such industries as cosmetics, pharmacy, food and electronics has been deeply favored by users for its stable water quality and simple operation.

The system solves the troubles of frequent regeneration and cleaning during the use of ion exchanging water purifier. By adopting physical principle, it enables the water to pass the reverse osmosis film with a diameter of one ten-thousandth of a micron and separates impurities, ion, microbes and colloids in the water, so as to meet the water requirements in cosmetics industries.

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90%-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% of all bacteria in the feed water.

According to the customer's local water testing report,we adopt different equipments to produce drinking water of pure water or mineral water,etc.



Features of Water purification plant
1.This system occupy little space, easy to operate, wide application range.


2.When used for disposing industries water, the reverse osmosis device does not consume large amounts of acids and alkalies, and there is no secondary pollution. In addition, it’s operation cost is also low.


3.Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.


4.Finished water under good electric conductivity, one stage ≤10μ s/cm, two stage around 2-3μ s/cm, EDI ≤0.5μ s/cm (base on raw water ≤300μ s/cm).

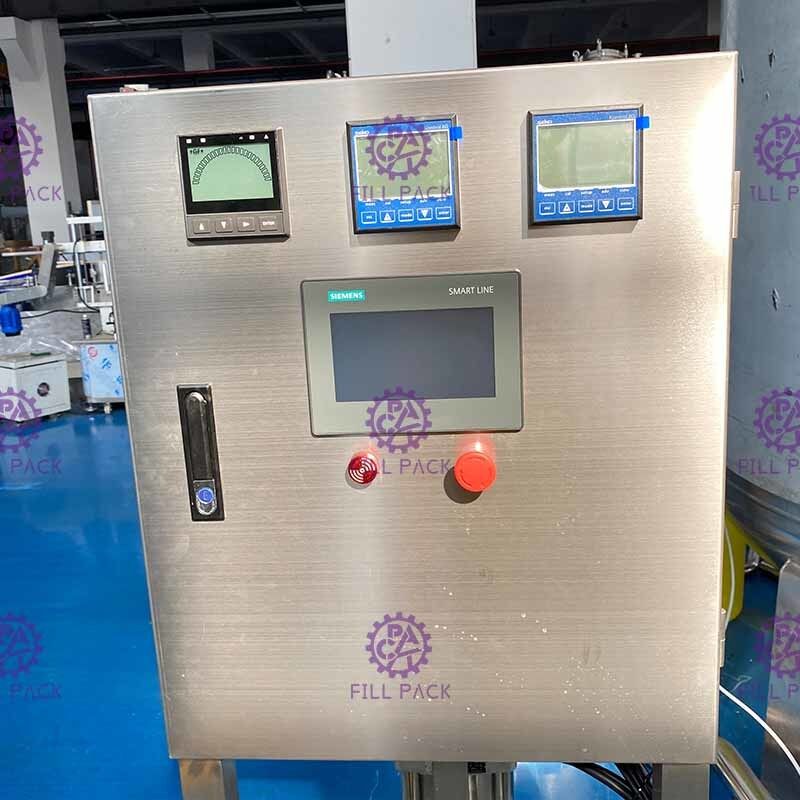

5.High operation automation degree. It is unattended. The machine will automatically stop in case of water sufficiency and automatically start in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by IC microcomputer controller. Online display of raw water and pure water electric conductivity.


6.Imported parts account for over 90%.



Specification



Flow
Model
Thickness
Dimension
4 M3/H
SUS400
2mm
¢400*1850
6 M3/H
SUS500
2mm
¢500*2100
9 M3/H
SUS600
3mm
¢600*2500
10 M3/H
SUS700
3mm
¢700*2600
12 M3/H
SUS800
3mm
¢800*2600
14 M3/H
SUS1000
3.5mm
¢1000*2700
16 M3/H
SUS1100
3.5mm
¢1100*2700
18 M3/H
SUS1200
3.5mm
¢1200*2700
22 M3/H
SUS1400
4mm
¢1400*2800
30 M3/H
SUS1600
4.5mm
¢1600*2900
60 M3/H
SUS2000
5mm
¢2000*3500
80 M3/H
SUS2500
6mm
¢2500*5000

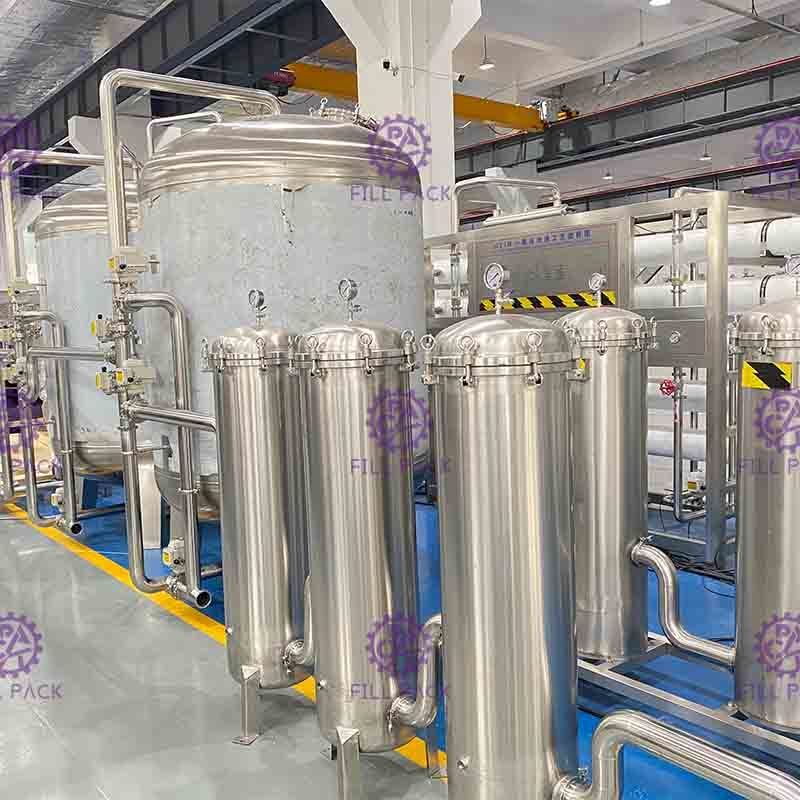

25t/H Reverse Osmosis Dialysis Machine Plc Control Full Automatic 0

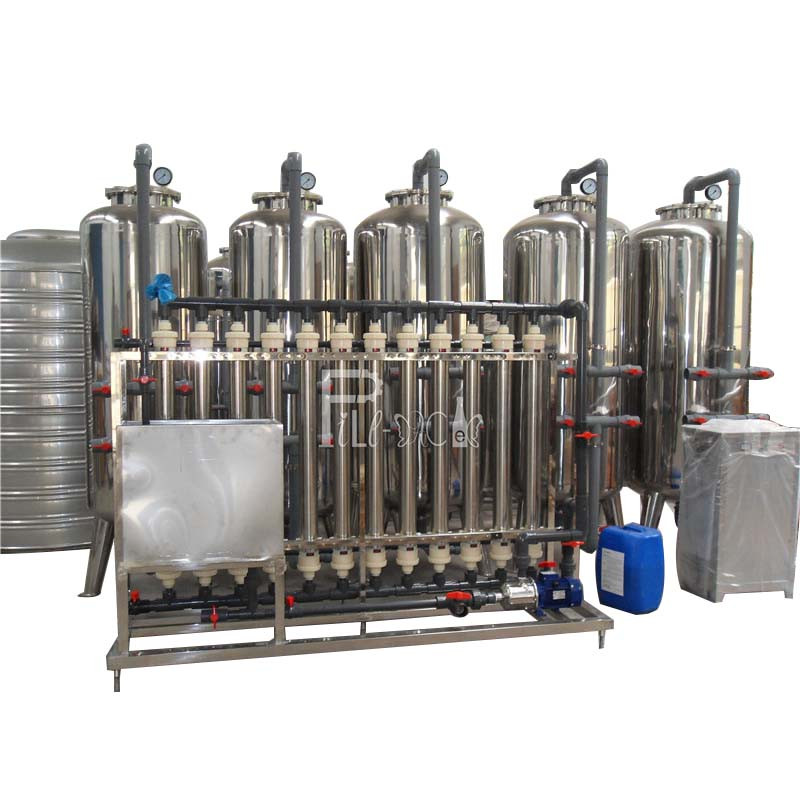

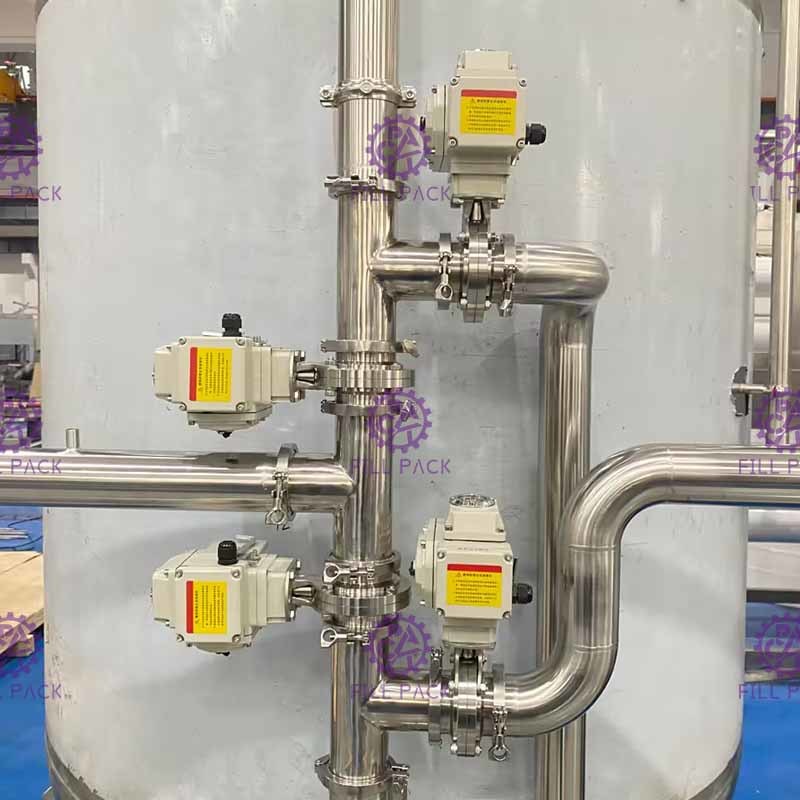

25t/H Reverse Osmosis Dialysis Machine Plc Control Full Automatic 1

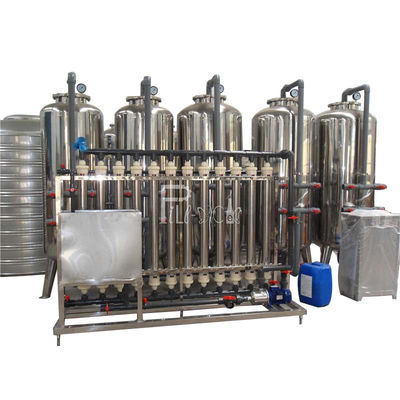

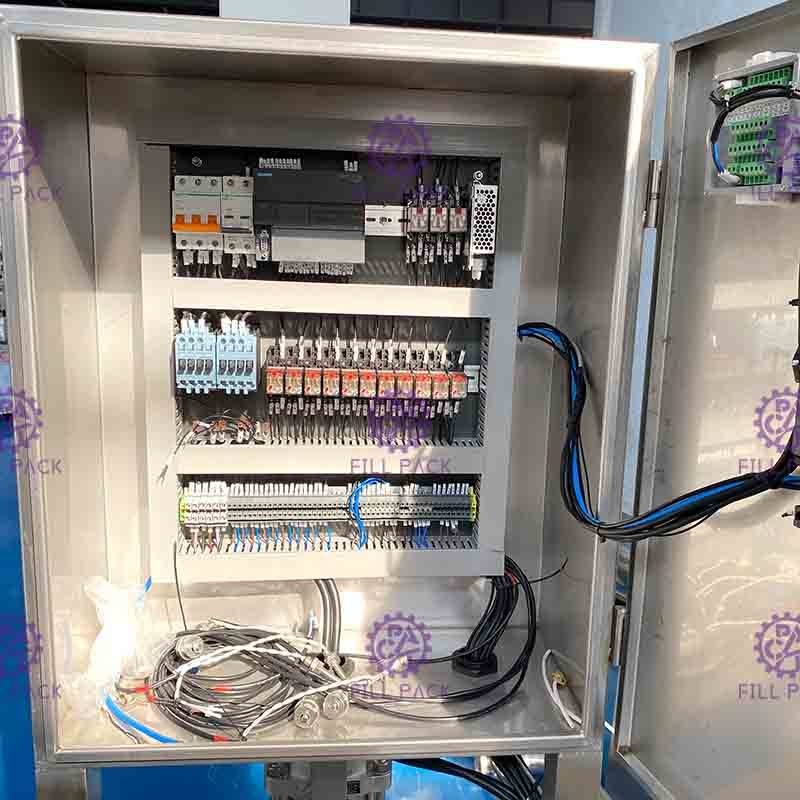

25t/H Reverse Osmosis Dialysis Machine Plc Control Full Automatic 2
