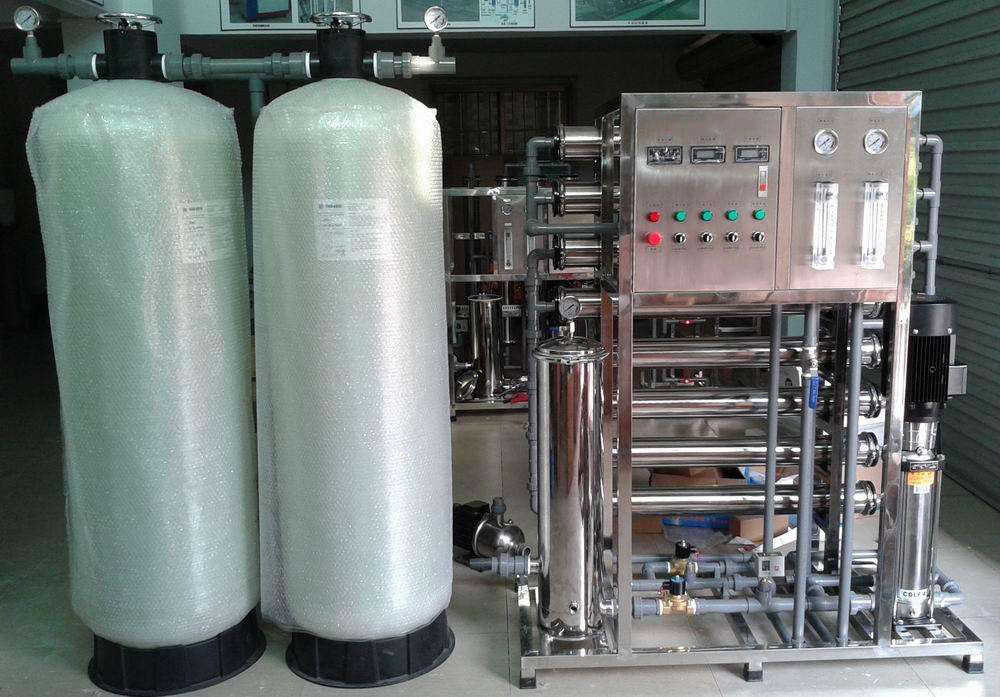

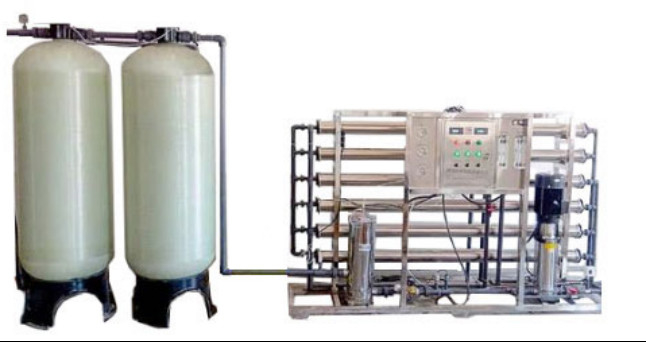

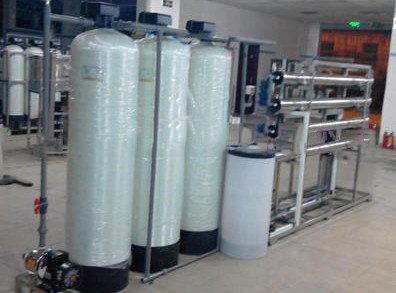

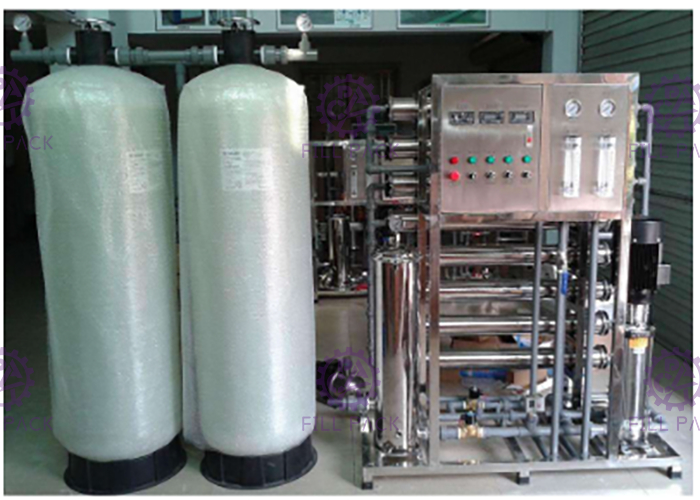

Drinkable 3000lph Reverse Osmosis Water Treatment Machine FRP Filter Tank

Minimum Order Quantity :	1 set/pcs	Price :	USD$5100 per set
Packaging Details :	Wooden case	Delivery Time :	20-25 days
Payment Terms :	L/C, D/A, D/P, T/T, MoneyGram	Supply Ability :	10 sets/month

Place of Origin:	ZhangJiaGang City, JiangSu Province, China	Brand Name:	FILLPACK
Certification:	CE,ISO	Model Number:	RO-3000

Detail Information
Product Name:	Water Treatment System Processing Reverse Osmosis Plant	Material:	FRP
Capacity:	3000LPH	Warranty:	1 Year
RO Membrane:	KEESEN	RO Membrane's Desalting Rate:	99%
Voltage:	380V 3PH 50HZ	Condition:	New
Highlight:	Drinkable Reverse Osmosis Water Treatment machine , 3000lph Reverse Osmosis filter , FRP filter Reverse Osmosis filter

Product Description

Parameters:

Items	Name	Specifications and model	Material	Brand&Origin	Unit	Qty.
I	Raw water lifting unit
1	Level controller	ST-70AB	Plastic assembly	RADAR	suit	1
2	Raw water lifting pump	CHL8-40/380V, P=1.5kw,Q=6T,H=38M	SUS304	NanFang	set	1
II	Multimedium filter		assembly	FILLPACK
1	Multimedium filter tank	Φ610*1950MM	FRP	FILLPACK	set	1
2	Central tube, Up and below distribution	matching	ABB	JIEDA	suit	1
3	Manual control valve	F56L	assembly	RUNXIN	set	1
4	Quartz sand	NO. 1-4		DongSheng	KG	500
5	Online pressure gauge	0-0.1MPa	SUS304	YYST	pcs	1
III	Active carbon filter		assembly	FILLPACK
1	Active carbon filter tank	Φ610*1950MM	FRP	FILLPACK	set	1
2	Central tube, Up and below distribution	matching	ABB	JIEDA	suit	1
3	Manual control valve	F56L	assembly	RUNXIN	set	1
4	Activated Carbon	10-24MU	High quality shell	Chengde	kg	150
5	Online pressure gauge	0-0.1MPa	SUS304	YYST	pcs	1
IV	Cartridge filter		assembly	FILLPACK
1	Cartridge filter	30INCH *5 core	SUS304	FILLPACK	suit	1
2	PP cotton	40INCH / 5 um	polypropylene	FILLPACK	pcs	5
3	Pressure gauge	0-0.1MPa	SS304	YYST	pcs	1
VI	RO system
1	High pressure pump	CDL4-16/380V, P=3KW,Q=6T,H=101M	SUS304	NANFANG	set	1
2	RO pressure vessel	4040*2	SUS304	BONA	pcs	6
3	RO membrane	ULP-4040	polyamide	KEESEN	pcs	12
4	Water inlet solenoid valve	DN25/AC220V	BRASS	YONGCHUAN	pc	1
5	Washing solenoid valve	DN20/AC220V	BRASS	YONGCHUAN	pc	1
6	Online Pressure gauge	0-0.6MP/0-3MPA	SUS304	YYST	pcs	4
7	Low pressure switch	0.1-3MPA	SUS304	TAIWAN BD	pcs	1
8	Conductivity meter for produced water	CCT3320	assembly	CREATEC	suit	1
9	Flowmeter for produced water	Rotor type LZS-25T	Plastic assembly	YYST	pcs	1
10	Flowmeter for salinity water	Rotor type LZS-25T	Plastic assembly	YYST	pcs	1
11	Main frame of RO	27006001700MM	SUS304	FILLPACK	suit	1
VII	Connecting pipe
1	Tubing / fittings / valves	DN32/DN40, etc matching	UPVC/ GB	XieYu/China	suit	1
VIII	Pure water tank
1	Level controller	ST-70AB	Plastic assembly	RADAR	suit	1
IX	Electrical system
1	control cabinet	BD-4.0	SUS304	FILLPACK	suit	1
2	Programmer	RO-2015	assembly	CREATEC	suit	1
3	Circuit breaker	Matching		CHNT	suit	1
4	Air switch				suit	1
5	AC contactor				suit	2
6	Thermal relay				suit	2
7	Intermediate relay				suit	4
8	Button / switch			SengAo	suit	3
9	wire			QiuGuan	suit	1
10	accessories	Ties, fixing cards, screws, etc		China	suit	1

Water running direction in working status:

Drinkable 3000lph Reverse Osmosis Water Treatment Machine FRP Filter Tank 0

The plant layout drawing(mm)

Drinkable 3000lph Reverse Osmosis Water Treatment Machine FRP Filter Tank 1
