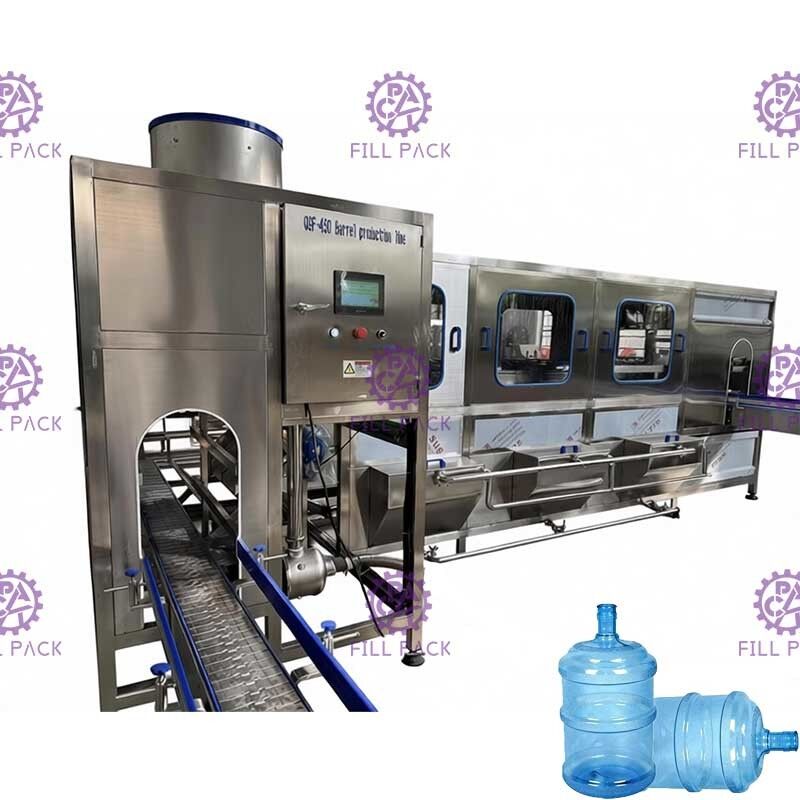

ISO 3 In 1 450BPH 5 Gallon Water Filling Machine

Minimum Order Quantity : 1 set Price : USD $6000-$8000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-450

Detail Information

Automatic Grade: Automatic Capacity: 450bottles Per Hour
Control: PLC Material: Stainless Steel 304
Dimension(L*W*H): 3600*2000*1800mm Processing: Filling Machine
Filling Capacity: 18.9 L
High Light:

5 Gallon Barrel Filling Line

,

450BPH Mineral Water Bottling Machine

,

ISO 450BPH Gallon Filling Line

Product Description

Description of 450BPH 3 in 1 Water bottling machine for 5 Gallon Barrel / Bottle



1. Suitable for the filling of 3-5 gallons of pure water, mineral water and spring water, the output is 450 barrels per hour, our other specifications and models are: QGF-150, QGF-300, QGF-600, QGF-900, QGF -1200, QGF-1500, QGF-2400, etc.



2. Production process: feeding barrel delivery → automatic capping machine → automatic external brushing machine → QGF host (including automatic barreling, washing, filling, capping, capping) → light box → automatic sleeve labeling machine → steam telescopic furnace → Coding machine→automatic bagging machine→code library machine→finished product.



3. PLC programmable system control, integrated management, high automation program, only need 1-3 people to complete the operation from water to finished product.



The machine is an integrated machine for flushing, filling and capping. It adopts cylinder pressure capping, the valve has CAP backflow function, and the lid is designed for one hour output and the display of flushing pressure.


The emachine has compact structure, high working efficiency, stable and reliable, sensitive and correct action, and high degree of automation. It is a trinity automatic barreling equipment of machine and electrical.



All the models of our gallon water bottling machine:

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200 QGF-2000
Number of filling heads 1 2 3 4 8 12 16
Filling capacity 18.9 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size (mm) φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
Production capacity (b/n) 100-120 200-240 300-400 600 900 1200 2000
Gas pressure (Mpa) 0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6 0.6
Gas consumption (m3/min) 0.37 0.6 0.6 1.2 2.2 3 4.5
Motor power(kw) 1.75 3.22 4.8 8.5 8.5 8.5 8.5
Rated voltage (V) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Weight(kg) 680 1500 2100 3000 3500 4500 5500

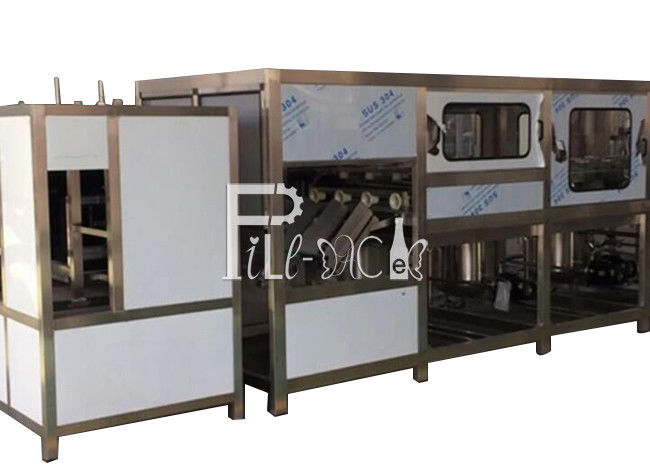

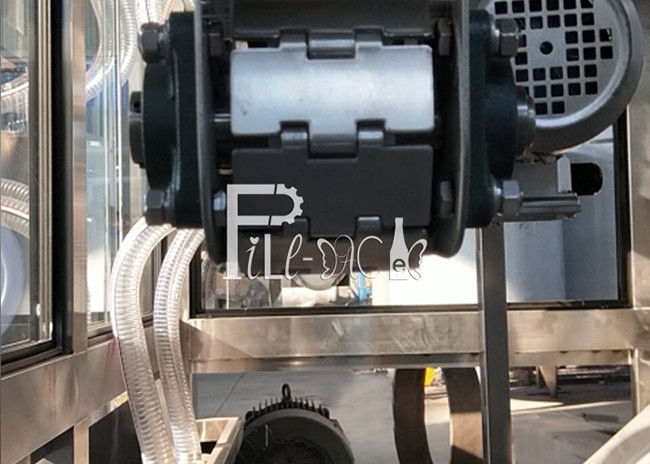

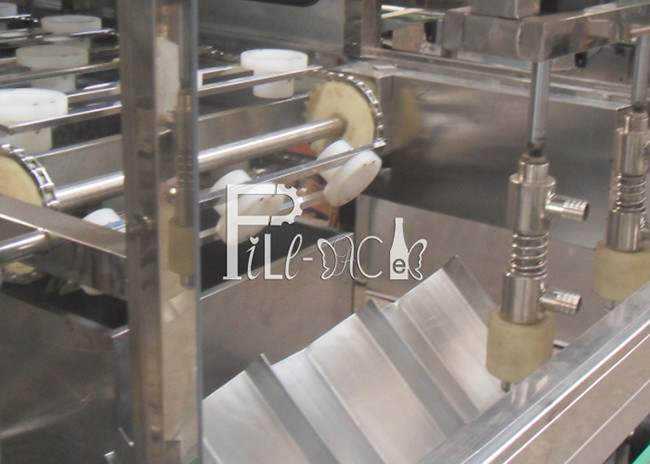

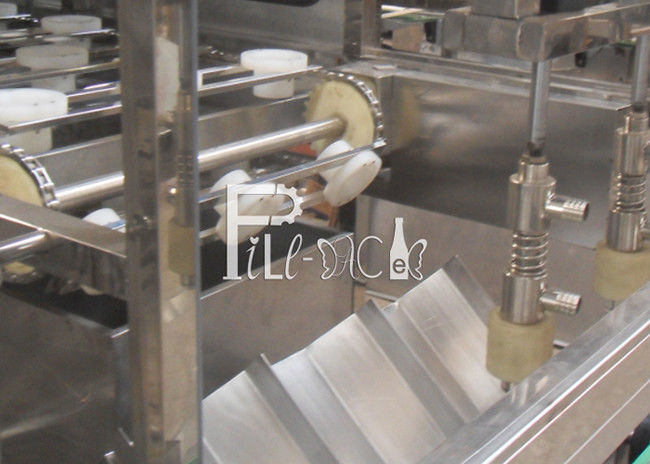

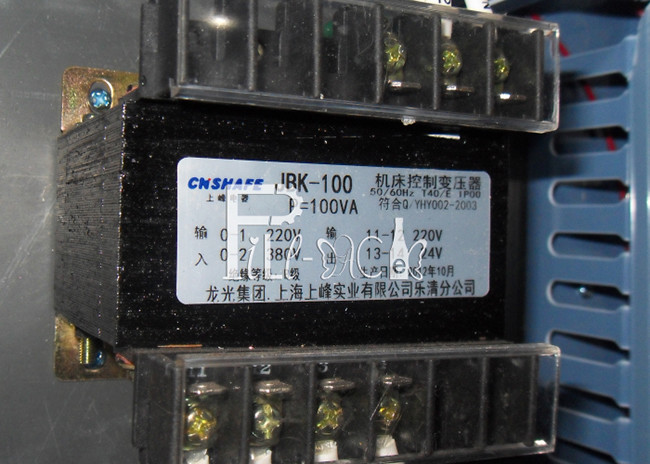

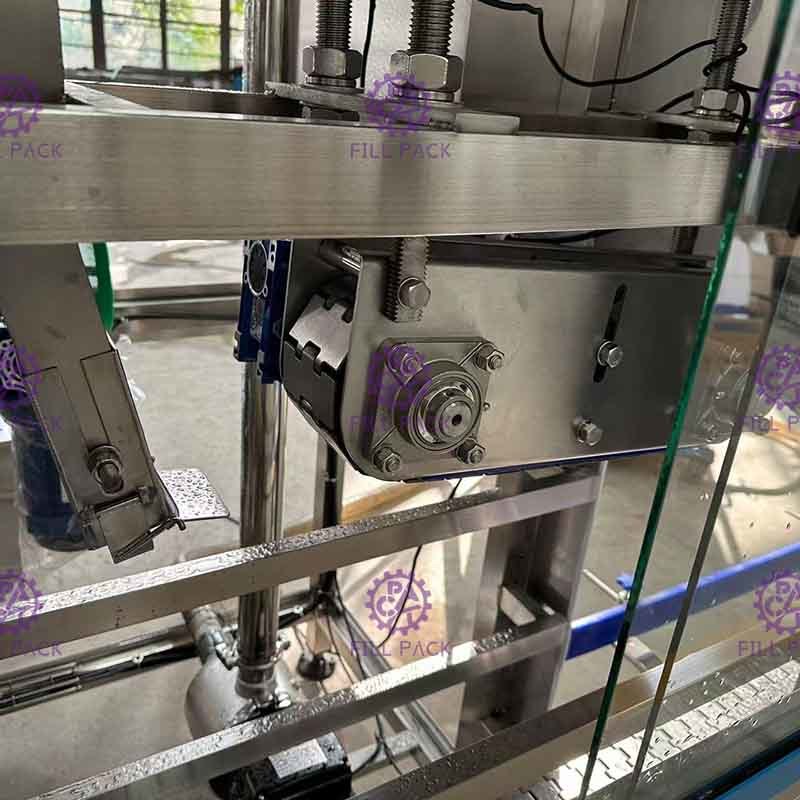

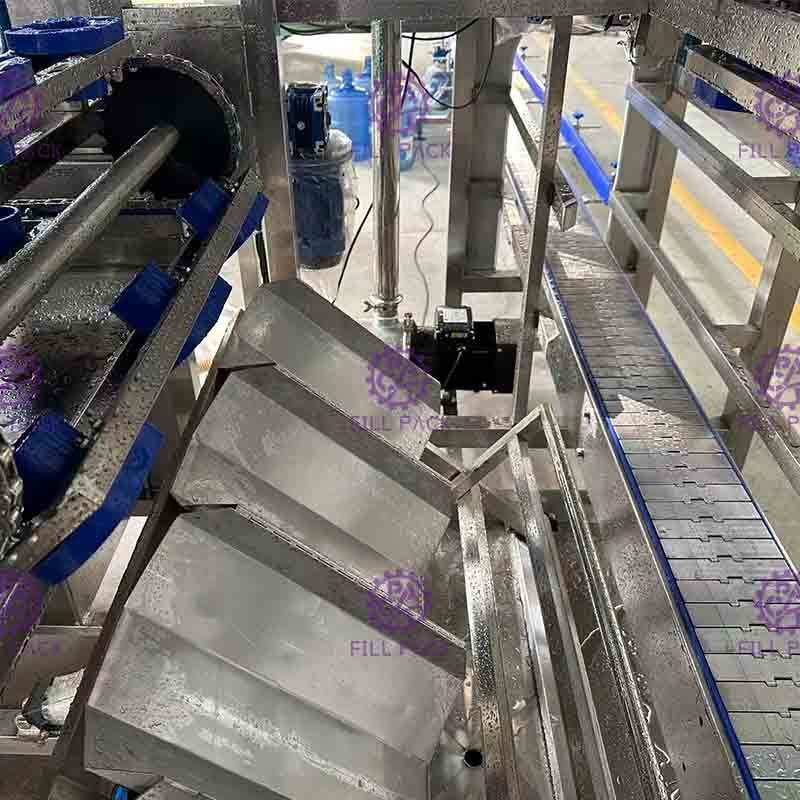

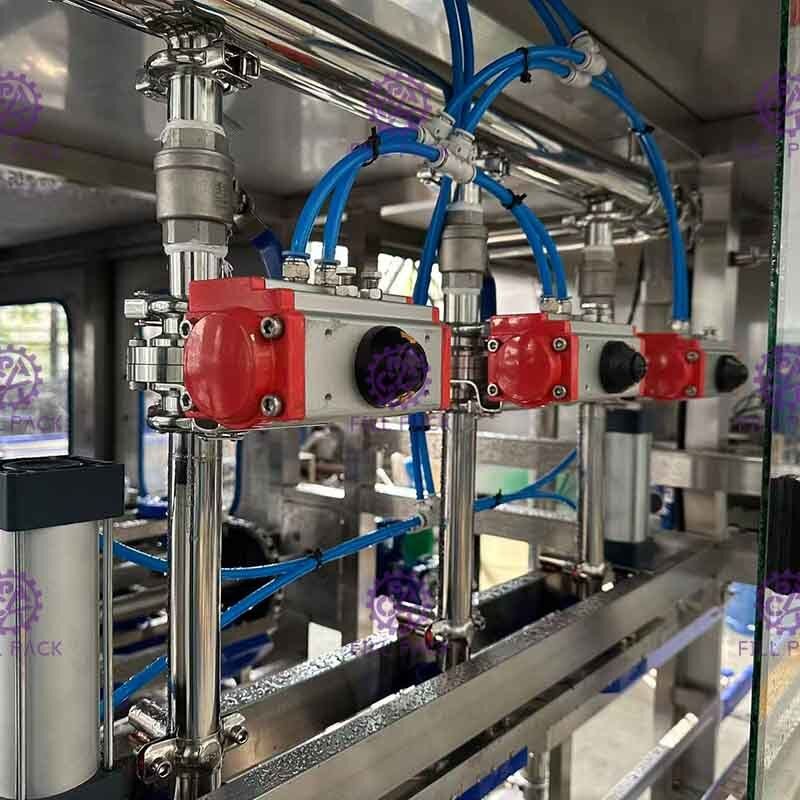

Detailed pictures of gallon water bottling machine:

ISO 3 In 1 450BPH 5 Gallon Water Filling Machine 0

ISO 3 In 1 450BPH 5 Gallon Water Filling Machine 1

For any further information about this machine,please contact us without hesitation,we will reply to you asap.Thank you and welcome to FillPack machinery.
