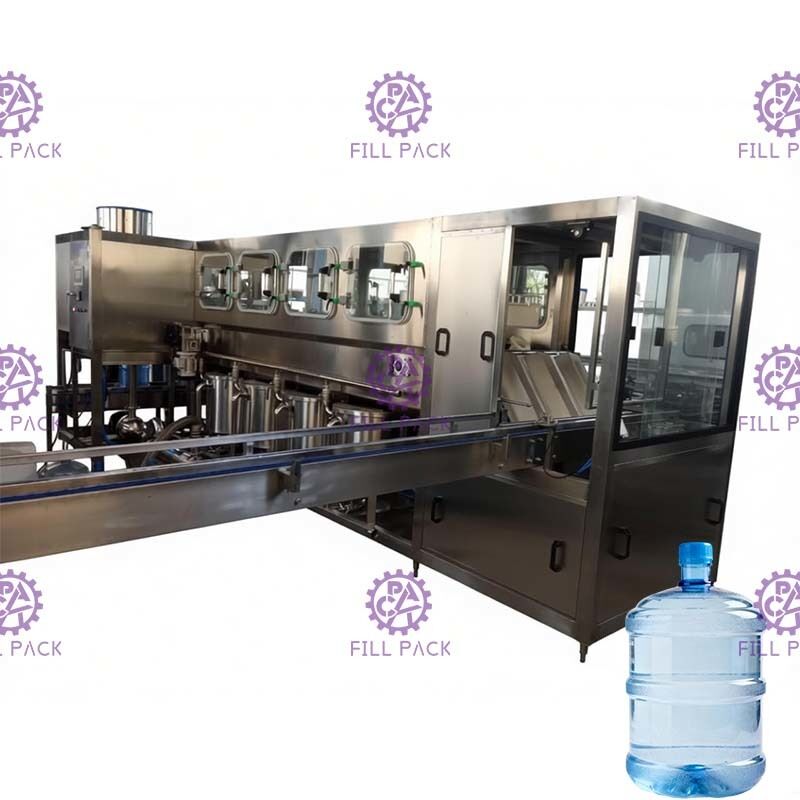

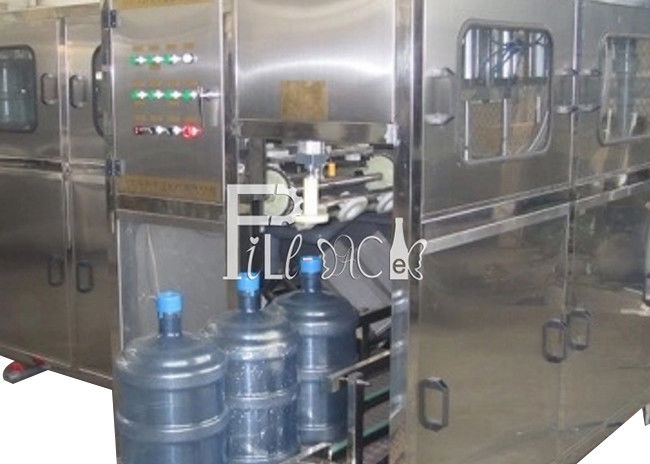

Electric Driven Full Automatic 450BPH 20L Bottle 5 Gallon Bottle Filling Machine For Mineral Water

Product Description

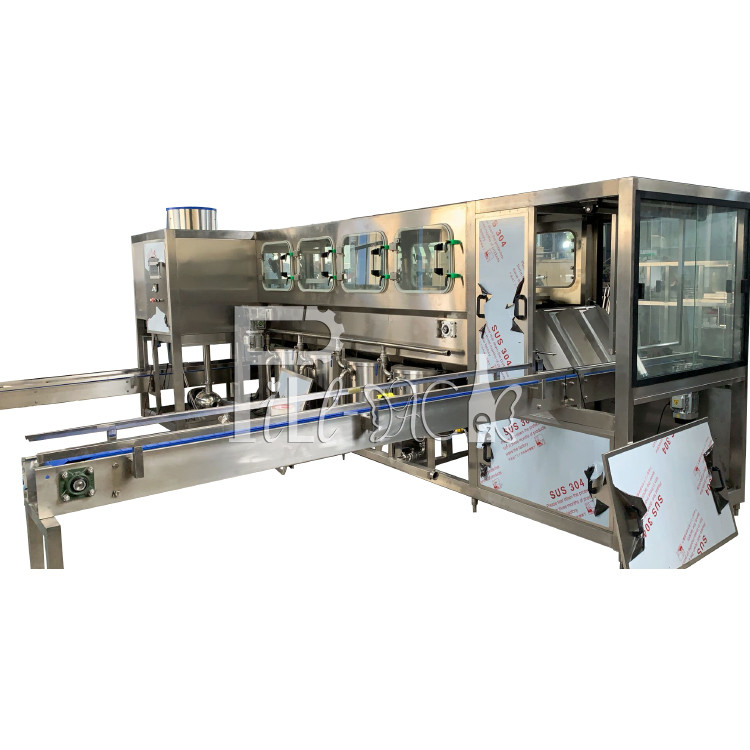

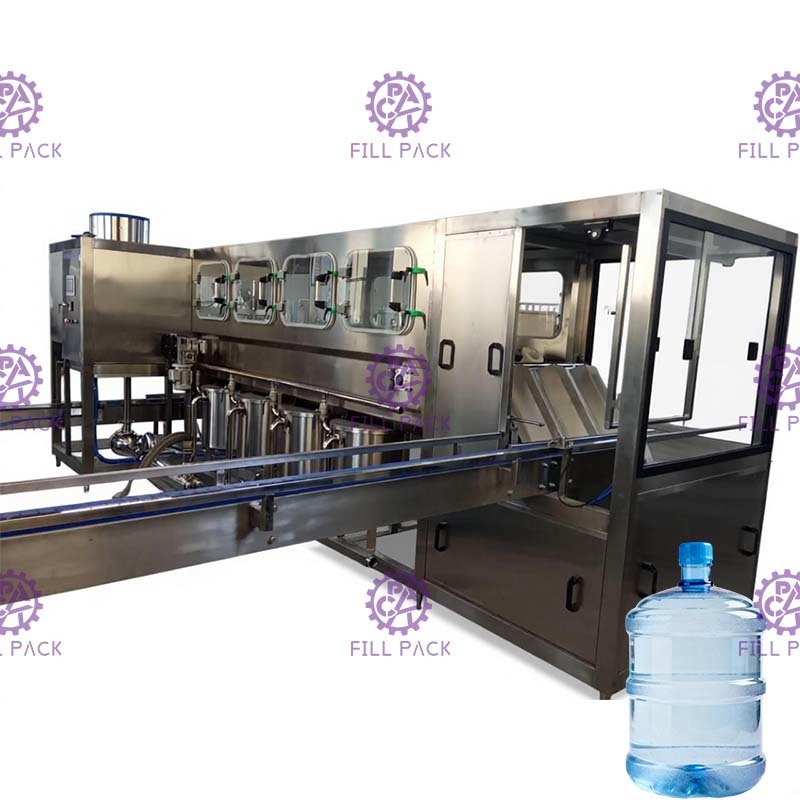

Description of Complete 5 Gallon Barrel / bucket filling machine with speed of 450BPH

This bucket filling machine can automatically carry out washing, sterilizing, filling, capping, counting and products discharging. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.

Working process of bucket filling machine:
Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 16 working stations,
1, 2 disinfectant washing stations
2, 1 dripping station
3, 2 return water stations
4, 2 pure water stations
5, 1 dripping station
One side 8 stations, Both sides 16 stations

Working process as below:

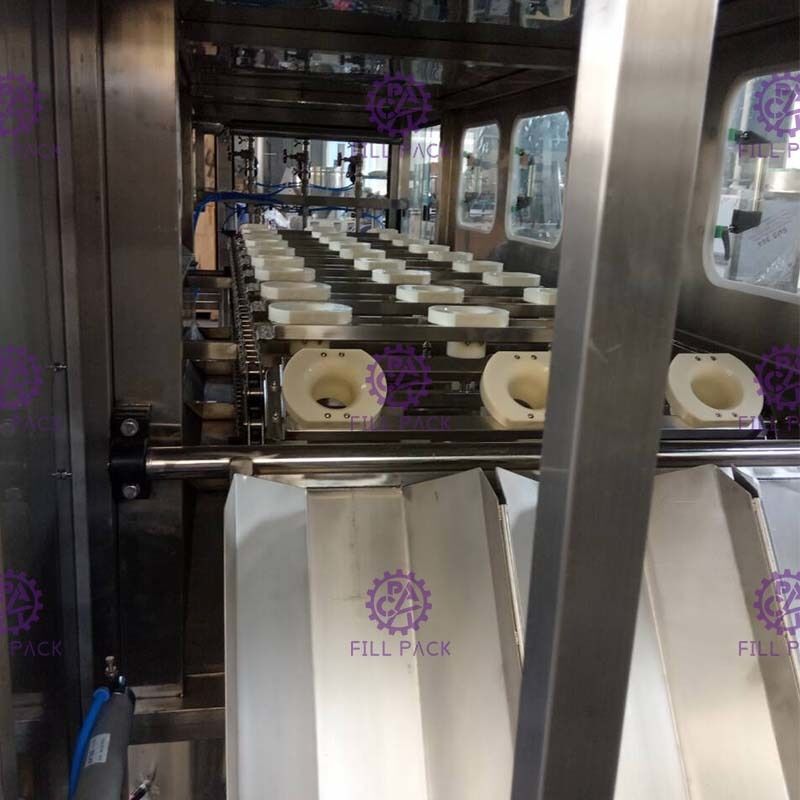

1. The empty bottles enter the washing and disinfection stations through the chain and bottle holder. (The washing bottle passes through 8 stations) When the drive motor runs with an empty bottle, and enters the positioning induction zone with the sensor on the chain, the positioning sensor switch sends a signal to stop the drive motor, and at the same time, the rinse bottle water pump starts to perform The flushing and disinfection work (the flushing time is controlled by the PLC program setting);
2. After rinsing, the rinsed empty bottles are transported by the bottle washing drive mechanism, and fall on the bottle pushing rack. The bottle pushing cylinder works to push the empty bottles to the filling position, so that the filling nozzle is aligned with the water bottle mouth, etc. After the water is flushed, the filling pump starts filling. (The filling time is adjusted by the user according to needs)

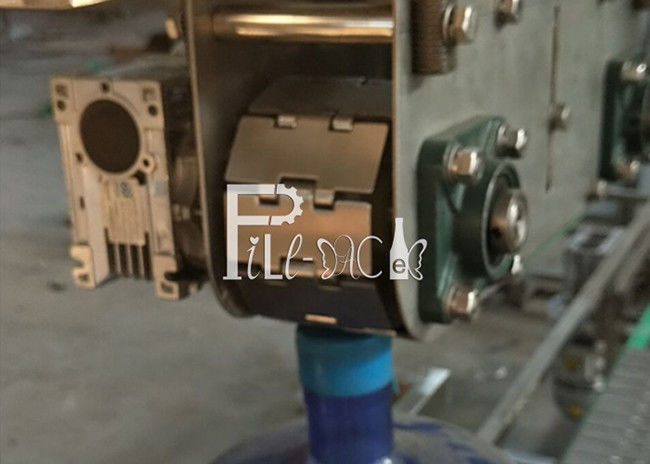

3. When the filling is full, the PLC sends out a control signal, the filling solenoid valve is closed, and the filling is stopped. After the filling is completed, the filled water bottle is sent to the cover of the capping area by the next water bottle and sent to the gland Area, the capping cylinder drives the capping device to press the cap tightly. At this point, a wash irrigation cycle is completed.

Parameters of bucket filling machine:

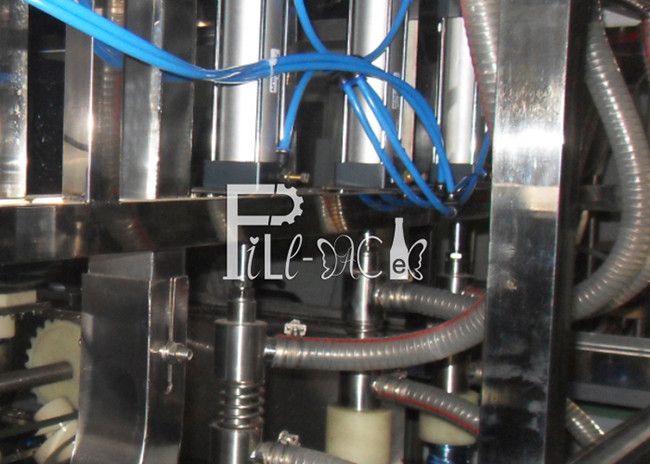

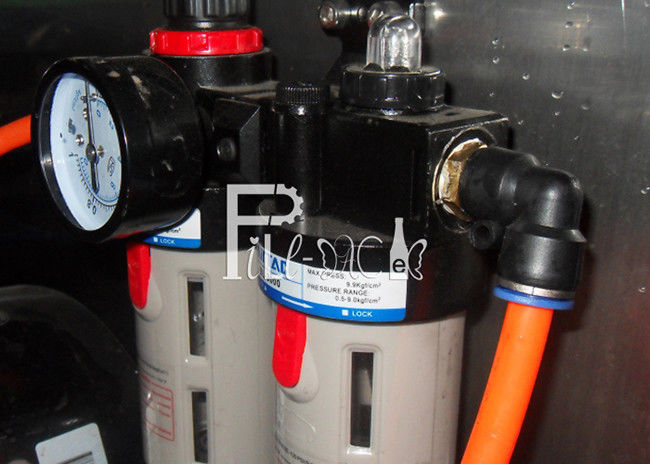

Cylinder: Air tech-Taiwan
Magnetic valve: Air tech-Taiwan

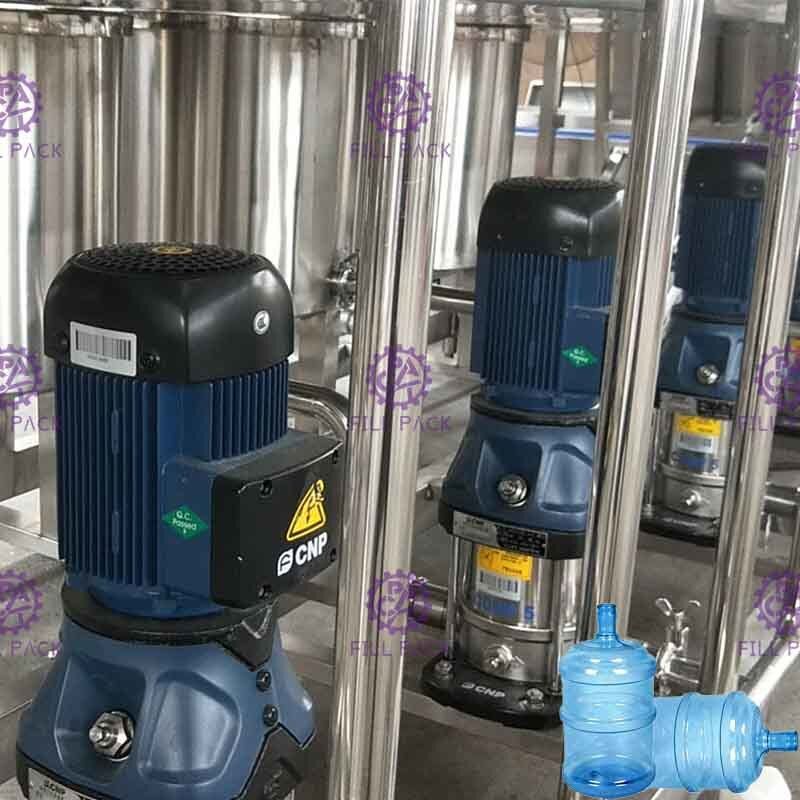

Rising pump-filling pump: Nanfang
PLC: Mitsubishi Japan
Material: SUS304
Power: 5KW
Dimension: 3600*2000*1800mm
Weight: 800kg

Except for the 450BPH, We aslo have the following types:100 type, 200type, 300 type ,600 type, 900 type, 1200 type etc.
