Jar Water 450BPH 5 Gallon Bottle Filling Machine

Minimum Order Quantity : 1 set Price : USD $6000-$8000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-450

Detail Information

Bottle Volume: 10-20L Bottle Capacity: 450BPH
Advantage: Automatic Working Product Name: 5 Gallon Water Filling Machine
Dimension(L*W*H): 4600*2000*1800mm Processing Types: Gravity Pressure Filling
Maximum Filling Volume: 5 Gallons/18.9L Filling Method: Pressure Filling
High Light:

450 BPH 20 Liter Jar Filling Machine


5 Gallon pure water filling machine

Product Description

Description of 450BPH 5 Gallon filling machine with PLC control for jar Water


This 450BPH 5 Gallon filling machine can automatically carry out washing, sterilizing, filling, capping, counting and products discharging. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.


50 barrels per hour (5 gallon) barrel machine

Rated output: 450 barrels per hour (5 gallons/18.9L)
Product: Bottled drinking water
Device model: 5 gallon barrel (Φ270Χ490ΧΦ56)
Maximum filling volume: 5 gallons/18.9L
Bottle cap: 5 gallon smart cap
Bottle flushing medium: chlorine dioxide, product water
Filling method: pressure filling
Conveying method: powered and unpowered conveyor chain


Except for the 450BPH 5 Gallon filling machine, We aslo have the following types:100 type, 200type, 300 type ,600 type, 900 type, 1200 type etc.

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-9000 QGF-1200
Filling heads 1 2 3 4 6 12
Volume(gallon) 3&5 3&5 3&5 3&5 3&5 3&5
Barrel size(mm) 270-490 270-490 270-490 270-490 270-490 270-490
Capacity(b/h) 60-100 250-300 400-450 600-800 800-900 1000-1200
Gas pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Gas consumption(m³/m) 0.37 0.6 0.8 1 1.5 1.8
Moto power (kw) 1.38 3.8 3.8 7.5 9.75 13.5
Rated Voltage(V) 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ

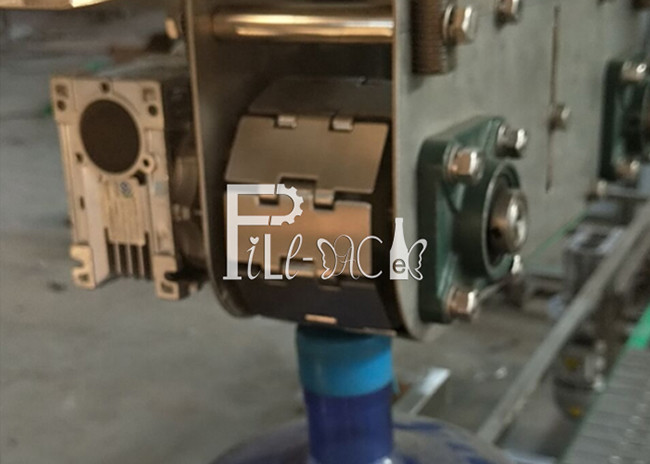

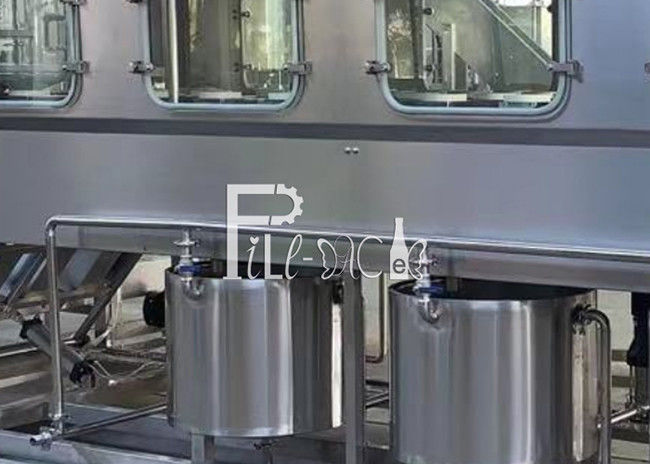

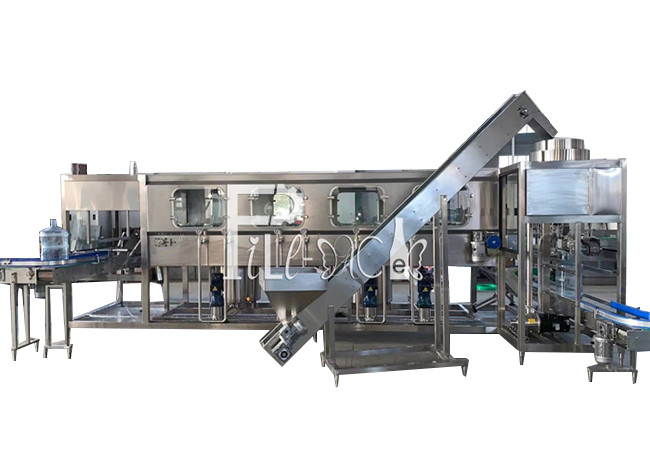

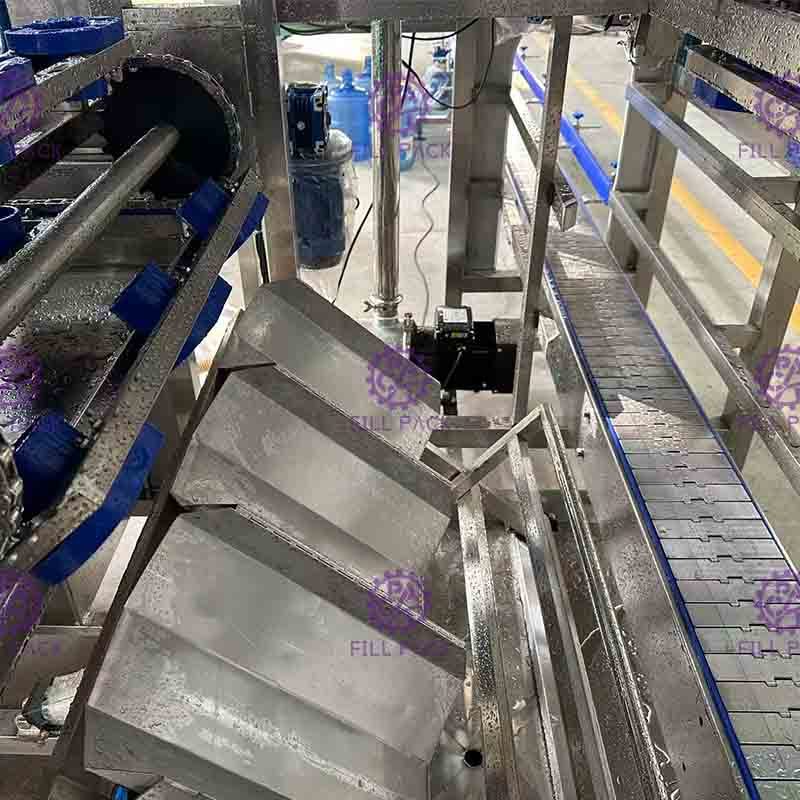

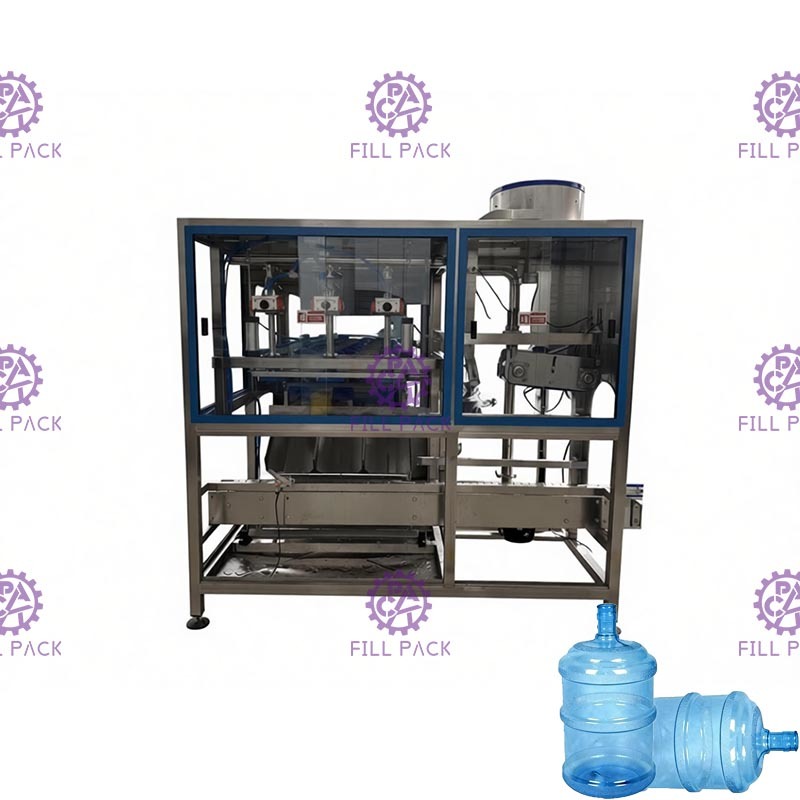

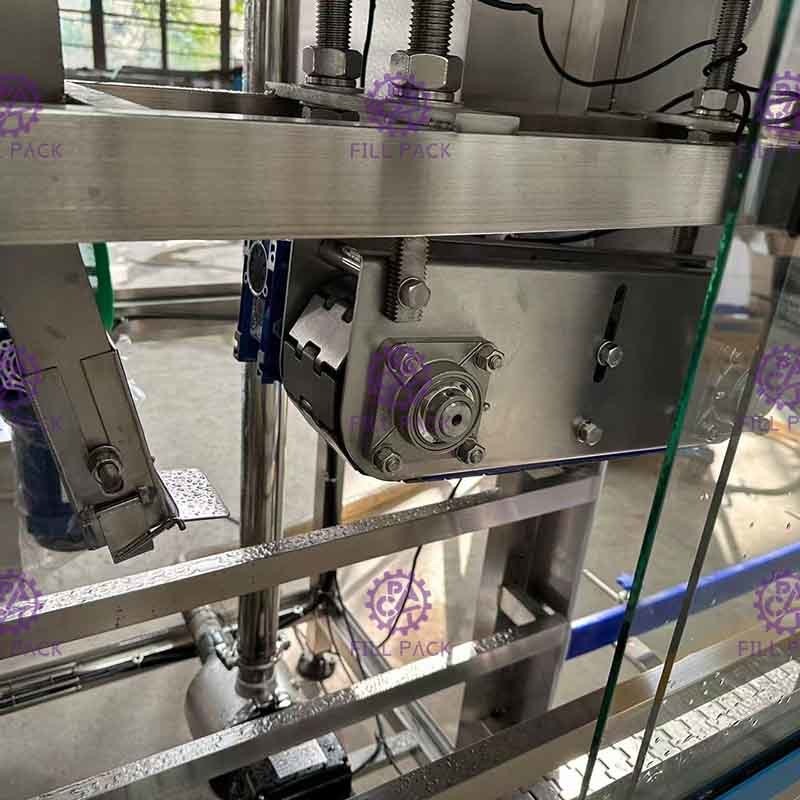

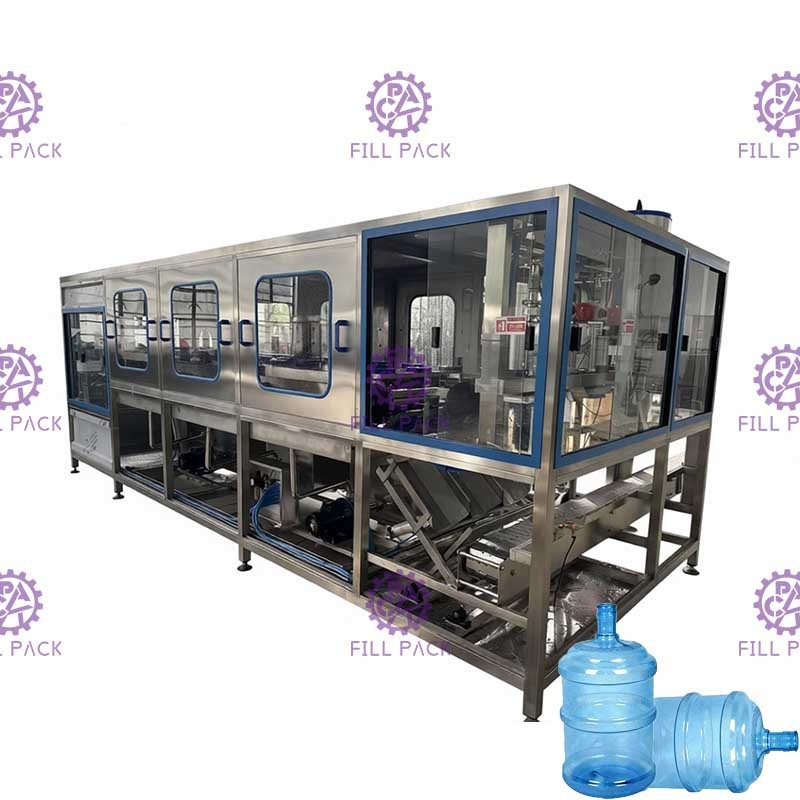

Details of the 450BPH 5 Gallon filling machine:

Jar Water 450BPH 5 Gallon Bottle Filling Machine 0

Jar Water 450BPH 5 Gallon Bottle Filling Machine 1


Our Service
1/ Reliable sample service
1. Send you video of the running machine.
2. Welcome to come to visit our factory, see the detail of machines.
3. Well-trained & experienced staff are to answer all your inquiries in English and Chinese


2/ Reliable Customized service
1. Design the machines according your requirements(material, voltage , filling type, various bottles, specially designed device and so on) .
2. Reliable Professional suggestion, as you know, our company is among the best in the beverage machinery industry and our engineer has experience for many years.
3. Design layout for you and offer you advice about machine orientation or based on the factory area you have.


3/ Reliable After-sales service
1. Deliver the machine and provide the B/L on time to make sure you can get the machine quickly. Also send operating manual and instruction.
2. If you need, our professional engineer team will go to your factory to install the machine and train your employee until they can operate the machine well.
3. Regular after-sales calling to remind customers to add the lubricating oil and maintain machine.
4. The machines from Reliable Machinery has one year warranty for free and totally five years life-long technical support.
5. 24 hours for engineer response
