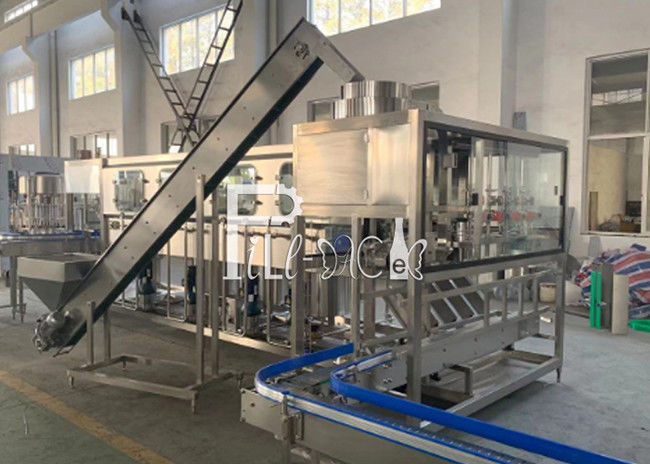

4600*2000*1800mm L Type 5 Gallon Bottle Filling Machine

Minimum Order Quantity : 1 set Price : USD $6000-$8000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-450

Detail Information

Bottle Volume: 3-5gallon Bottle Capacity: 450BPH
Filling Accuracy: 99.9% Function: Bottle Washing Filling Capping
Dimension(L*W*H): 4600*2000*1800mm Quality Guarante: One Year Warranty And Lifetime Service
Weight: 800kg Dimension: 3600*2000*1800mm
High Light:

450BPH Gallon Filling equipment


450 BPH Gallon Filling Line


SS304 5 gallon water filling machine

Product Description

Description of L type Bucket / Gallon bottle filling machine with capacity 450BPH


Gallon bottle filling machine: integrated flushing, filling and capping as one body.
The working process is as follows: two hot liquid spray washing, one drip drying, two normal temperature low concentration liquid spray washing, one drip drying, two recycled water spray washing, one drip drying, two finished product water spray washing, one drip Drying, in this process, the outside of the barrel is also sprayed with the spray head. Through the lifting device, all the spray heads are lifted up, deep into the empty barrel, and the inside of the barrel is sprayed and washed. The empty barrel after cleaning is sent to the filling position through the automatic barrel lowering device, and the filling is carried out. The overflowed water in the process will return to the pure water tank to avoid the waste of finished water. The filled vat is covered and capped by the conveyor chain in sequence.


Parameters of Gallon bottle filling machine:
Power: 5KW
Dimension: 3600*2000*1800mm
Weight: 800kg


Except for the 450BPH Gallon bottle filling machine, We aslo have the following types:100 type, 200type, 300 type ,600 type, 900 type, 1200 type etc.

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-9000 QGF-1200
Filling heads 1 2 3 4 6 12
Volume(gallon) 3&5 3&5 3&5 3&5 3&5 3&5
Barrel size(mm) 270-490 270-490 270-490 270-490 270-490 270-490
Capacity(b/h) 60-100 250-300 400-450 600-800 800-900 1000-1200
Gas pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Gas consumption(m³/m) 0.37 0.6 0.8 1 1.5 1.8
Moto power (kw) 1.38 3.8 5 7.5 9.75 13.5
Rated Voltage(V) 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ

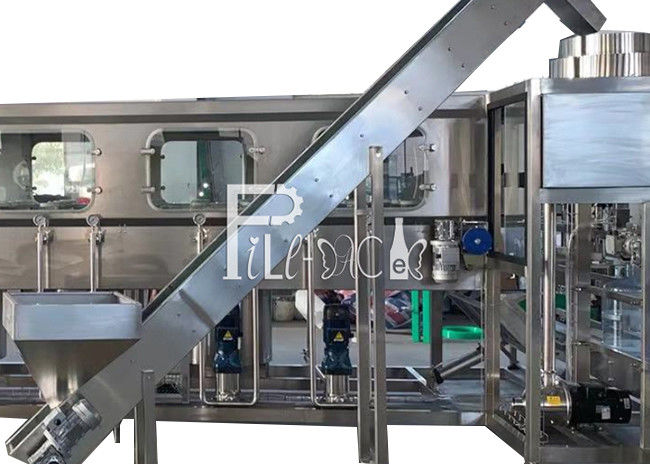

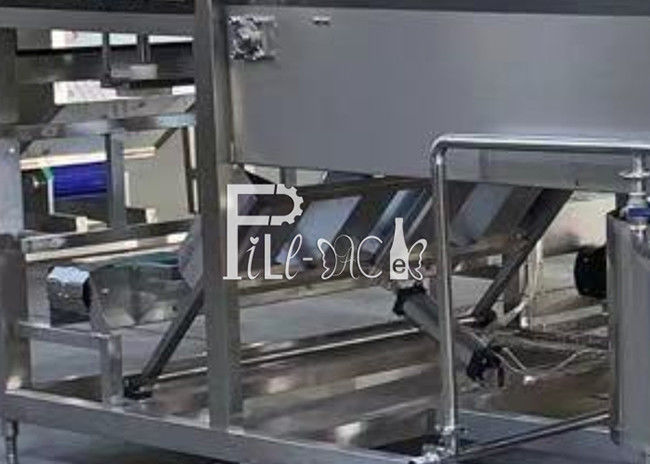

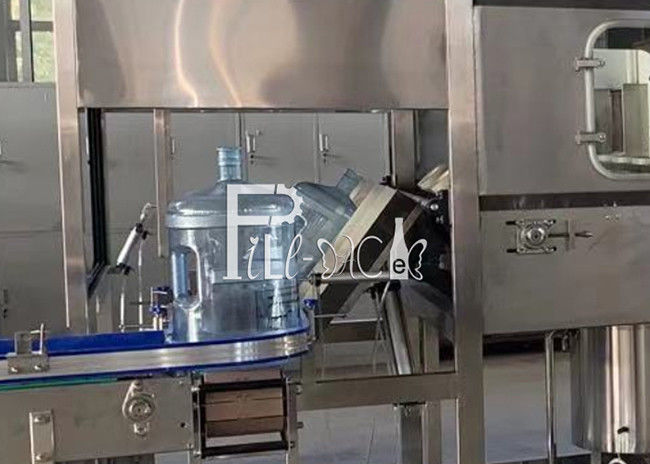

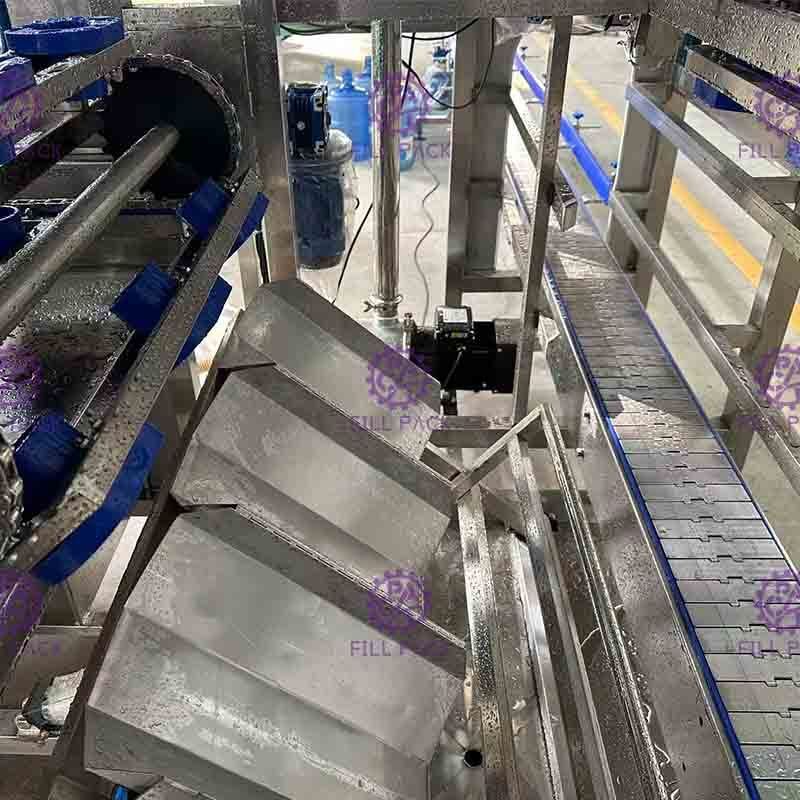

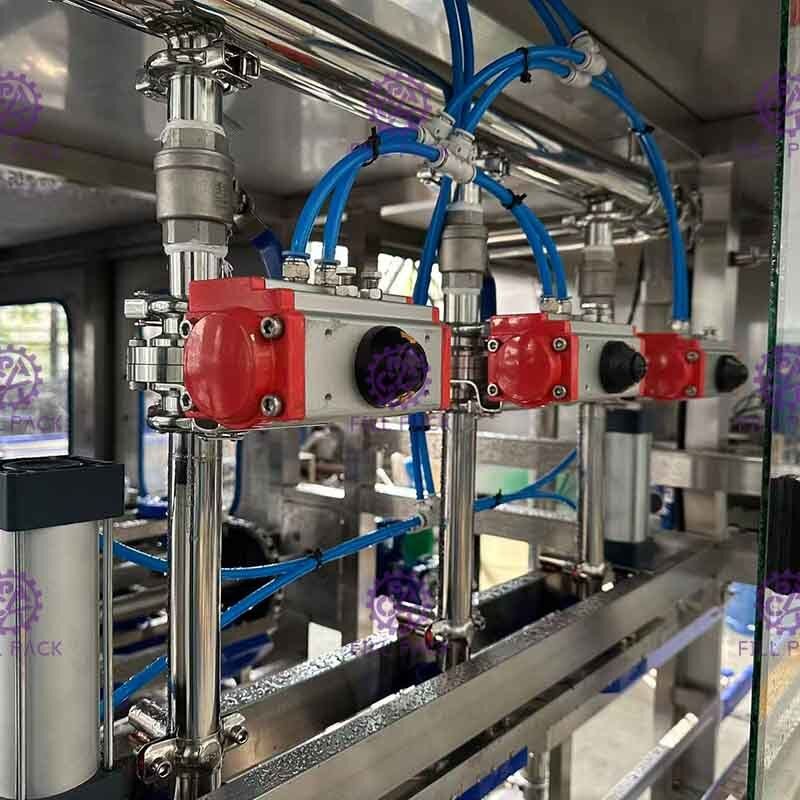

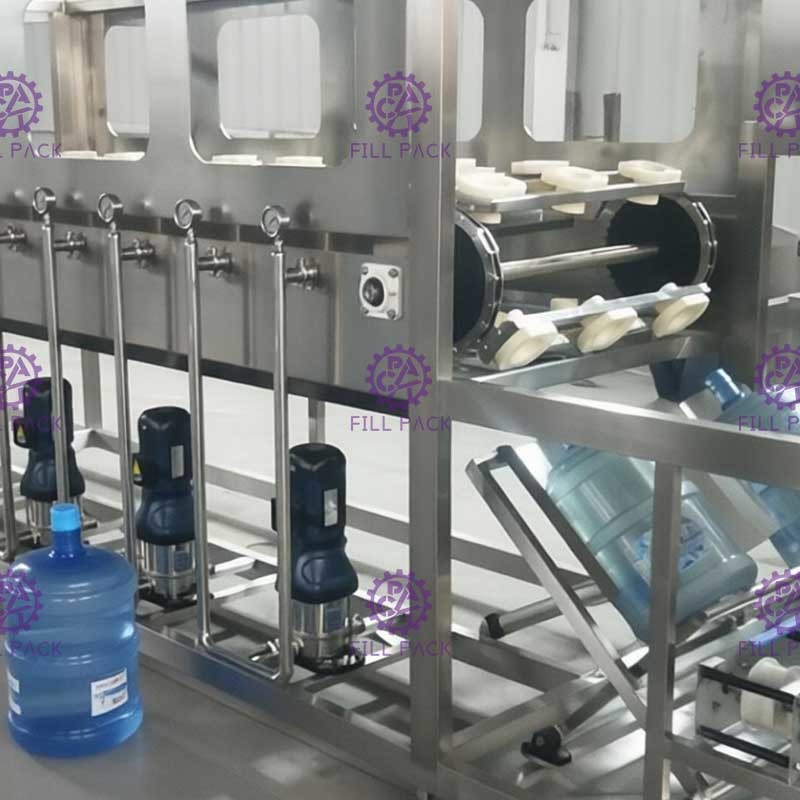

Details of the machine:

4600*2000*1800mm L Type 5 Gallon Bottle Filling Machine 0
