200BPH 5 Gallon 18.9L Water Filling Machine Line System Semi Aurto

Minimum Order Quantity : 1 Sets Price : 6155-7500
Packaging Details : Wooden Case Package Delivery Time : 5-8 Days After Deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 15 Sets per months
Place of Origin: Zhangjiagang,China Brand Name: FillPack
Certification: CE/ISO9001-2008 Model Number: QGF-200

Detail Information
Capacity: 200BPH Filling Heads: 2
Barrel Size: ∅270*490mm Gas Pressure: 0.4-0.6b/h
Gas Consumption: 0.37m3/min Moter Power: 1.75kw
Reted Voltage: 380v50HZ Weight: 880kg
High Light:

Semi Aurto 5Gallon Bottle Filling Machine

,

18.9L Water Filling Machine

,

200BPH 5 Gallon Water Filling Machine

Product Description

The description of  200BPH 5 Gallon Semi-aurto De-capper And Brush Washer Water Filling Machine line system

Product description

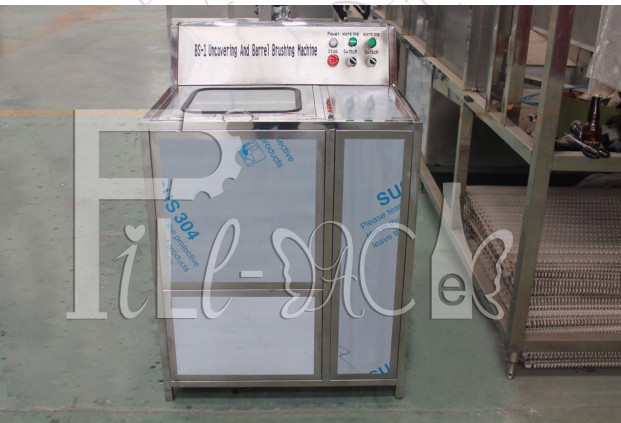

1.Semi-auto de-capper and washer

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker
foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of
the machine-washing position. After the jar putting in, the window need to be closed. Then the washer
will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the
machine will stop when time finish. Heating function could be switched on/ off as client’s needing.

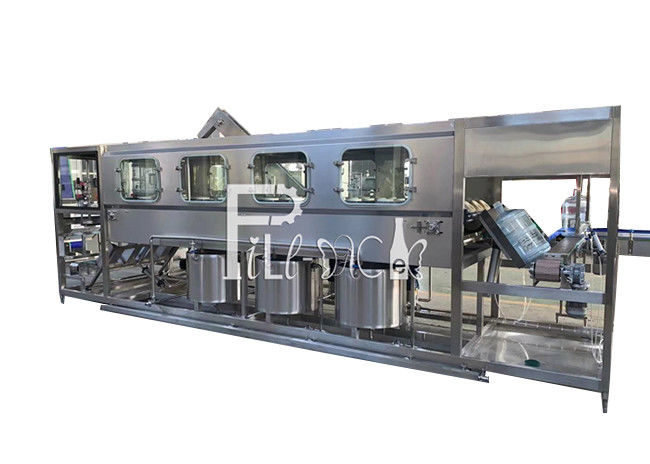

2.Monoblock rinser-filler-capper
water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric
parts are all branded. Air channel system use Air TAC brand product.The machine is with compact
construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a
good choice for factory to choose.
The machine set up do not need plug floor screw,after case taking off,set the machine on the flat
floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set
up well, get in through water pipe, drain pipe and power , air power
Working process:
1. Set empty barrel mouth to barrel seat, empty barrel will be washed during headstand situation,4 working station for barrel inserting.
2.Washing process will be divided into 4 steps:1, hot alkali water washing 2,thimerosal washing；3,clean water washing,4,pure water washing.Every washing step is set to 8S,afterwashing,there will be 10S for dripping.
3. The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.
4 .Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.After filling,the extra water will back to pure water tank by automatic vent,it can reduce waterconsumption.(water tank is not included)
5.After filling process finish,the filled barrel will be pushed to capping position by barrel stop cylinder,the whole process finish till now
Technical parameters
Model QGF-200
Filling heads 2
volume(L) 18.9
Barrel size(mm) ∅270*490
Capicity(b/h) 200
Gas pressure(Mpa) 0.4-0.6
Gas consumption(m3/min) 0.37
Motor power(KW) 1.75
Rated voltage(v) 380v/50HZ
wEIGHT(kg) 800





Product Pictures:

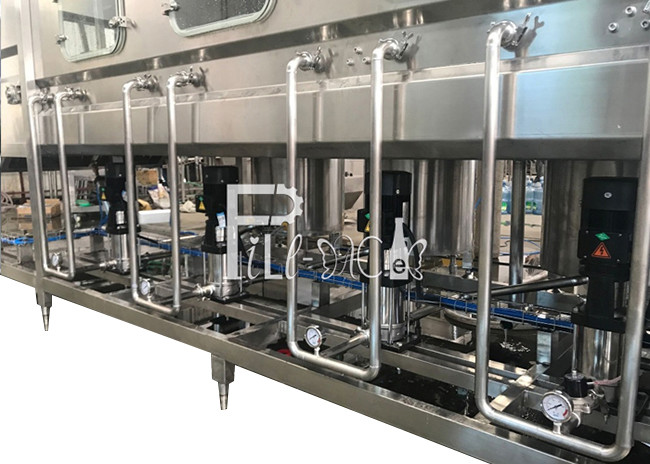

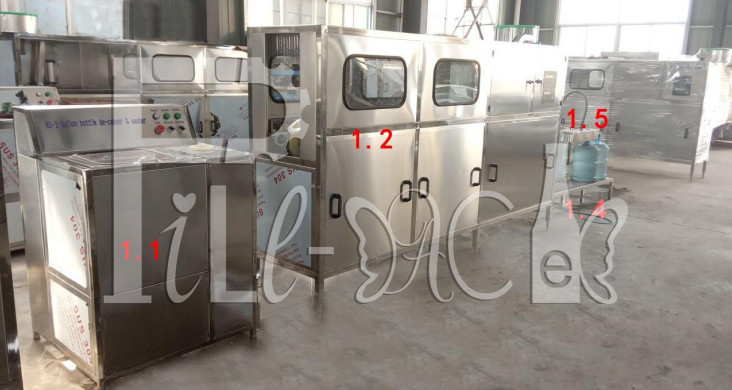

200BPH 5 Gallon 18.9L Water Filling Machine Line System Semi Aurto 0

200BPH 5 Gallon 18.9L Water Filling Machine Line System Semi Aurto 1



200BPH 5 Gallon 18.9L Water Filling Machine Line System Semi Aurto 2
