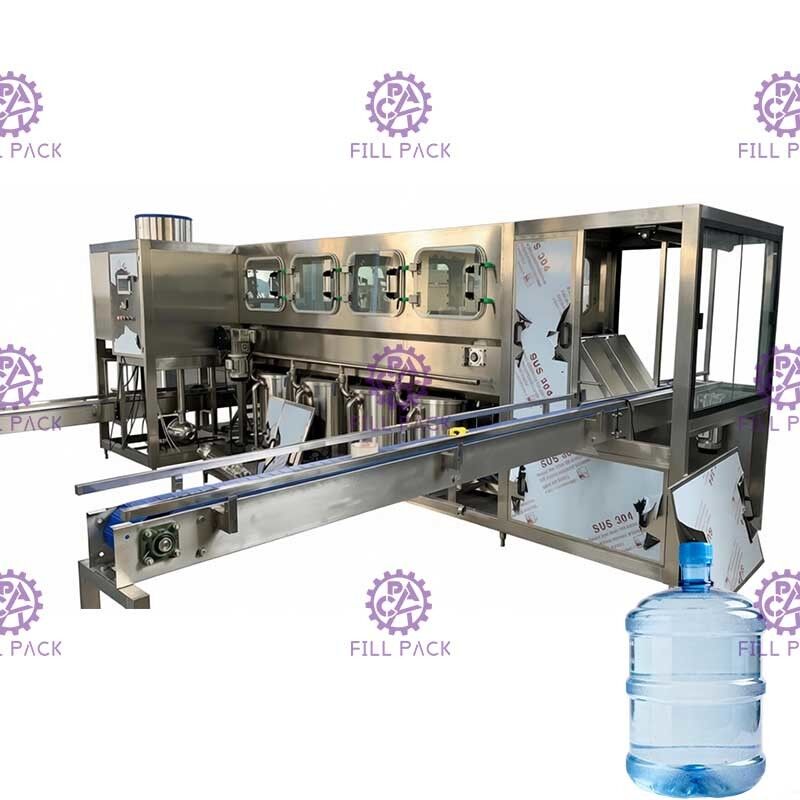

Touch Screen 3 Road 450BPH Jar Water Filling Machine

Minimum Order Quantity : 1 set Price : USD $6000-$8000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-450

Detail Information

Bottle Volume: 10-20L Bottle Capacity: 450BPH
Control: PLC+Touch Screen Feature: High Effective
Dimension(L*W*H): 4600*2000*1800mm Filling Valve: High Speed Valve
Capacity(b/h): 400-450 Rated Voltage: 380V/50HZ
High Light:

10L 450BPH Gallon Filling Line

,

450BPH drinking water filling machine

,

450BPH Jar Water Filling equipment

Product Description

Description of 450BPH jar Water Gallon Filling Machine / equipment with 3 road



The working principle of 450BPH jar Water Gallon Filling Machine​ is:



The empty barrel moves one station with the chain, and the barrel body is rinsed in an inverted shape. There are eight processes in the rinsing process, the first and second alkali washing, the third drip drying, the fourth and fifth disinfectants, the sixth drip drying the seventh backwater washing, the eighth drip drying the ninth pure water rinse, The tenth drip, the eleventh pure water rinse, and the twelfth drip (the process can also be set according to user needs).



The cleaned bucket is turned 90 degrees with the movement of the chain, the empty bucket is pulled out of the bucket base by the bucket cylinder and turned down with the bucket rack, and then the bucket is turned upside down by the pushing cylinder to put the empty bucket in the filling Waiting for filling on the conveyor belt of the machine.



After the sterilized empty barrel reaches the filling position, the filling valve is pushed by the air cylinder to extend into the mouth of the barrel, the filling pump turns on the filling, the filling time is set by the PLC, and the multi-function button on the panel can be used to modify the filling according to the liquid level Time to reach the location.



After the filling is completed, the full barrel is sent to the capping station by the conveyor belt, and the bottle cap is automatically put on the barrel mouth when passing the capping station on the way. After the capping is completed, it is output through the conveyor chain and enters the post-packaging process.



The characteristics of 1

1. Mineral water filling machine adopts advanced man-machine interface control.Quality international famous brand key components.

The characteristics of 2

2. Suspension bottle mouth catcher structure, which can easily change the bottle body type.By changing the valve, it can also be used as a hot filling machine.

The characteristics of 3

3. Spring bottle washer can clean the inside and outside of the bottle

The characteristics of 4

4. High precision pressure water filling mechanism ensures the height and quality of water filling.

The characteristics of 5

5. Magnetic power cover device to ensure sealing and prevent cover damage.

The characteristics of 6

6. Quiet, rotating cover decoder will not damage the cover.Photoelectric sensor detects leaky cover, thus eliminating bottle overflow without cover.

The characteristics of 7

7. High efficiency air purification filter system to ensure high sanitary requirements.

The characteristics of 8 8. Low noise.



Except for the 450BPH jar Water Gallon Filling Machine, We aslo have the following types:100 type, 200type, 300 type ,600 type, 900 type, 1200 type etc.

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-9000 QGF-1200
Filling heads 1 2 3 4 6 12
Volume(gallon) 3&5 3&5 3&5 3&5 3&5 3&5
Barrel size(mm) 270-490 270-490 270-490 270-490 270-490 270-490
Capacity(b/h) 60-100 250-300 400-450 600-800 800-900 1000-1200
Gas pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Gas consumption(m³/m) 0.37 0.6 0.8 1 1.5 1.8
Moto power (kw) 1.38 3.8 3.8 7.5 9.75 13.5
Rated Voltage(V) 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ

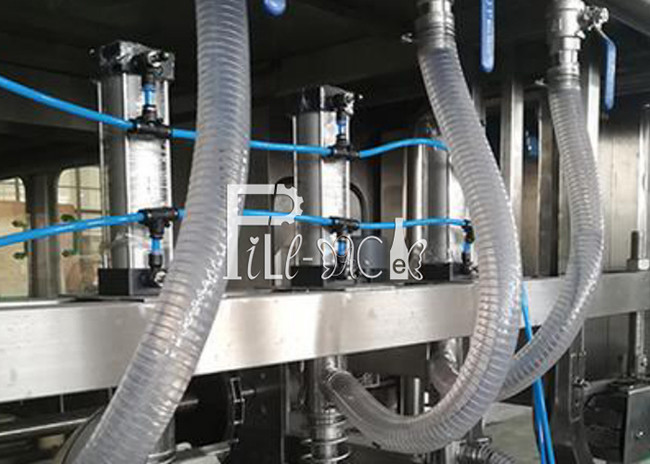

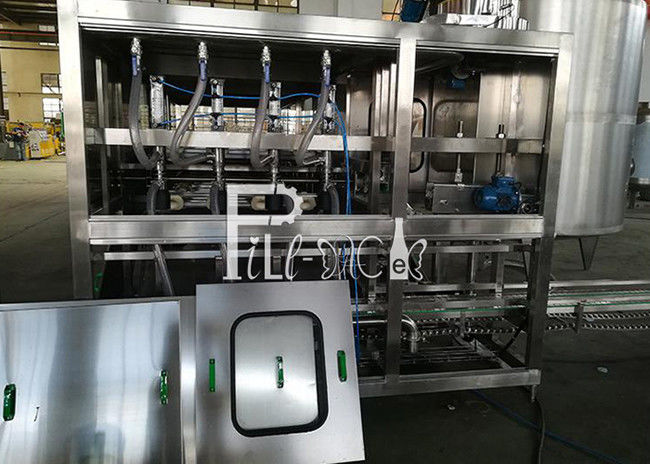

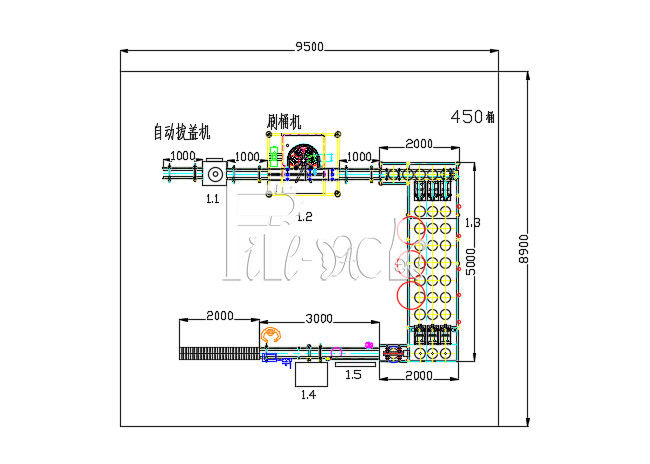

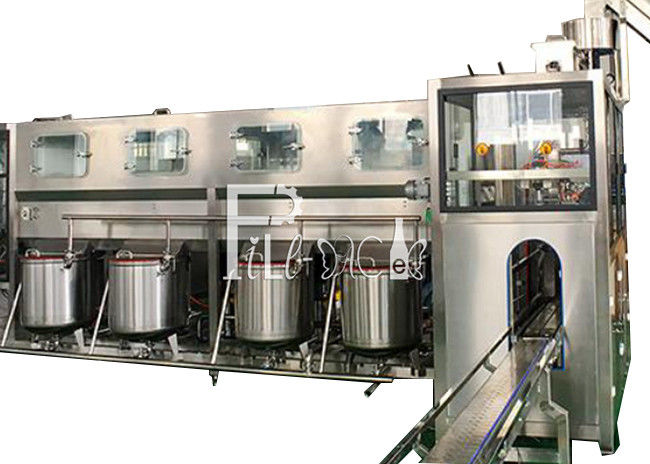

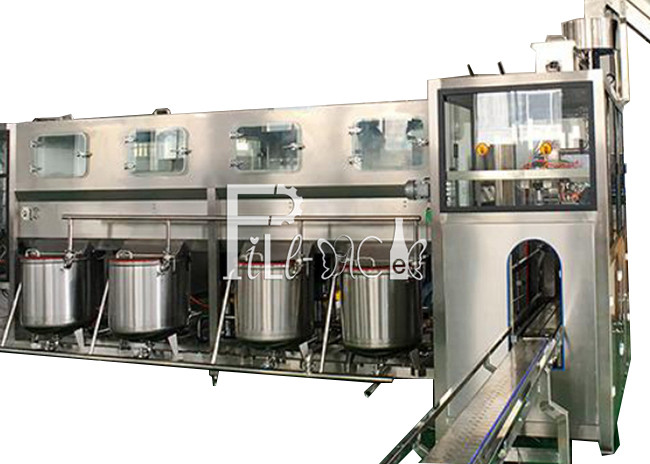

Details of the 450BPH jar Water Gallon Filling Machine:

Touch Screen 3 Road 450BPH Jar Water Filling Machine 0
