Food Safe 450BPH 18.9L Pure Water Filling Machine

Minimum Order Quantity : 1 set Price : USD $6000-$8000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-450

Detail Information

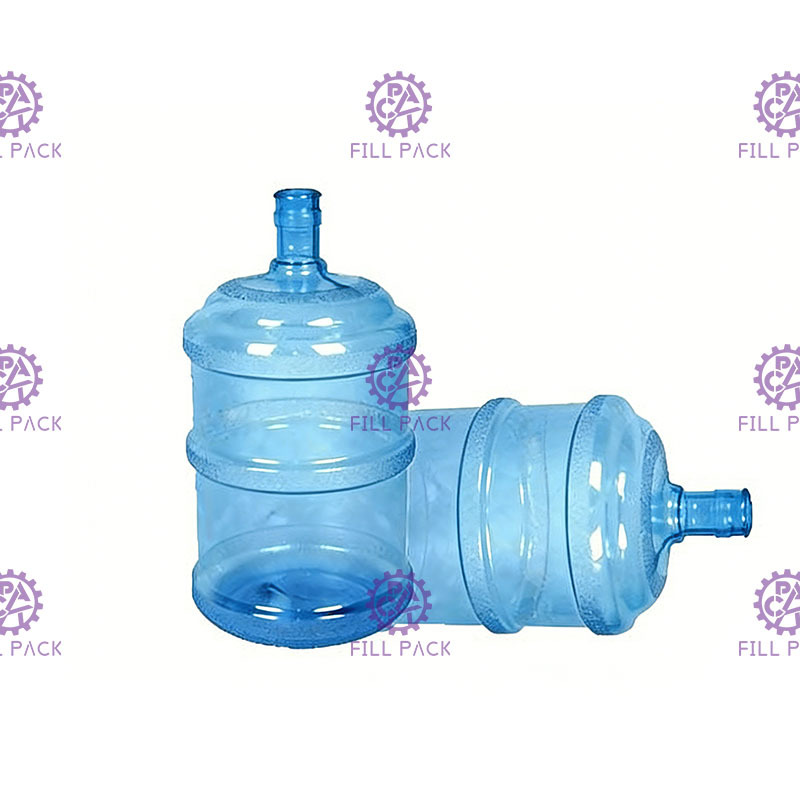

Bottle Volume: 18.9 L Bottle Capacity: 450bottles Per Hour
Filling Accuracy: ±5mm Bottle Type: Customized
Dimension(L*W*H): 3600*2000*1800mm Voltage: 380V 50Hz
Checking Light: 1000*100*450 Conveyor Belt With Motor: 10m+2 Motors
High Light:

18.9L pure water filling machine

,

450BPH Gallon filling line

,

18.9L Barrel Water Filling Machine

Product Description

Description of 450BPH Barrel / Bucket / Gallon filling line for 18.9L bottle





Equipment list of Gallon filling line:

1.1 Automatic De-capper BG-1 600*600*2000 1set
1.2 Rotary external washer RXT-3 1800*1550*1750 1set
1.3 L type Washer/Filler/Capper with auto bottle loading WFC-450H 4600*2000*1800 1set
1.4 Heat Shrinking Machine / 800*600*1200 1set
1.5 Checking Light CL-1 1000*100*450 1pc
1.6 Conveyor Belt with Motor / 10m+2 motors 1set
1.7 Code printer OH-338 / 1set

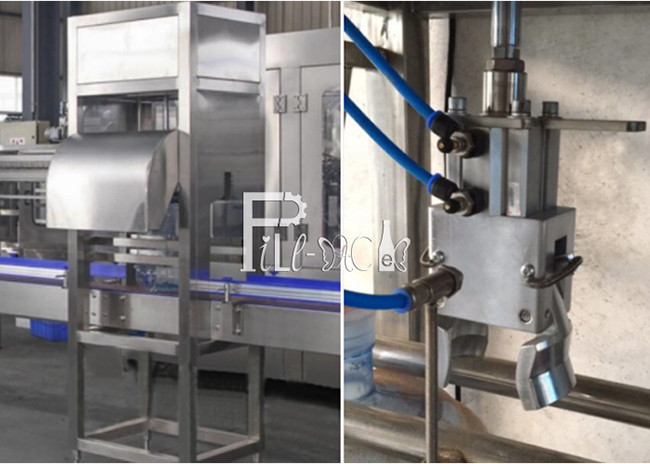

1, Automatic De-capper:

Parameters
Dimension
650*800*1600mm
Weight
100kg

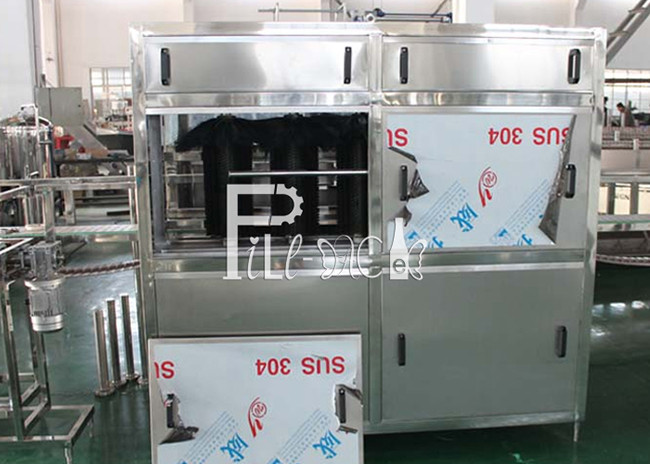

2, Rotary external washer
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

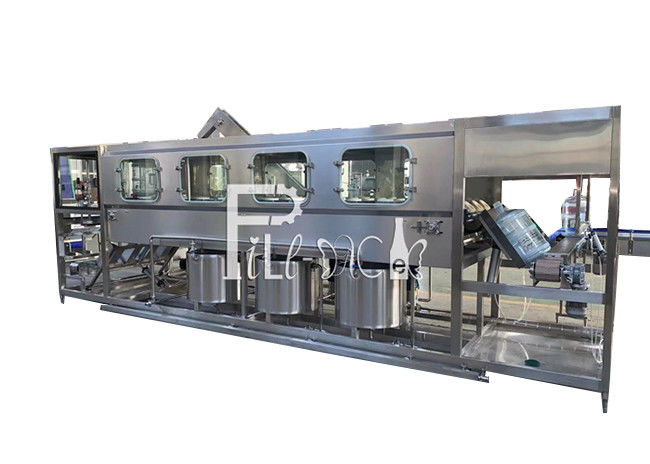

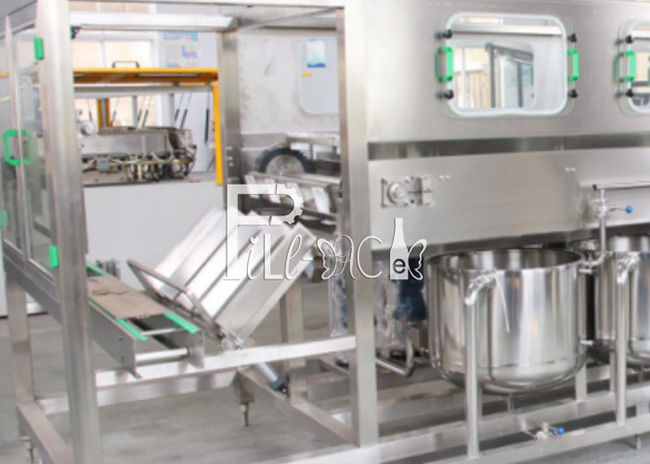

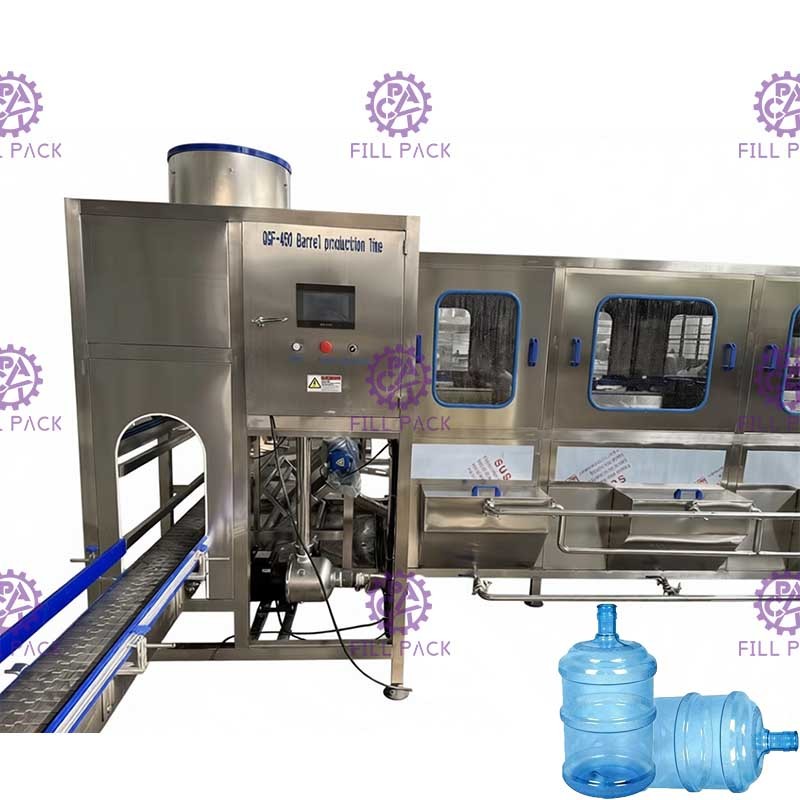

3, Monoblock gallon rinser-filler-capper

The 5 Gallon filling equipment set up do not need plug floor screw, after case taking off, set the machine on the flat floor, and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power, air power.



Parameters:

Material: SUS304

Power: 5KW

Dimension: 3600*2000*1800mm

Weight: 800kg



4, Steam shrink Machine


5, Ink jet code printer

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-9000 QGF-1200
Filling heads 1 2 3 4 6 12
Volume(gallon) 3&5 3&5 3&5 3&5 3&5 3&5
Barrel size(mm) 270-490 270-490 270-490 270-490 270-490 270-490
Capacity(b/h) 60-100 250-300 400-450 600-800 800-900 1000-1200
Gas pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Gas consumption(m³/m) 0.37 0.6 0.8 1 1.5 1.8
Moto power (kw) 1.38 3.8 3.8 7.5 9.75 13.5
Rated Voltage(V) 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight(kg) 680 1500 2100 3000 3500 4500



Our Services
1. Installation and commissioning services
The full-time service engineer with many years of relevant experience is responsible for the installation and commissioning of the equipment to the qualified, and the acceptance equipment enters the production state.

2. Adequate parts library
In order to reduce the cost of the customer's parts inventory and provide better and faster service, the company has prepared sufficient equipment parts and components as inventory, so you can quickly repair or maintain the required parts within one year. provide.

3. Professional technical training
In order to ensure that your technicians can correctly understand the performance, operation and maintenance procedures of the equipment, in addition to the normal installation site technical training, we can provide users with on-site training and operation conditions to other similar production plants, and can also be held in the factory. All kinds of professional training and training will help you master technology faster and more comprehensively.
